AOP Title

?


Oxidation of iron in hemoglobin leading to hematotoxicity

Short name:

?

Hemoglobin oxidation leading to hematotoxicity

Authors

?


Mitchell Wilbanks, Kurt Gust, Youping Deng, Sharon Meyer, and Edward Perkins

Point of Contact: Mitchell Wilbanks, Mitchell.S.Wilbanks@usace.army.mil

Point of Contact

?


Mitchell S. Wilbanks

Contributors

?


  • Mitchell S. Wilbanks

Status

?

Author status OECD status OECD project SAAOP status
Under development: Not open for comment. Do not cite Under Development 1.16 Included in OECD Work Plan


This AOP was last modified on December 03, 2016 16:37

?

Revision dates for related pages

Page Revision Date/Time
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leading to oxidation of heme iron(II) in hemoglobin to iron(III) December 03, 2016 16:37
Altered regulation, Alpha hemoglobin September 16, 2017 10:14
Propagation, Oxidative stress September 16, 2017 10:14
Damaging, Red blood cells; hemolysis September 16, 2017 10:14
Formation, Formation of hemoglobin adducts September 16, 2017 10:14
Down Regulation, Gulcose-6-phosphate dehydrogenase September 16, 2017 10:14
Increase, RBC congestion in liver September 16, 2017 10:14
Increase, Liver and splenic hemosiderosis September 16, 2017 10:14
N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number September 16, 2017 10:14
N/A, Cyanosis occurs December 03, 2016 16:33
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Propagation, Oxidative stress December 03, 2016 16:37
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Damaging, Red blood cells; hemolysis December 03, 2016 16:37
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Formation, Formation of hemoglobin adducts December 03, 2016 16:37
Damaging, Red blood cells; hemolysis leads to Increase, RBC congestion in liver December 03, 2016 16:37
Damaging, Red blood cells; hemolysis leads to N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number December 03, 2016 16:37
Damaging, Red blood cells; hemolysis leads to Increase, Liver and splenic hemosiderosis December 03, 2016 16:37
Propagation, Oxidative stress leads to Down Regulation, Gulcose-6-phosphate dehydrogenase December 03, 2016 16:37
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Altered regulation, Alpha hemoglobin December 03, 2016 16:37
N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number leads to N/A, Cyanosis occurs December 03, 2016 16:37
Increase, RBC congestion in liver leads to N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number December 03, 2016 16:37
Propagation, Oxidative stress leads to Damaging, Red blood cells; hemolysis December 03, 2016 16:37
Increase, Liver and splenic hemosiderosis leads to N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number December 03, 2016 16:37

Abstract

?


Studies have shown that aniline, 2,4,6-trinitrotoluene (TNT) and 2,4-dinitrotoluene (2,4-DNT) are converted to the reactive metabolite and form free radicals leading to oxidization of heme Iron(II) in hemoglobin to Iron(III), a molecular initiating event. Damage then occurs to red blood cells (RBCs) and methemoglobinemia ensues which is characterized by reduced RBCs, hemoglobin concentration, and Heinz body formation (Ellis et al. 1985, Lee et al. 1976, 1978, Hazleton Laboratories 1977, 1982, Kozuka et al. 1978, 1979, Bolt et al. 2006). The adverse outcome due to such hematological effects is cyanosis with possible death if methemoglobin levels become severe. Hemoglobin adducts are also formed by these chemicals (Sabbioni et al. 2006). Sinusoidal congestion was noted in animals who were exposed to 2,4-DNT or 2,6-DNT (Deng et al. 2011) while hemosiderosis was reported in another study involving DNT (Lee et al. 1978) and in aniline studies. A compensatory response to possible anemic effects has been observed in animals including increased peripheral reticulocytes (Deng et al. 2011) and induction of genes associated with heme biosynthesis (CPOX and UROS) (Rawat et al. 2010). Oxidative stress is also induced upon this interaction with the RBC which may lead to DNA damage and cell death to not only the RBC but other cells such as hepatocytes (Deng et al. 2011). Glucose-6-phosphate dehydrogenase (G6pd) was found to be significantly down-regulated in animals treated with 2,4-DNT for 14 d which leads to decreased levels of NADPH, a coenzyme used to properly maintain glutathione levels and therefore protect cells, especially RBC, from oxidative damage (Wilbanks, et al., unpublished observations). In response to increased oxidative stress, protective mechanisms such as the Nrf2 mediated oxidative stress response may be induced (Deng et al. 2011). While this AOP specifically shows effects of 2,4-DNT and 2,6-DNT, the principal adverse pathways of oxidation of Fe(II) to Fe(III) leading to methemoglobinemia and its downsteam effects and oxidative stress formation leading to its downstream effects are shared with the more well characterized structurally similar compound group of N-hydroxyl anilines.


Background (optional)

?


This optional section should be used to provide background information for AOP reviewers and users that is considered helpful in understanding the biology underlying the AOP and the motivation for its development. The background should NOT provide an overview of the AOP, its KEs or KERs, which are captured in more detail below.

Instructions

To add background information, click Edit in the upper right hand menu on the AOP page. Under the “Background (optional)” field, a text editable form provides ability to edit the Background.  Clicking ‘Update AOP’ will update these fields.


Summary of the AOP

?



Stressors

?

Describes stressors known to trigger the MIE and provides evidence supporting that initiation. This will often be a list of prototypical compounds demonstrated to interact with the target molecule in the manner detailed in the MIE description to initiate a given pathway (e.g., 2,3,7,8-TCDD as a prototypical AhR agonist; 17α-ethynyl estradiol as a prototypical ER agonist). However, depending on the information available, this could also refer to chemical categories (i.e., groups of chemicals with defined structural features known to trigger the MIE). It can also include non-chemical stressors such as genetic or environmental factors. The evidence supporting the stressor will typically consist of a brief description and citation of literature showing that particular stressors can trigger the MIE.

Instructions

To add a stressor associated with an AOP, under “Summary of the AOP” click ‘Add Stressor’ will bring user to the “New Aop Stressor” page. In the Name field, user can search for stressor by name. Choosing a stressor from the resulting drop down populates the field. Selection of an Evidence level from the drop down menu and add any supporting evidence in the text box. Click ‘Add stressor’ to add the stressor to the AOP page.


Molecular Initiating Event

?

Title Short name
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leading to oxidation of heme iron(II) in hemoglobin to iron(III) N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin

Key Events

?

Title Short name
Altered regulation, Alpha hemoglobin Altered regulation, Alpha hemoglobin
Propagation, Oxidative stress Propagation, Oxidative stress
Damaging, Red blood cells; hemolysis Damaging, Red blood cells; hemolysis
Formation, Formation of hemoglobin adducts Formation, Formation of hemoglobin adducts
Down Regulation, Gulcose-6-phosphate dehydrogenase Down Regulation, Gulcose-6-phosphate dehydrogenase
Increase, RBC congestion in liver Increase, RBC congestion in liver
Increase, Liver and splenic hemosiderosis Increase, Liver and splenic hemosiderosis
N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number

Adverse Outcome

?

Title Short name
N/A, Cyanosis occurs N/A, Cyanosis occurs

Relationships Between Two Key Events (Including MIEs and AOs)

?

Title Directness Evidence Quantitative Understanding
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Propagation, Oxidative stress Directly leads to Moderate
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Damaging, Red blood cells; hemolysis Directly leads to Strong
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Formation, Formation of hemoglobin adducts Directly leads to Strong
Damaging, Red blood cells; hemolysis leads to Increase, RBC congestion in liver Directly leads to Moderate
Damaging, Red blood cells; hemolysis leads to N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number Directly leads to Strong
Damaging, Red blood cells; hemolysis leads to Increase, Liver and splenic hemosiderosis Directly leads to Strong
Propagation, Oxidative stress leads to Down Regulation, Gulcose-6-phosphate dehydrogenase Directly leads to Weak
N/A, Parent compound is converted to the reactive metabolite and forms free radicals leadin leads to Altered regulation, Alpha hemoglobin Indirectly leads to Weak
N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number leads to N/A, Cyanosis occurs Directly leads to Strong
Increase, RBC congestion in liver leads to N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number Directly leads to Moderate
Propagation, Oxidative stress leads to Damaging, Red blood cells; hemolysis Directly leads to Strong
Increase, Liver and splenic hemosiderosis leads to N/A, Methemoglobinemia, decreased hemoglobin, hematocrit, red blood cell number Directly leads to Moderate

Network View

?



Life Stage Applicability

?

Is the AOP specific to certain tissues, life stages / age classes? Indicate if there are critical life stages, where exposure must occur, to results in the final adverse effect. Or specify if there are key events along the pathway which are dependent on the life stage although the AOP is known to be initiated regardless of life stage. Indicate also if the AOP is associated also with age- or sex-dependence.

Instructions

To add a life stage term to an AOP page, under “Life Stage Applicability” select ‘add life stage term.’ User will be directed to a page entitled “Add Life Stage to AOP.” This page will list the AOP name, with drop down menu options to select a Life Stage term and Evidence. Evidence can be left blank and added later.

To edit a life stage term on an AOP page, under “Life Stage Applicability” click ‘Edit.’  User will be directed to a page entitled “Editing AOP Life Stage” where they can edit the Evidence field using the drop down menu. Clicking ‘Update Aop life stage’ will update the Evidence field and redirect the user back to the AOP page.


Taxonomic Applicability

?

Term Scientific Term Evidence Link
Mus musculus Mus musculus Strong NCBI
Rattus norvegicus Rattus norvegicus Strong NCBI

Sex Applicability

?

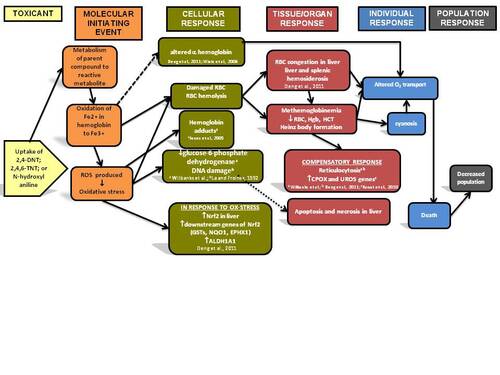

Graphical Representation

?
