AOP: 508
Title
Nrf2 inhibition leading to vascular disrupting effects through activating HIF1α, Semaphorin 6A, and Dll4-Notch pathway
Short name

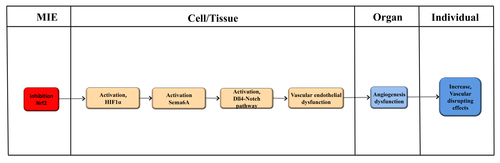

Graphical Representation
Point of Contact
Contributors
- Yanhong Wei
Coaches
OECD Information Table
OECD Project # | OECD Status | Reviewer's Reports | Journal-format Article | OECD iLibrary Published Version |
---|---|---|---|---|
This AOP was last modified on August 28, 2023 06:42
Revision dates for related pages
Page | Revision Date/Time |
---|---|
NFE2/Nrf2 repression | June 02, 2017 16:27 |
Activation, HIF1α | August 20, 2023 07:16 |
Activation Sema6A | August 20, 2023 07:17 |
Activation, Dll4-Notch pathway | August 20, 2023 07:18 |
increased,Vascular endothelial dysfunction | September 01, 2021 20:37 |
Increase, Vascular disrupting effects | August 19, 2023 20:12 |
Angiogenesis dysfunction | August 28, 2023 05:00 |
NFE2/Nrf2 repression leads to Activation, HIF1α | August 20, 2023 07:20 |
Activation, HIF1α leads to Activation Sema6A | August 20, 2023 07:20 |
Activation Sema6A leads to Activation, Dll4-Notch pathway | August 20, 2023 07:21 |
Activation, Dll4-Notch pathway leads to increased,Vascular endothelial dysfunction | August 20, 2023 07:21 |
increased,Vascular endothelial dysfunction leads to Angiogenesis dysfunction | August 28, 2023 05:01 |
Angiogenesis dysfunction leads to Increase, Vascular disrupting effects | August 28, 2023 05:03 |
Abstract
CVDs are the leading cause of morbidity and mortality worldwide. Vascular network is an important channel of chemical’s ADME process and an essential target of toxic effect. Therefore, it is necessary to elucidate the AOP of vascular disrupting effects. Past studies showed that nuclear factor (erythroid-derived 2)-like 2 (Nrf2) inhibition could regulate the response of key events and the activation of downstream pathways including the activation of HIF1α, activation of Sema6A, activation of Dll4-Notch pathway, vascular endothelial dysfunction and Angiogenesis disfunction, which ultimately leads to vascular disrupting effects. Collectively, As part of an integrated assessment of toxicity, this AOP can identify useful information for assessing adverse outcomes relevant to risk assessment and efficient use of resources for validation through predictive models related to vascular toxicity. In future, AOP-based computer models that simulate vascular disrupting effects can usher-in new virtual screening techniques to predict what might happen to the vascular when exposed to chemicals across different dose-time-stage scenarios.
AOP Development Strategy
Context
This AOP focuses on the vascular disrupting effect via inhibiting the Nrf2-signaling pathway. The abnormal expression of Nrf2 plays an important role in the vasculogenesis and angiogenesis. The postulated molecular initiating event (MIE) for this AOP may be invoked by effects on the inhibition of Nrf2. Downstream key events (KE) include activation, HIF1α, activation Sema6A, activation, Dll4-Notch pathway, vascular endothelial dysfunction. KE relationships (KERs) leading to Angiogenesis dysfunction. The severity of adverse outcomes (vascular disrupting effects) would ultimately vary by anatomical region, organ system, and physiological state when an MIE is invoked. Furthermore, to better elucidate the AOP of vascular disrupting effect, the established AOPs are included.
Strategy
Summary of the AOP
Events:
Molecular Initiating Events (MIE)
Key Events (KE)
Adverse Outcomes (AO)
Type | Event ID | Title | Short name |
---|
MIE | 1417 | NFE2/Nrf2 repression | NFE2/Nrf2 repression |
KE | 2162 | Activation, HIF1α | Activation, HIF1α |
KE | 2163 | Activation Sema6A | Activation Sema6A |
KE | 2164 | Activation, Dll4-Notch pathway | Activation, Dll4-Notch pathway |
KE | 1928 | increased,Vascular endothelial dysfunction | increased,Vascular endothelial dysfunction |
KE | 2181 | Angiogenesis dysfunction | Angiogenesis dysfunction |
AO | 2161 | Increase, Vascular disrupting effects | Increase, Vascular disrupting effects |
Relationships Between Two Key Events (Including MIEs and AOs)
Title | Adjacency | Evidence | Quantitative Understanding |
---|
NFE2/Nrf2 repression leads to Activation, HIF1α | adjacent | High | High |
Activation, HIF1α leads to Activation Sema6A | adjacent | High | Moderate |
Activation Sema6A leads to Activation, Dll4-Notch pathway | adjacent | Moderate | Moderate |
Activation, Dll4-Notch pathway leads to increased,Vascular endothelial dysfunction | adjacent | High | High |
increased,Vascular endothelial dysfunction leads to Angiogenesis dysfunction | adjacent | High | High |
Angiogenesis dysfunction leads to Increase, Vascular disrupting effects | adjacent | High | High |
Network View
Prototypical Stressors
Life Stage Applicability
Life stage | Evidence |
---|---|
All life stages | Moderate |
Taxonomic Applicability
Sex Applicability
Sex | Evidence |
---|---|
Mixed | High |
Overall Assessment of the AOP
The biological plausibility of KERs is strong due to the available mechanistic evidence present in studies from a wide variety of taxa. Support for the essentiality of the key events can be obtained from a wide diversity of taxonomic groups, with lab rats, mice, and cell lines. Wei et al provided some evidence such as antagonism, knock-outs, or knock-ins to probe the necessity of MIE and KE. Furthermore, the AOP can be anticipated based on broader chemical-specific knowledge. More studies are needed to explore the dose concordance, incidence concordance, and temporal concordance.
Domain of Applicability
- Life Stage Applicability
The AOPs are not life stage specific
- Taxonomic Applicability
Term |
Scientific Term |
Evidence |
Links |
Human |
Homo sapiens |
Low |
https://www.ncbi.nlm.nih.gov/Taxonomy/Browser/wwwtax.cgi?mode=Info&id=9606 |
Mouse |
Mus musculus |
High |
https://www.ncbi.nlm.nih.gov/Taxonomy/Browser/wwwtax.cgi?mode=Info&id=10090 |
Zebrafish |
Danio rerio |
High |
https://www.ncbi.nlm.nih.gov/Taxonomy/Browser/wwwtax.cgi?mode=Info&id=7955 |
- Sex Applicability
Mixed
Essentiality of the Key Events
The biological plausibility of KERs is strong due to the available mechanistic evidence present in studies from a wide variety of taxa. Nrf2 inhibition causes a variety of cellular responses. The essentiality of KERs is strong due to many evidence from different controlled experimental designs with controls. Support for the essentiality of the key events can be obtained from a wide diversity of taxonomic groups, with lab mice, cell lines, and zebrafish. The empirical support of KERs is largely found in toxicological studies derived from reference chemicals with dose-response and temporal concordance assessed.
Evidence Assessment
The QWOE approach is an analytical method that utilizes causality criteria to assess the evidence-supported postulated AOP[4]. Firstly, the hypothesis of action was presented and the quantitative evaluation of evidence ranging from no evidence (0) to strong for each category (3, strong and −3, strong counter) utilizing the evolved MIEs, KEs, and KERs. Subsequently, a ranked importance-based numerical weight was assigned to Bradford Hill causal considerations, and the composite score and confidence score for MIEs, KEs, and entire AOP were evaluated.
Assigned weight | Qualitative rating | |||||
MIE | KE1 | KE2 | KE3 | KE4 | ||
Biological plausibility | Some in vivo and in vitro evidence suggest that the chemicals can cause the vascular toxicity | |||||
Essentiality empirical support | 0.4 | 1 | 1 | 1 | 1 | 1 |
Dose and incidence concordance | 0.2 | 3 | 3 | 3 | 2 | 3 |
Empirical support temporal concordance | 0.2 | 3 | 3 | 3 | 2 | 3 |
Consistency across test systems | 0.1 | 3 | 3 | 3 | 2 | 3 |
Analogy mutiple studies support KE and KER | 0.1 | 3 | 3 | 3 | 3 | 3 |
Score | 1 | 2.2 | 2.2 | 2.2 | 1.7 | 2.2 |
AOP Score | 0.7 |
Known Modulating Factors
Modulating Factor (MF) | Influence or Outcome | KER(s) involved |
---|---|---|
Quantitative Understanding
Optional field to provide quantitative weight of evidence descriptors.
Considerations for Potential Applications of the AOP (optional)
References
[1] ELLIS-HUTCHINGS R G, SETTIVARI R S, MCCOY A T, et al. Embryonic vascular disruption adverse outcomes: Linking high throughput signaling signatures with functional consequences [J]. Reproductive toxicology (Elmsford, NY), 2017, 70: 82-96.
[2] KLEINSTREUER N C, JUDSON R S, REIF D M, et al. Environmental impact on vascular development predicted by high-throughput screening [J]. Environ Health Perspect, 2011, 119(11): 1596-603.
[3] LIND L, ARAUJO J A, BARCHOWSKY A, et al. Key Characteristics of Cardiovascular Toxicants [J]. Environ Health Perspect, 2021, 129(9): 95001.
[4] BECKER R A, DELLARCO V, SEED J, et al. Quantitative weight of evidence to assess confidence in potential modes of action [J]. Regulatory toxicology and pharmacology : RTP, 2017, 86: 205-20.
[5] HE F, RU X, WEN T. NRF2, a Transcription Factor for Stress Response and Beyond [J]. International journal of molecular sciences, 2020, 21(13).
[6] REY S, SEMENZA G L. Hypoxia-inducible factor-1-dependent mechanisms of vascularization and vascular remodelling [J]. Cardiovascular research, 2010, 86(2): 236-42.
[7] WEI Y, GONG J, XU Z, et al. Nrf2 in ischemic neurons promotes retinal vascular regeneration through regulation of semaphorin 6A [J]. Proceedings of the National Academy of Sciences of the United States of America, 2015, 112(50): E6927-36.
[8] SEGARRA M, OHNUKI H, MARIC D, et al. Semaphorin 6A regulates angiogenesis by modulating VEGF signaling [J]. Blood, 2012, 120(19): 4104-15.
[9] LOBOV I B, CHEUNG E, WUDALI R, et al. The Dll4/Notch pathway controls postangiogenic blood vessel remodeling and regression by modulating vasoconstriction and blood flow [J]. Blood, 2011, 117(24): 6728-37.
[10] DEANFIELD J E, HALCOX J P, RABELINK T J. Endothelial function and dysfunction: testing and clinical relevance [J]. Circulation, 2007, 115(10): 1285-95.
[11] GODO S, SHIMOKAWA H. Endothelial Functions [J]. Arteriosclerosis, thrombosis, and vascular biology, 2017, 37(9): e108-e14.
[12] INCALZA M A, D'ORIA R, NATALICCHIO A, et al. Oxidative stress and reactive oxygen species in endothelial dysfunction associated with cardiovascular and metabolic diseases [J]. Vascul Pharmacol, 2018, 100: 1-19.
[13] WEI Y, GONG J, XU Z, et al. Nrf2 promotes reparative angiogenesis through regulation of NADPH oxidase-2 in oxygen-induced retinopathy [J]. Free radical biology & medicine, 2016, 99: 234-43.
[14] ZHONG X, QIU J, KANG J, et al. Exposure to tris(1,3-dichloro-2-propyl) phosphate (TDCPP) induces vascular toxicity through Nrf2-VEGF pathway in zebrafish and human umbilical vein endothelial cells [J]. Environmental pollution (Barking, Essex : 1987), 2019, 247: 293-301.
[15] WEI Y, GONG J, THIMMULAPPA R K, et al. Nrf2 acts cell-autonomously in endothelium to regulate tip cell formation and vascular branching [J]. Proceedings of the National Academy of Sciences of the United States of America, 2013, 110(41): E3910-8.
[16] XU Z, WEI Y, GONG J, et al. NRF2 plays a protective role in diabetic retinopathy in mice [J]. Diabetologia, 2014, 57(1): 204-13.
[17] WEI Y, GONG J, YOSHIDA T, et al. Nrf2 has a protective role against neuronal and capillary degeneration in retinal ischemia-reperfusion injury [J]. Free radical biology & medicine, 2011, 51(1): 216-24.
[18] ZHANG J, FUKUHARA S, SAKO K, et al. Angiopoietin-1/Tie2 signal augments basal Notch signal controlling vascular quiescence by inducing delta-like 4 expression through AKT-mediated activation of beta-catenin [J]. The Journal of biological chemistry, 2011, 286(10): 8055-66.
[19] WEI J, ZHANG L, REN L, et al. Endosulfan inhibits proliferation through the Notch signaling pathway in human umbilical vein endothelial cells [J]. Environmental pollution (Barking, Essex : 1987), 2017, 221: 26-36.
[20] PITULESCU M E, SCHMIDT I, GIAIMO B D, et al. Dll4 and Notch signalling couples sprouting angiogenesis and artery formation [J]. Nature cell biology, 2017, 19(8): 915-27.
[21] LIU Z, FAN F, WANG A, et al. Dll4-Notch signaling in regulation of tumor angiogenesis [J]. Journal of cancer research and clinical oncology, 2014, 140(4): 525-36.
[22] HULTGREN N W, FANG J S, ZIEGLER M E, et al. Slug regulates the Dll4-Notch-VEGFR2 axis to control endothelial cell activation and angiogenesis [J]. Nature communications, 2020, 11(1): 5400.
[23] UNGVARI Z, TARANTINI S, KISS T, et al. Endothelial dysfunction and angiogenesis impairment in the ageing vasculature [J]. Nature reviews Cardiology, 2018, 15(9): 555-65.
[24] ALEXANDER Y, OSTO E, SCHMIDT-TRUCKSäSS A, et al. Endothelial function in cardiovascular medicine: a consensus paper of the European Society of Cardiology Working Groups on Atherosclerosis and Vascular Biology, Aorta and Peripheral Vascular Diseases, Coronary Pathophysiology and Microcirculation, and Thrombosis [J]. Cardiovascular research, 2021, 117(1): 29-42.
[25] ZHONG X, YU Y, WANG C, et al. Hippocampal proteomic analysis reveals the disturbance of synaptogenesis and neurotransmission induced by developmental exposure to organophosphate flame retardant triphenyl phosphate [J]. J Hazard Mater, 2021, 404(Pt B): 124111.
[26] ZHONG X, WU J, KE W, et al. Neonatal exposure to organophosphorus flame retardant TDCPP elicits neurotoxicity in mouse hippocampus via microglia-mediated inflammation in vivo and in vitro [J]. Archives of toxicology, 2020, 94(2): 541-52.
[27] TARANTINI S, VALCARCEL-ARES M N, YABLUCHANSKIY A, et al. Nrf2 Deficiency Exacerbates Obesity-Induced Oxidative Stress, Neurovascular Dysfunction, Blood-Brain Barrier Disruption, Neuroinflammation, Amyloidogenic Gene Expression, and Cognitive Decline in Mice, Mimicking the Aging Phenotype [J]. The journals of gerontology Series A, Biological sciences and medical sciences, 2018, 73(7): 853-63.
[28] ZHENG S, WANG Y, GUO W, et al. FOXO6 transcription inhibition of CTRP3 promotes OGD/R-triggered cardiac microvascular endothelial barrier disruption via SIRT1/Nrf2 signaling [J]. Folia morphologica, 2023.
[29] WANG D P, KANG K, SUN J, et al. URB597 and Andrographolide Improve Brain Microvascular Endothelial Cell Permeability and Apoptosis by Reducing Oxidative Stress and Inflammation Associated with Activation of Nrf2 Signaling in Oxygen-Glucose Deprivation [J]. Oxidative medicine and cellular longevity, 2022, 2022: 4139330.
[30] ZHANG Q, LIU J, DUAN H, et al. Activation of Nrf2/HO-1 signaling: An important molecular mechanism of herbal medicine in the treatment of atherosclerosis via the protection of vascular endothelial cells from oxidative stress [J]. Journal of advanced research, 2021, 34: 43-63.
[31] ZHANG H, YUAN B, HUANG H, et al. Gastrodin induced HO-1 and Nrf2 up-regulation to alleviate H2O2-induced oxidative stress in mouse liver sinusoidal endothelial cells through p38 MAPK phosphorylation [J]. Brazilian journal of medical and biological research = Revista brasileira de pesquisas medicas e biologicas, 2018, 51(10): e7439.
[32] ZHANG C, KONG X, MA D. miR-141-3p inhibits vascular smooth muscle cell proliferation and migration via regulating Keap1/Nrf2/HO-1 pathway [J]. IUBMB life, 2020, 72(10): 2167-79.
[33] YANG K, SONG H, YIN D. PDSS2 Inhibits the Ferroptosis of Vascular Endothelial Cells in Atherosclerosis by Activating Nrf2 [J]. Journal of cardiovascular pharmacology, 2021, 77(6): 767-76.
[34] SHA W, ZHAO B, WEI H, et al. Astragalus polysaccharide ameliorates vascular endothelial dysfunction by stimulating macrophage M2 polarization via potentiating Nrf2/HO-1 signaling pathway [J]. Phytomedicine : international journal of phytotherapy and phytopharmacology, 2023, 112: 154667.
[35] LIU L, WANG R, XU R, et al. Procyanidin B2 ameliorates endothelial dysfunction and impaired angiogenesis via the Nrf2/PPARγ/sFlt-1 axis in preeclampsia [J]. Pharmacological research, 2022, 177: 106127.
[36] LI H, ZHUANG W, XIONG T, et al. Nrf2 deficiency attenuates atherosclerosis by reducing LOX-1-mediated proliferation and migration of vascular smooth muscle cells [J]. Atherosclerosis, 2022, 347: 1-16.
[37] ASHINO T, YAMAMOTO M, YOSHIDA T, et al. Redox-sensitive transcription factor Nrf2 regulates vascular smooth muscle cell migration and neointimal hyperplasia [J]. Arteriosclerosis, thrombosis, and vascular biology, 2013, 33(4): 760-8.
