The authors have designated this AOP as all rights reserved. Re-use in any form requires advanced permission from the authors.
The AOP framework on ROS-mediated oxidative stress induced vascular disrupting effects
Point of Contact
- Yanhong Wei
|Handbook Version||OECD status||OECD project|
This AOP was last modified on November 06, 2023 10:21
|Increase, Reactive Oxygen Species production||April 11, 2021 18:03|
|Increase, Oxidative Stress||March 03, 2022 10:40|
|Activation of inflammation pathway||May 31, 2022 02:47|
|Activated ANG/Tie2 pathway||August 21, 2023 04:09|
|Activation, Dll4-Notch pathway||August 20, 2023 07:18|
|Activated BMP/TGF-beta pathway||August 21, 2023 04:25|
|Activated Wnt/Frizzled pathway||August 21, 2023 04:26|
|KE4 : Uncoupling, eNOS||November 09, 2017 06:43|
|Activated AKT/ERK/PI3K pathway||August 21, 2023 04:27|
|Inhibition VEGF/VEGFR pathway||August 21, 2023 04:29|
|Increase, Mitochondrial Dysfunction||July 18, 2023 13:57|
|Vascular barrier disruption||August 21, 2023 04:48|
|Impaired Platelet Aggregation||August 21, 2023 04:54|
|Increase, Vascular disrupting effects||August 19, 2023 20:12|
|increased，Vascular endothelial dysfunction||September 01, 2021 20:37|
|Angiogenesis dysfunction||August 28, 2023 05:00|
|Increase, ROS production leads to Increase, Oxidative Stress||August 21, 2023 04:55|
|Increase, Oxidative Stress leads to Activation, inflammation pathway||August 19, 2023 20:13|
|Increase, Oxidative Stress leads to Activated ANG/Tie2 pathway||August 21, 2023 04:56|
|Increase, Oxidative Stress leads to Activation, Dll4-Notch pathway||August 21, 2023 04:56|
|Increase, Oxidative Stress leads to Activated BMP/TGF-beta pathway||August 21, 2023 04:57|
|Increase, Oxidative Stress leads to Activated Wnt/Frizzled pathway||August 21, 2023 04:57|
|Increase, Oxidative Stress leads to Uncoupling, eNOS||August 21, 2023 04:58|
|Increase, Oxidative Stress leads to Activated AKT/ERK/PI3K pathway||August 21, 2023 04:59|
|Increase, Oxidative Stress leads to Inhibition VEGF/VEGFR pathway||August 21, 2023 04:59|
|Increase, Oxidative Stress leads to Increase, Mt Dysfunction||March 07, 2022 11:41|
|Activation, inflammation pathway leads to increased，Vascular endothelial dysfunction||August 19, 2023 20:14|
|Activated ANG/Tie2 pathway leads to increased，Vascular endothelial dysfunction||August 21, 2023 07:33|
|Activation, Dll4-Notch pathway leads to increased，Vascular endothelial dysfunction||August 20, 2023 07:21|
|Activated BMP/TGF-beta pathway leads to increased，Vascular endothelial dysfunction||August 21, 2023 07:34|
|Activated Wnt/Frizzled pathway leads to increased，Vascular endothelial dysfunction||August 21, 2023 07:34|
|Uncoupling, eNOS leads to increased，Vascular endothelial dysfunction||August 21, 2023 07:35|
|Activated AKT/ERK/PI3K pathway leads to increased，Vascular endothelial dysfunction||August 21, 2023 07:35|
|Inhibition VEGF/VEGFR pathway leads to increased，Vascular endothelial dysfunction||August 21, 2023 07:36|
|Increase, Mt Dysfunction leads to increased，Vascular endothelial dysfunction||August 21, 2023 07:36|
|increased，Vascular endothelial dysfunction leads to Impaired Platelet Aggregation||August 21, 2023 05:15|
|Vascular barrier disruption leads to Increase, Vascular disrupting effects||August 21, 2023 07:38|
|Impaired Platelet Aggregation leads to Increase, Vascular disrupting effects||August 21, 2023 07:39|
|increased，Vascular endothelial dysfunction leads to Angiogenesis dysfunction||August 28, 2023 05:01|
|Angiogenesis dysfunction leads to Increase, Vascular disrupting effects||August 28, 2023 05:03|
|increased，Vascular endothelial dysfunction leads to Vascular barrier disruption||August 21, 2023 07:37|
BACKGROUND: CVDs are the leading cause of morbidity and mortality worldwide. Vascular network is an essential channel of the chemical’s ADME process and an important target of toxic effect. Elucidating the AOP of vascular disrupting effects has an essential implication for identifying the vascular toxicological mechanism and supporting regulatory decision making. Some chemicals have been proven to be potential vascular disrupting compounds (pVDCs) altering the expression, activity, or function of molecular signals regulating blood vessel development and remodeling, and the critical event involves ROS-mediated oxidative stress.
RELEVANCE and APPLICATION: Vascular disruption is a broad concept. The intended use of this AOP in a regulatory context is the predictive toxicology of vascular disrupting hazards, especially for integrating data from high-throughput screening (HTS) assays into cell agent-based models for predicting vascular toxicology. As part of an integrated assessment of toxicity, this AOP can identify useful information for assessing adverse outcomes relevant to risk assessment and efficient use of resources for validation through predictive models related to vascular toxicity. AOP-based computer models that simulate vascular development can usher-in new virtual screening techniques to predict what might happen to the vascular when exposed to chemicals across different dose-time-stage scenarios[1, 2].
AOP Development Strategy
This AOP focuses on the vascular disrupting effect via ROS-mediated oxidative stress.The postulated molecular initiating event (MIE) for this AOP, may be invoked by effects on ROS-mediated oxidative stress. Downstream key events (KE) include Oxidative stress, Inflammatory, Activated ANG/Tie2 pathway, Activated Dll4-Notch pathway, Activated BMP/TGF-beta pathway, Activated Wnt/Frizzled pathway, Uncoupling, eNOS, Activated AKT/ERK/PI3K pathway, Inhibited VEGF/VEGFR pathway, Mitochondrial dysfunction, Vascular endothelial dysfunction. KE relationships (KERs) lead to Endothelial dysfunction and Vascular barrier dysruption, Angiogenesis dysfunction, and Impaired Platelet Aggregation. The severity of adverse outcomes (vascular disrupting effects) would ultimately vary by anatomical region, organ system, and physiological state when an MIE is invoked. Furthermore, in order to elucidate the AOP of vascular disrupting effect better, the established AOPs are included.

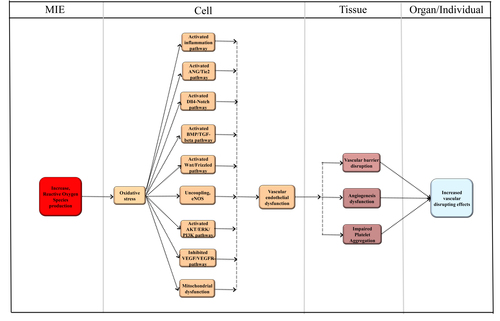

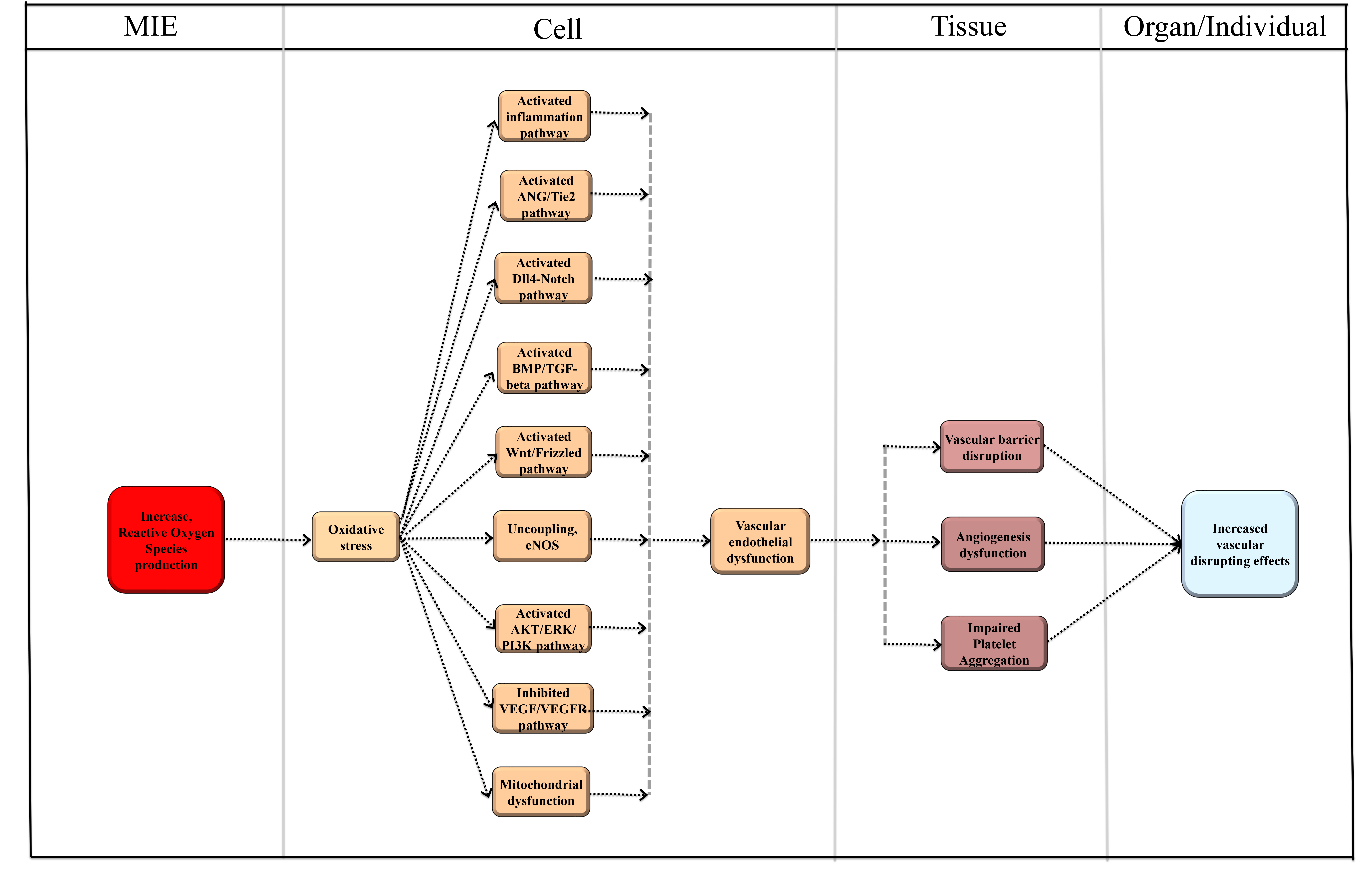

Summary of the AOP
Molecular Initiating Events (MIE)
Key Events (KE)
Adverse Outcomes (AO)
|Type||Event ID||Title||Short name|
|MIE||257||Increase, Reactive Oxygen Species production||Increase, ROS production|
|KE||1969||Increase, Oxidative Stress||Increase, Oxidative Stress|
|KE||2009||Activation of inflammation pathway||Activation, inflammation pathway|
|KE||2170||Activated ANG/Tie2 pathway||Activated ANG/Tie2 pathway|
|KE||2164||Activation, Dll4-Notch pathway||Activation, Dll4-Notch pathway|
|KE||2171||Activated BMP/TGF-beta pathway||Activated BMP/TGF-beta pathway|
|KE||2172||Activated Wnt/Frizzled pathway||Activated Wnt/Frizzled pathway|
|KE||932||KE4 : Uncoupling, eNOS||Uncoupling, eNOS|
|KE||2173||Activated AKT/ERK/PI3K pathway||Activated AKT/ERK/PI3K pathway|
|KE||2174||Inhibition VEGF/VEGFR pathway||Inhibition VEGF/VEGFR pathway|
|KE||1968||Increase, Mitochondrial Dysfunction||Increase, Mt Dysfunction|
|KE||2178||Vascular barrier disruption||Vascular barrier disruption|
|KE||2179||Impaired Platelet Aggregation||Impaired Platelet Aggregation|
|KE||1928||increased，Vascular endothelial dysfunction||increased，Vascular endothelial dysfunction|
|KE||2181||Angiogenesis dysfunction||Angiogenesis dysfunction|
|AO||2161||Increase, Vascular disrupting effects||Increase, Vascular disrupting effects|
Relationships Between Two Key Events (Including MIEs and AOs)
Life Stage Applicability
|All life stages||High|
Overall Assessment of the AOP
The biological plausibility of KERs is strong due to the available mechanistic evidence present in studies from a wide variety of taxa. Support for the essentiality of the key events can be obtained from a wide diversity of taxonomic groups, with lab mice, cell lines, and zebrafish. Previous studies provided evidence such as antagonism, knock-outs or knock-ins to probe the necessity of MIE and KE. And many studies explored the dose concordance, incidence concordance, and temporal concordance of KERs. Furthermore, the AOP can be anticipated based on broader chemical-specific knowledge.
Domain of Applicability
- Life Stage Applicability
The AOPs are not life stage specific
- Taxonomic Applicability
3. Sex Applicability
Essentiality of the Key Events
The biological plausibility of KERs is strong due to the available mechanistic evidence present in studies from a wide variety of taxa. ROS-mediated oxidative stress causes a variety of cellular responses. There are some studies used a weight-of-evidence approach in analyzing TOXCAST data and proposed the putative AOP pathway from MIE Increased Reactive Oxygen Species to KE Oxidative Stress to KE Increase, Inflammation. Furthermore, The essentiality of KERs is strong due to a variety of evidence from different controlled experimental designs with controls. Support for the essentiality of the key events can be obtained from a wide diversity of taxonomic groups, with lab mice, cell lines, and zebrafish. The empirical support of KERs is largely found in toxicological studies derived from reference chemicals with dose-response and temporal concordance assessed.
The QWOE approach is an analytical method that utilizes causality criteria to assess the evidence-supported postulated AOP. Firstly, the hypothesis of action was presented and the quantitative evaluation of evidence ranging from no evidence (0) to strong for each category (3, strong and −3, strong counter) utilizing the evolved MIEs, KEs, and KERs. Subsequently, a ranked importance-based numerical weight was assigned to Bradford Hill causal considerations, and the composite score and confidence score for MIEs, KEs, and entire AOP were evaluated. All in all, the evidences of biological plausibility, essentiality, empirical evidence of dose-response, incidence and temporal concordance, consistency (among different biological contexts), and analogy (consistency across structurally similar chemicals) are strong in this AOP.
Known Modulating Factors
|Modulating Factor (MF)||Influence or Outcome||KER(s) involved|
Optional field to provide quantitative weight of evidence descriptors.
Considerations for Potential Applications of the AOP (optional)
 ELLIS-HUTCHINGS R G, SETTIVARI R S, MCCOY A T, et al. Embryonic vascular disruption adverse outcomes: Linking high throughput signaling signatures with functional consequences [J]. Reproductive toxicology (Elmsford, NY), 2017, 70: 82-96.
 KLEINSTREUER N C, JUDSON R S, REIF D M, et al. Environmental impact on vascular development predicted by high-throughput screening [J]. Environ Health Perspect, 2011, 119(11): 1596-603.
 LIND L, ARAUJO J A, BARCHOWSKY A, et al. Key Characteristics of Cardiovascular Toxicants [J]. Environ Health Perspect, 2021, 129(9): 95001.
 BECKER R A, DELLARCO V, SEED J, et al. Quantitative weight of evidence to assess confidence in potential modes of action [J]. Regulatory toxicology and pharmacology : RTP, 2017, 86: 205-20.
 HE F, RU X, WEN T. NRF2, a Transcription Factor for Stress Response and Beyond [J]. International journal of molecular sciences, 2020, 21(13).
 KIM Y W, BYZOVA T V. Oxidative stress in angiogenesis and vascular disease [J]. Blood, 2014, 123(5): 625-31.
 REY S, SEMENZA G L. Hypoxia-inducible factor-1-dependent mechanisms of vascularization and vascular remodelling [J]. Cardiovascular research, 2010, 86(2): 236-42.
 KIRKMAN D L, ROBINSON A T, ROSSMAN M J, et al. Mitochondrial contributions to vascular endothelial dysfunction, arterial stiffness, and cardiovascular diseases [J]. American journal of physiology Heart and circulatory physiology, 2021, 320(5): H2080-h100.
 FAGIANI E, CHRISTOFORI G. Angiopoietins in angiogenesis [J]. Cancer letters, 2013, 328(1): 18-26.
 COSENTINO F, LüSCHER T F. Maintenance of vascular integrity: role of nitric oxide and other bradykinin mediators [J]. European heart journal, 1995, 16 Suppl K: 4-12.
 ZHOU W, LIU K, ZENG L, et al. Targeting VEGF-A/VEGFR2 Y949 Signaling-Mediated Vascular Permeability Alleviates Hypoxic Pulmonary Hypertension [J]. Circulation, 2022, 146(24): 1855-81.
 MORELLO F, PERINO A, HIRSCH E. Phosphoinositide 3-kinase signalling in the vascular system [J]. Cardiovascular research, 2009, 82(2): 261-71.
 LOBOV I B, CHEUNG E, WUDALI R, et al. The Dll4/Notch pathway controls postangiogenic blood vessel remodeling and regression by modulating vasoconstriction and blood flow [J]. Blood, 2011, 117(24): 6728-37.
 WEI Y, GONG J, XU Z, et al. Nrf2 in ischemic neurons promotes retinal vascular regeneration through regulation of semaphorin 6A [J]. Proceedings of the National Academy of Sciences of the United States of America, 2015, 112(50): E6927-36.
 SEGARRA M, OHNUKI H, MARIC D, et al. Semaphorin 6A regulates angiogenesis by modulating VEGF signaling [J]. Blood, 2012, 120(19): 4104-15.
 DEANFIELD J E, HALCOX J P, RABELINK T J. Endothelial function and dysfunction: testing and clinical relevance [J]. Circulation, 2007, 115(10): 1285-95.
 GODO S, SHIMOKAWA H. Endothelial Functions [J]. Arteriosclerosis, thrombosis, and vascular biology, 2017, 37(9): e108-e14.
 INCALZA M A, D'ORIA R, NATALICCHIO A, et al. Oxidative stress and reactive oxygen species in endothelial dysfunction associated with cardiovascular and metabolic diseases [J]. Vascul Pharmacol, 2018, 100: 1-19.
 WEI Y, GONG J, XU Z, et al. Nrf2 promotes reparative angiogenesis through regulation of NADPH oxidase-2 in oxygen-induced retinopathy [J]. Free radical biology & medicine, 2016, 99: 234-43.
 KIM Y W, WEST X Z, BYZOVA T V. Inflammation and oxidative stress in angiogenesis and vascular disease [J]. Journal of molecular medicine (Berlin, Germany), 2013, 91(3): 323-8.
 REDZA-DUTORDOIR M, AVERILL-BATES D A. Activation of apoptosis signalling pathways by reactive oxygen species [J]. Biochimica et biophysica acta, 2016, 1863(12): 2977-92.
 FERRI K F, KROEMER G. Organelle-specific initiation of cell death pathways [J]. Nature cell biology, 2001, 3(11): E255-63.
 JIN Z, EL-DEIRY W S. Overview of cell death signaling pathways [J]. Cancer biology & therapy, 2005, 4(2): 139-63.
 ZHONG X, QIU J, KANG J, et al. Exposure to tris(1,3-dichloro-2-propyl) phosphate (TDCPP) induces vascular toxicity through Nrf2-VEGF pathway in zebrafish and human umbilical vein endothelial cells [J]. Environmental pollution (Barking, Essex : 1987), 2019, 247: 293-301.
 WEI Y, GONG J, THIMMULAPPA R K, et al. Nrf2 acts cell-autonomously in endothelium to regulate tip cell formation and vascular branching [J]. Proceedings of the National Academy of Sciences of the United States of America, 2013, 110(41): E3910-8.
 XU Z, WEI Y, GONG J, et al. NRF2 plays a protective role in diabetic retinopathy in mice [J]. Diabetologia, 2014, 57(1): 204-13.
 WEI Y, GONG J, YOSHIDA T, et al. Nrf2 has a protective role against neuronal and capillary degeneration in retinal ischemia-reperfusion injury [J]. Free radical biology & medicine, 2011, 51(1): 216-24.
 CIMINO F, SPECIALE A, ANWAR S, et al. Anthocyanins protect human endothelial cells from mild hyperoxia damage through modulation of Nrf2 pathway [J]. Genes & nutrition, 2013, 8(4): 391-9.
 CHEN B, LU Y, CHEN Y, et al. The role of Nrf2 in oxidative stress-induced endothelial injuries [J]. The Journal of endocrinology, 2015, 225(3): R83-99.
 ISHIKADO A, SONO Y, MATSUMOTO M, et al. Willow bark extract increases antioxidant enzymes and reduces oxidative stress through activation of Nrf2 in vascular endothelial cells and Caenorhabditis elegans [J]. Free radical biology & medicine, 2013, 65: 1506-15.
 HAN S G, HAN S S, TOBOREK M, et al. EGCG protects endothelial cells against PCB 126-induced inflammation through inhibition of AhR and induction of Nrf2-regulated genes [J]. Toxicol Appl Pharmacol, 2012, 261(2): 181-8.
 ZHANG J, FUKUHARA S, SAKO K, et al. Angiopoietin-1/Tie2 signal augments basal Notch signal controlling vascular quiescence by inducing delta-like 4 expression through AKT-mediated activation of beta-catenin [J]. The Journal of biological chemistry, 2011, 286(10): 8055-66.
 ORRENIUS S, GOGVADZE V, ZHIVOTOVSKY B. Calcium and mitochondria in the regulation of cell death [J]. Biochemical and biophysical research communications, 2015, 460(1): 72-81.
 ZHANG X, ZHENG C, GAO Z, et al. PKM2 promotes angiotensin-II-induced cardiac remodelling by activating TGF-β/Smad2/3 and Jak2/Stat3 pathways through oxidative stress [J]. Journal of cellular and molecular medicine, 2021, 25(22): 10711-23.
 ZHANG Q, XUE T, GUAN J, et al. Irigenin alleviates angiotensin II-induced oxidative stress and apoptosis in HUVEC cells by activating Nrf2 pathway [J]. Drug development research, 2021, 82(7): 999-1007.
 TAKESHITA K, SATOH M, II M, et al. Critical role of endothelial Notch1 signaling in postnatal angiogenesis [J]. Circulation research, 2007, 100(1): 70-8.
 HAYASHI H, KUME T. Foxc transcription factors directly regulate Dll4 and Hey2 expression by interacting with the VEGF-Notch signaling pathways in endothelial cells [J]. PloS one, 2008, 3(6): e2401.
 ZOU J, FEI Q, XIAO H, et al. VEGF-A promotes angiogenesis after acute myocardial infarction through increasing ROS production and enhancing ER stress-mediated autophagy [J]. Journal of cellular physiology, 2019, 234(10): 17690-703.
 MDKHANA B, GOEL S, SALEH M A, et al. Role of oxidative stress in angiogenesis and the therapeutic potential of antioxidants in breast cancer [J]. European review for medical and pharmacological sciences, 2022, 26(13): 4677-92.
 ROSSINO M G, LULLI M, AMATO R, et al. Oxidative Stress Induces a VEGF Autocrine Loop in the Retina: Relevance for Diabetic Retinopathy [J]. Cells, 2020, 9(6).
 ZHONG X, YU Y, WANG C, et al. Hippocampal proteomic analysis reveals the disturbance of synaptogenesis and neurotransmission induced by developmental exposure to organophosphate flame retardant triphenyl phosphate [J]. J Hazard Mater, 2021, 404(Pt B): 124111.
 ZHONG X, WU J, KE W, et al. Neonatal exposure to organophosphorus flame retardant TDCPP elicits neurotoxicity in mouse hippocampus via microglia-mediated inflammation in vivo and in vitro [J]. Archives of toxicology, 2020, 94(2): 541-52.
 TARANTINI S, VALCARCEL-ARES M N, YABLUCHANSKIY A, et al. Nrf2 Deficiency Exacerbates Obesity-Induced Oxidative Stress, Neurovascular Dysfunction, Blood-Brain Barrier Disruption, Neuroinflammation, Amyloidogenic Gene Expression, and Cognitive Decline in Mice, Mimicking the Aging Phenotype [J]. The journals of gerontology Series A, Biological sciences and medical sciences, 2018, 73(7): 853-63.
 ZHENG S, WANG Y, GUO W, et al. FOXO6 transcription inhibition of CTRP3 promotes OGD/R-triggered cardiac microvascular endothelial barrier disruption via SIRT1/Nrf2 signaling [J]. Folia morphologica, 2023.
 WANG D P, KANG K, SUN J, et al. URB597 and Andrographolide Improve Brain Microvascular Endothelial Cell Permeability and Apoptosis by Reducing Oxidative Stress and Inflammation Associated with Activation of Nrf2 Signaling in Oxygen-Glucose Deprivation [J]. Oxidative medicine and cellular longevity, 2022, 2022: 4139330.
 WANG Q, LIU Y, GUO J, et al. Microcystin-LR induces angiodysplasia and vascular dysfunction through promoting cell apoptosis by the mitochondrial signaling pathway [J]. Chemosphere, 2019, 218: 438-48.
 ZHANG Q, LIU J, DUAN H, et al. Activation of Nrf2/HO-1 signaling: An important molecular mechanism of herbal medicine in the treatment of atherosclerosis via the protection of vascular endothelial cells from oxidative stress [J]. Journal of advanced research, 2021, 34: 43-63.
 ZHANG H, YUAN B, HUANG H, et al. Gastrodin induced HO-1 and Nrf2 up-regulation to alleviate H2O2-induced oxidative stress in mouse liver sinusoidal endothelial cells through p38 MAPK phosphorylation [J]. Brazilian journal of medical and biological research = Revista brasileira de pesquisas medicas e biologicas, 2018, 51(10): e7439.
 ZHANG C, KONG X, MA D. miR-141-3p inhibits vascular smooth muscle cell proliferation and migration via regulating Keap1/Nrf2/HO-1 pathway [J]. IUBMB life, 2020, 72(10): 2167-79.
 YANG K, SONG H, YIN D. PDSS2 Inhibits the Ferroptosis of Vascular Endothelial Cells in Atherosclerosis by Activating Nrf2 [J]. Journal of cardiovascular pharmacology, 2021, 77(6): 767-76.
 SHA W, ZHAO B, WEI H, et al. Astragalus polysaccharide ameliorates vascular endothelial dysfunction by stimulating macrophage M2 polarization via potentiating Nrf2/HO-1 signaling pathway [J]. Phytomedicine : international journal of phytotherapy and phytopharmacology, 2023, 112: 154667.
 LIU L, WANG R, XU R, et al. Procyanidin B2 ameliorates endothelial dysfunction and impaired angiogenesis via the Nrf2/PPARγ/sFlt-1 axis in preeclampsia [J]. Pharmacological research, 2022, 177: 106127.
 LI H, ZHUANG W, XIONG T, et al. Nrf2 deficiency attenuates atherosclerosis by reducing LOX-1-mediated proliferation and migration of vascular smooth muscle cells [J]. Atherosclerosis, 2022, 347: 1-16.
 ASHINO T, YAMAMOTO M, YOSHIDA T, et al. Redox-sensitive transcription factor Nrf2 regulates vascular smooth muscle cell migration and neointimal hyperplasia [J]. Arteriosclerosis, thrombosis, and vascular biology, 2013, 33(4): 760-8.
 SHALABY F, ROSSANT J, YAMAGUCHI T P, et al. Failure of blood-island formation and vasculogenesis in Flk-1-deficient mice [J]. Nature, 1995, 376(6535): 62-6.
 VEIKKOLA T, KARKKAINEN M, CLAESSON-WELSH L, et al. Regulation of angiogenesis via vascular endothelial growth factor receptors [J]. Cancer research, 2000, 60(2): 203-12.
 ABEDI H, ZACHARY I. Vascular endothelial growth factor stimulates tyrosine phosphorylation and recruitment to new focal adhesions of focal adhesion kinase and paxillin in endothelial cells [J]. The Journal of biological chemistry, 1997, 272(24): 15442-51.
 HICKLIN D J, ELLIS L M. Role of the vascular endothelial growth factor pathway in tumor growth and angiogenesis [J]. Journal of clinical oncology : official journal of the American Society of Clinical Oncology, 2005, 23(5): 1011-27.
 WITTIG C, SCHEUER C, PARAKENINGS J, et al. Geraniol Suppresses Angiogenesis by Downregulating Vascular Endothelial Growth Factor (VEGF)/VEGFR-2 Signaling [J]. PloS one, 2015, 10(7): e0131946.
 WU Y, PAN B, ZHANG Z, et al. Caspase-4/11-Mediated Pulmonary Artery Endothelial Cell Pyroptosis Contributes to Pulmonary Arterial Hypertension [J]. Hypertension (Dallas, Tex : 1979), 2022, 79(3): 536-48.
 LAI Y C, PAN K T, CHANG G F, et al. Nitrite-mediated S-nitrosylation of caspase-3 prevents hypoxia-induced endothelial barrier dysfunction [J]. Circulation research, 2011, 109(12): 1375-86.
 DIMMELER S, ZEIHER A M. Endothelial cell apoptosis in angiogenesis and vessel regression [J]. Circulation research, 2000, 87(6): 434-9.
 SZEWCZYK A, JARMUSZKIEWICZ W, KOZIEL A, et al. Mitochondrial mechanisms of endothelial dysfunction [J]. Pharmacological reports : PR, 2015, 67(4): 704-10.
 DIKALOV S, ITANI H, RICHMOND B, et al. Tobacco smoking induces cardiovascular mitochondrial oxidative stress, promotes endothelial dysfunction, and enhances hypertension [J]. American journal of physiology Heart and circulatory physiology, 2019, 316(3): H639-h46.
 PENG W, CAI G, XIA Y, et al. Mitochondrial Dysfunction in Atherosclerosis [J]. DNA and cell biology, 2019, 38(7): 597-606.
 DAVIDSON S M, DUCHEN M R. Endothelial mitochondria: contributing to vascular function and disease [J]. Circulation research, 2007, 100(8): 1128-41.
 THURSTON G. Role of Angiopoietins and Tie receptor tyrosine kinases in angiogenesis and lymphangiogenesis [J]. Cell and tissue research, 2003, 314(1): 61-8.
 PITULESCU M E, SCHMIDT I, GIAIMO B D, et al. Dll4 and Notch signalling couples sprouting angiogenesis and artery formation [J]. Nature cell biology, 2017, 19(8): 915-27.
 LIU Z, FAN F, WANG A, et al. Dll4-Notch signaling in regulation of tumor angiogenesis [J]. Journal of cancer research and clinical oncology, 2014, 140(4): 525-36.
 HULTGREN N W, FANG J S, ZIEGLER M E, et al. Slug regulates the Dll4-Notch-VEGFR2 axis to control endothelial cell activation and angiogenesis [J]. Nature communications, 2020, 11(1): 5400.
 UNGVARI Z, TARANTINI S, KISS T, et al. Endothelial dysfunction and angiogenesis impairment in the ageing vasculature [J]. Nature reviews Cardiology, 2018, 15(9): 555-65.
 ALEXANDER Y, OSTO E, SCHMIDT-TRUCKSäSS A, et al. Endothelial function in cardiovascular medicine: a consensus paper of the European Society of Cardiology Working Groups on Atherosclerosis and Vascular Biology, Aorta and Peripheral Vascular Diseases, Coronary Pathophysiology and Microcirculation, and Thrombosis [J]. Cardiovascular research, 2021, 117(1): 29-42.
