AOP: 534

Title

A descriptive phrase which references both the Molecular Initiating Event and Adverse Outcome.It should take the form “MIE leading to AO”. For example, “Aromatase inhibition leading to reproductive dysfunction” where Aromatase inhibition is the MIE and reproductive dysfunction the AO. In cases where the MIE is unknown or undefined, the earliest known KE in the chain (i.e., furthest upstream) should be used in lieu of the MIE and it should be made clear that the stated event is a KE and not the MIE.  More help

Succinate dehydrogenase (SDH) inhibition leads to cancer through oxidative stress

Short name
A name that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
SDH inhibition, oxidative stress and cancer
The current version of the Developer's Handbook will be automatically populated into the Handbook Version field when a new AOP page is created.Authors have the option to switch to a newer (but not older) Handbook version any time thereafter. More help
Handbook Version v2.6

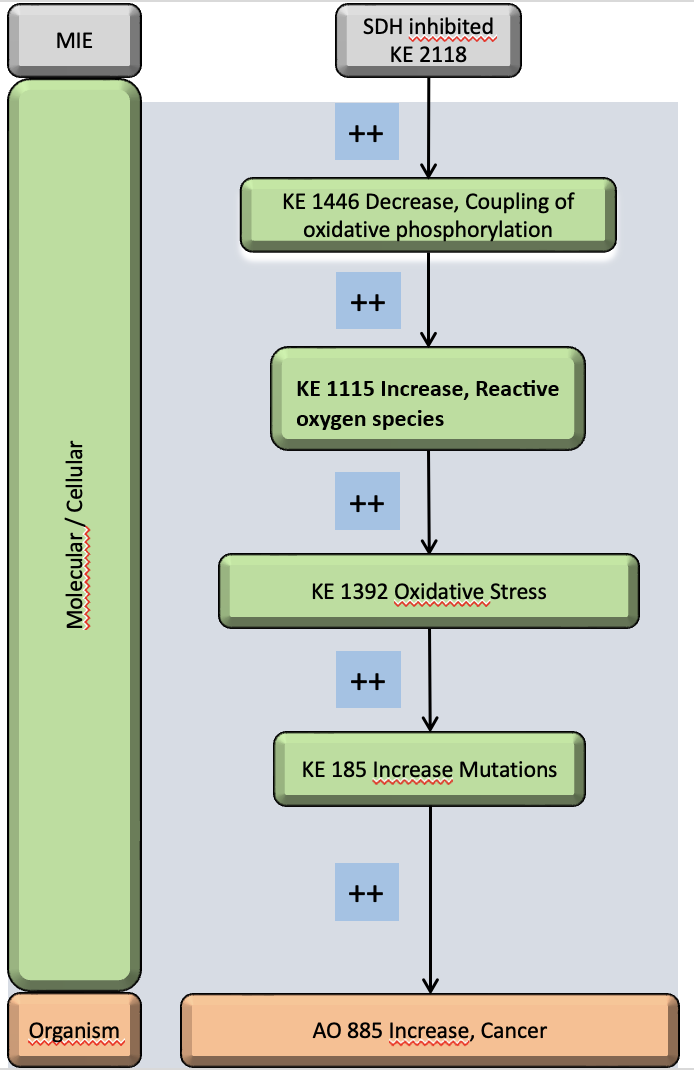

Graphical Representation

A graphical representation of the AOP.This graphic should list all KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs. More help
Click to download graphical representation template Explore AOP in a Third Party Tool

Authors

The names and affiliations of the individual(s)/organisation(s) that created/developed the AOP. More help

Xavier Coumoul

Sylvie Bortoli

Arnaud Tête

Judith Favier

Karine Audouze

Point of Contact

The user responsible for managing the AOP entry in the AOP-KB and controlling write access to the page by defining the contributors as described in the next section.   More help
Xavier COUMOUL   (email point of contact)

Contributors

Users with write access to the AOP page.  Entries in this field are controlled by the Point of Contact. More help
  • Xavier COUMOUL
  • Sylvie Bortoli
  • Karine Audouze
  • Arnaud TETE

Coaches

This field is used to identify coaches who supported the development of the AOP.Each coach selected must be a registered author. More help

OECD Information Table

Provides users with information concerning how actively the AOP page is being developed and whether it is part of the OECD Workplan and has been reviewed and/or endorsed. OECD Project: Assigned upon acceptance onto OECD workplan. This project ID is managed and updated (if needed) by the OECD. OECD Status: For AOPs included on the OECD workplan, ‘OECD status’ tracks the level of review/endorsement of the AOP . This designation is managed and updated by the OECD. Journal-format Article: The OECD is developing co-operation with Scientific Journals for the review and publication of AOPs, via the signature of a Memorandum of Understanding. When the scientific review of an AOP is conducted by these Journals, the journal review panel will review the content of the Wiki. In addition, the Journal may ask the AOP authors to develop a separate manuscript (i.e. Journal Format Article) using a format determined by the Journal for Journal publication. In that case, the journal review panel will be required to review both the Wiki content and the Journal Format Article. The Journal will publish the AOP reviewed through the Journal Format Article. OECD iLibrary published version: OECD iLibrary is the online library of the OECD. The version of the AOP that is published there has been endorsed by the OECD. The purpose of publication on iLibrary is to provide a stable version over time, i.e. the version which has been reviewed and revised based on the outcome of the review. AOPs are viewed as living documents and may continue to evolve on the AOP-Wiki after their OECD endorsement and publication.   More help
OECD Project # OECD Status Reviewer's Reports Journal-format Article OECD iLibrary Published Version
This AOP was last modified on February 25, 2025 11:41

Revision dates for related pages

Page Revision Date/Time
Succinate dehydrogenase, inhibited May 04, 2023 11:49
Decrease, Coupling of oxidative phosphorylation May 28, 2021 07:59
Increase mutations December 19, 2018 11:23
Increase, Cancer August 22, 2023 14:32
Oxidative Stress November 15, 2024 10:33
Increase, Reactive oxygen species June 12, 2025 01:27
SDH, inhibited leads to Decrease, Coupling of OXPHOS May 28, 2024 19:03
Decrease, Coupling of OXPHOS leads to Increase, ROS February 25, 2025 11:13
Increase, ROS leads to Oxidative Stress August 02, 2024 15:40
Oxidative Stress leads to Increase mutations November 06, 2024 12:16
Increase mutations leads to Increase, Cancer May 28, 2024 19:04
Boscalid June 10, 2024 10:27
Bixafen June 10, 2024 10:27
Sedaxane June 10, 2024 10:29

Abstract

A concise and informative summation of the AOP under development that can stand-alone from the AOP page. The aim is to capture the highlights of the AOP and its potential scientific and regulatory relevance. More help

Succinate dehydrogenase (SDH) is a key enzyme of mitochondria, organelles that play a crucial role in the production of energy, the metabolic and calcium homeostasis, the control of apoptosis, and the production of reactive oxygen species. A complete inactivation of SDH leads to cancerous pathologies in young adults (paragangliomas, pheochromocytomas, renal cancers and gastrointestinal stromal tumors). In neuroendocrine tumors, SDH genetic inactivation induces an oxidative stress. Oxidative stress has been linked to genetic mutations and therefore the risk of cancer.

AOP Development Strategy

Context

Used to provide background information for AOP reviewers and users that is considered helpful in understanding the biology underlying the AOP and the motivation for its development.The background should NOT provide an overview of the AOP, its KEs or KERs, which are captured in more detail below. More help

Succinate dehydrogenase (SDH) is a key enzyme of mitochondria, organelles that play a crucial role in the production of energy, the metabolic and calcium homeostasis, the control of apoptosis, and the production of reactive oxygen species. SDH is involved in two interconnected metabolic processes for energy production : 1) cellular respiration, where it allows the transfer of electrons to ubiquinone as complex II of the mitochondrial respiratory chain, and 2) the Krebs cycle, where it catalyzes the oxidation of succinate to fumarate.

Numerous studies show that a complete genetic inactivation of SDH caused by a first constitutional mutation associated with a second somatic mutation, leads to cancerous pathologies in young adults, including particularly aggressive forms of cancer such as paragangliomas (neuroendocrine tumors of the head and neck, thorax, abdomen and pelvis), pheochromocytomas (tumors of the adrenal medulla), renal cancers and gastrointestinal stromal tumors. The cellular and molecular mechanisms related to the genetic inactivation of SDH have been well described in neuroendocrine tumors, where it induces an oxidative stress, a pseudohypoxia phenotype, a metabolic, epigenetic and transcriptional remodeling, and alterations in tumor cell migration and invasion capacities, in connection with the accumulation of succinate, the substrate of SDH.

The succinate dehydrogenase inhibitors (SDHi) are fungicides used to control the proliferation of pathogenic fungi in cereal, fruit and vegetable crops, with a mode of action based on blocking the activity of SDH. The analysis of literature data shows that the impact of SDHi on health remains largely unexplored to date, despite a growing number of studies reporting toxic effects in non-target organisms. This is supported by our recent work highlighting 1) the high degree of conservation of the SDH catalytic site (i.e. the SDHi binding site) during the evolution and 2) the ability of SDHi to inhibit SDH in the mitochondria of non-target species, including humans (PMID: 31697708). These observations show that SDHi are not specific to fungal SDH and that their use may present a risk to human health, particularly in the context of chronic exposure through the diet. Moreover, the analysis of regulatory assessment reports shows that most SDHi induce tumors in animals without evidence of genotoxicity. Thus, for these substances, the mechanisms of carcinogenicity are, to date, not clearly established.

Our hypothesis is that, if SDHi fungicides are able to alter SDH activity in humans, the consequences of SDHi exposure on cellular and mitochondrial functions may resemble those observed in SDH-mutated tumors and SDH-deficient cells. We assume that the development of an AOP deciphering the different steps leading to cancer following a genetically-SDH inactivation could help to propose the exploration of relevant key events and adverse effects upon chronic exposure to SDHi fungicides.

Strategy

Provides a description of the approaches to the identification, screening and quality assessment of the data relevant to identification of the key events and key event relationships included in the AOP or AOP network.This information is important as a basis to support the objective/envisaged application of the AOP by the regulatory community and to facilitate the reuse of its components.  Suggested content includes a rationale for and description of the scope and focus of the data search and identification strategy/ies including the nature of preliminary scoping and/or expert input, the overall literature screening strategy and more focused literature surveys to identify additional information (including e.g., key search terms, databases and time period searched, any tools used). More help

The development strategy for this AOP is based on the multitude of mechanisms of action that can be brought into play by the inhibition of SDH, a key enzyme in mitochondrial metabolism (Krebs cycle and respiratory chain); this inhibition may be genetic in origin, but it may also be chemical, due to the existence of man-made molecules that inhibit its catalytic cycle (in particular those targeting moulds); the initial consequences of inhibition include oxidative stress or an accumulation of succinate; some cancers are known to be associated with genetic invalidation. The development strategy for this AOP is part of the development of an AON with three independent AOPs.

Summary of the AOP

This section is for information that describes the overall AOP.The information described in section 1 is entered on the upper portion of an AOP page within the AOP-Wiki. This is where some background information may be provided, the structure of the AOP is described, and the KEs and KERs are listed. More help

Events:

Molecular Initiating Events (MIE)
An MIE is a specialised KE that represents the beginning (point of interaction between a prototypical stressor and the biological system) of an AOP. More help
Key Events (KE)
A measurable event within a specific biological level of organisation. More help
Adverse Outcomes (AO)
An AO is a specialized KE that represents the end (an adverse outcome of regulatory significance) of an AOP. More help
Type Event ID Title Short name
MIE 2118 Succinate dehydrogenase, inhibited SDH, inhibited
KE 1446 Decrease, Coupling of oxidative phosphorylation Decrease, Coupling of OXPHOS
KE 1115 Increase, Reactive oxygen species Increase, ROS
KE 1392 Oxidative Stress Oxidative Stress
KE 1553 Increase mutations Increase mutations
AO 885 Increase, Cancer Increase, Cancer

Relationships Between Two Key Events (Including MIEs and AOs)

This table summarizes all of the KERs of the AOP and is populated in the AOP-Wiki as KERs are added to the AOP.Each table entry acts as a link to the individual KER description page. More help

Network View

This network graphic is automatically generated based on the information provided in the MIE(s), KEs, AO(s), KERs and Weight of Evidence (WoE) summary tables. The width of the edges representing the KERs is determined by its WoE confidence level, with thicker lines representing higher degrees of confidence. This network view also shows which KEs are shared with other AOPs. More help

Prototypical Stressors

A structured data field that can be used to identify one or more “prototypical” stressors that act through this AOP. Prototypical stressors are stressors for which responses at multiple key events have been well documented. More help

Life Stage Applicability

The life stage for which the AOP is known to be applicable. More help
Life stage Evidence
All life stages Not Specified

Taxonomic Applicability

Latin or common names of a species or broader taxonomic grouping (e.g., class, order, family) can be selected.In many cases, individual species identified in these structured fields will be those for which the strongest evidence used in constructing the AOP was available. More help
Term Scientific Term Evidence Link
Vertebrates Vertebrates Not Specified NCBI

Sex Applicability

The sex for which the AOP is known to be applicable. More help
Sex Evidence
Mixed Not Specified

Overall Assessment of the AOP

Addressess the relevant biological domain of applicability (i.e., in terms of taxa, sex, life stage, etc.) and Weight of Evidence (WoE) for the overall AOP as a basis to consider appropriate regulatory application (e.g., priority setting, testing strategies or risk assessment). More help

The biological plausibility of KERs is defined by the OECD as the « understanding of the fundamental biological processes involved and whether they are consistent with the causal relationship being proposed in the AOP ». The biological plausibility is strong due to the presence of overwhelming evidence present in different studies. SDH genetic inhibition leads for example to paragangliomas.

The essentiality of KEs refers to « experimental data for whether or not downstream KEs or the AO are prevented or modified if an upstream event is blocked ». The essentiality of KEs is moderate: most works converge to imply SDH inactivation with tumorigenic outcomes. One setback would be that SDH inhibition leads to several molecular outcomes including succinate accumulation which is developed in another AOP. The essentiality would be strong considering all AOP starting from SDH inhibition and converging towards cancer through an AON (AOP network).

Finally, the empirical support of KERs, is often « based on toxicological data derived by one or more reference chemicals where dose–response and temporal concordance for the KE pair can be assessed ». The overall assessment of the empirical support of our KERs is moderate.

Domain of Applicability

Addressess the relevant biological domain(s) of applicability in terms of sex, life-stage, taxa, and other aspects of biological context. More help

The biological applicability domain of the putative AOP concerned males and females (humans and other organisms which can develop tumors)

Essentiality of the Key Events

The essentiality of KEs can only be assessed relative to the impact of manipulation of a given KE (e.g., experimentally blocking or exacerbating the event) on the downstream sequence of KEs defined for the AOP. Consequently, evidence supporting essentiality is assembled on the AOP page, rather than on the independent KE pages that are meant to stand-alone as modular units without reference to other KEs in the sequence. The nature of experimental evidence that is relevant to assessing essentiality relates to the impact on downstream KEs and the AO if upstream KEs are prevented or modified. This includes: Direct evidence: directly measured experimental support that blocking or preventing a KE prevents or impacts downstream KEs in the pathway in the expected fashion. Indirect evidence: evidence that modulation or attenuation in the magnitude of impact on a specific KE (increased effect or decreased effect) is associated with corresponding changes (increases or decreases) in the magnitude or frequency of one or more downstream KEs. More help
KEY EVENT LEVEL OF ESSENTIALITY EVIDENCE
KE 1446: decrease, coupling of oxidative phosphorylation  The activity of SDH helps fuel the respiratory chain and thus contributes to the functioning of complex 5 or ATP synthetase, allowing the synthesis of ATP. Inhibition of SDH significantly affects oxidative phosphorylation.

Strong

KE 1115:  Increase, Reactive oxygen species Oxidative stress is linked to an increase in the production of reactive oxygen species and/or a reduction in anti-oxidant defences. An increase in the level of reactive oxygen species is associated with a higher risk of oxidative stress or DNA mutations (hence cancers).

Strong

KE 1392: Oxidative Stress An increase in oxidative stress (caused by an increase in the levels of reactive oxygen species) is associated with a higher risk of mutations and hence of cancer. Strong
KE 1533 : increase mutations The increase in DNA mutations is a process associated with ageing and/or certain environmental exposures. It is a process typically associated with initiation during carcinogenesis. Strong

Evidence Assessment

Addressess the biological plausibility, empirical support, and quantitative understanding from each KER in an AOP. More help

KER 3233: SDH, inhibited leads to Decrease, Coupling of OXPHOS

Several studies have found that the inhibition of succinate dehydrogenase (SDH), also known as Complex II of the electron transport chain, can significantly affect oxidative phosphorylation (OXPHOS) coupling through several interconnected processes. Here are the main pathways:

1) Disruption of the Electron Transport Chain (ETC) SDH is a key enzyme in the tricarboxylic acid (TCA) cycle and the ETC. It catalyzes the oxidation of succinate to fumarate, with the simultaneous reduction of ubiquinone (Q) to ubiquinol (QH2) in the inner mitochondrial membrane. Inhibition of SDH disrupts this process, leading to: - Decreased Electron Flow: With SDH inhibited, electrons from succinate cannot enter the ETC. This reduces the overall electron flow through the ETC. - Reduced Ubiquinol Pool: Ubiquinol is a critical electron donor for Complex III (cytochrome bc1 complex). A decrease in its production limits the electron transfer from Complex III to Complex IV (cytochrome c oxidase).

2) Lower Proton Gradient The ETC functions to pump protons from the mitochondrial matrix to the intermembrane space, creating a proton gradient (proton motive force). This gradient is essential for ATP synthesis by ATP synthase (Complex V). Inhibition of SDH (even if no electron is transferred by SDH impacts this process: - Decreased Proton Pumping: Reduced electron flow through the ETC results in decreased activity of Complexes III and IV, both of which are involved in proton pumping. This diminishes the proton gradient.

3) Reduced ATP Synthesis The proton gradient generated by the ETC is used by ATP synthase to produce ATP. A reduced proton gradient due to inhibited SDH directly impacts ATP production: with a diminished proton motive force, ATP synthase has less energy to convert ADP and inorganic phosphate (Pi) into ATP, leading to decreased ATP synthesis.

In summary, the inhibition of SDH links to the decrease of OXPHOS coupling through a series of cascading effects that begin with disrupted electron flow in the ETC. This leads to a reduced proton gradient and a decreased ATP synthesis. Each of these processes contributes to the overall decrease in the efficiency and coupling of oxidative phosphorylation.

KER 3495: Decrease, Coupling of OXPHOS leads to Increase, ROS

The inhibition of SDH leads to an impaired electron flow through the ETC. When electron flow is impeded, electrons can accumulate and leak from the ETC, particularly at Complexes I and III. These leaked electrons can react with oxygen to form superoxide, a type of reactive oxygen species.

KER 2009: Increase, ROS leads to Oxidative Stress.

The inhibition of SDH leads to an impaired electron flow through the ETC, then to a potential electron leekage which leads to the formation of  superoxide, a type of reactive oxygen species (ROS). Increased production of ROS can overwhelm anti-oxidant defences, leading to oxidative stress. Indeed, oxidative stress is characterized by the excessive production of reactive oxygen species (ROS) such as superoxide (O2•−), hydrogen peroxide (H2O2), and hydroxyl radicals (•OH). These highly reactive molecules can damage cellular macromolecules, including DNA, proteins, and lipids.

KER 3382: Oxidative Stress leads to Increase mutations

Increased oxidative stress can lead to an increase in mutations through several mechanisms, primarily involving the damage to cellular components, including DNA:

  • Direct DNA Damage: ROS can directly damage DNA in several ways:

- Base Modifications: ROS can cause modifications to DNA bases, such as the conversion of guanine to 8-oxoguanine, which is a highly mutagenic lesion. This can lead to mispairing during DNA replication. - Single-Strand Breaks: ROS can induce single-strand breaks in the DNA backbone, which can cause errors during the repair process if not properly fixed. - Double-Strand Breaks: High levels of ROS can cause double-strand breaks, which are more deleterious and challenging for the cell to repair accurately.

  • Indirect DNA Damage via Lipid Peroxidation (which refers to the oxidative degradation of lipids in cellular membranes): Malondialdehyde (MDA) and 4-Hydroxynonenal (4-HNE) are by-products of lipid peroxidation that can form adducts with DNA, leading to mutagenic lesions and cross-links.
  • Protein Oxidation and Dysfunction: oxidative stress can damage proteins, including those involved in DNA repair and replication such as DNA glycosylases, which are involved in base excision repair, or components of the DNA replication machinery
  • Mitochondrial DNA (mtDNA) is particularly susceptible to oxidative damage due to its proximity to the electron transport chain and lack of protective histones: damage to mtDNA can lead to mutations that impair mitochondrial function, creating a vicious cycle of increased ROS production and further mtDNA damage.

KER 3237: Increase mutations leads to Increase, Cancer

Increased mutations lead to cancer by accumulating genetic alterations that disrupt normal cell regulation. These mutations activate oncogenes, inactivate tumor suppressor genes, and impair genomic stability, fostering an environment of clonal evolution where cells with growth advantages proliferate. The result is the acquisition of cancerous traits that enable uncontrolled growth, resistance to cell death, and the ability to invade other tissues, ultimately leading to the development and progression of cancer.

Known Modulating Factors

Modulating factors (MFs) may alter the shape of the response-response function that describes the quantitative relationship between two KES, thus having an impact on the progression of the pathway or the severity of the AO.The evidence supporting the influence of various modulating factors is assembled within the individual KERs. More help
Modulating Factor (MF) Influence or Outcome KER(s) involved


Quantitative Understanding

Optional field to provide quantitative weight of evidence descriptors.  More help

Considerations for Potential Applications of the AOP (optional)

Addressess potential applications of an AOP to support regulatory decision-making.This may include, for example, possible utility for test guideline development or refinement, development of integrated testing and assessment approaches, development of (Q)SARs / or chemical profilers to facilitate the grouping of chemicals for subsequent read-across, screening level hazard assessments or even risk assessment. More help

The AOP begins with an 'SDH inhibition' MIE and could therefore be used to test any molecule likely to directly inhibit succinate dehydrogenase.

Its simple structure could also be used for any molecule likely to cause oxidative stress (i.e. at the level of KEs).

References

List of the literature that was cited for this AOP. More help

To be included
