Demethylation of PPAR promotor leading to vascular disrupting effects
Point of Contact
- Yanhong Wei
|Handbook Version||OECD status||OECD project|
This AOP was last modified on August 28, 2023 07:21
|peroxisome proliferator activated receptor promoter demethylation||September 16, 2017 10:14|
|Activation of PPAR||August 20, 2023 22:14|
|Increase, Oxidative Stress||March 03, 2022 10:40|
|Abnormal expression of NO||August 20, 2023 22:18|
|Activation of MMP-2 MMP-9||August 20, 2023 22:20|
|Activation of angiopoietin like protein 4||August 20, 2023 22:23|
|Activation of Angiogenic cytokines||August 20, 2023 22:24|
|increased，Vascular endothelial dysfunction||September 01, 2021 20:37|
|Increase, Vascular disrupting effects||August 19, 2023 20:12|
|Angiogenesis dysfunction||August 28, 2023 05:00|
|demethylation, PPARg promoter leads to Activation of PPAR||August 20, 2023 23:11|
|Activation of PPAR leads to Increase, Oxidative Stress||August 20, 2023 23:11|
|Activation of PPAR leads to Activation of MMP-2 MMP-9||August 20, 2023 23:12|
|Activation of PPAR leads to Activation of angiopoietin like protein 4||August 20, 2023 23:12|
|Activation of PPAR leads to Activation of Angiogenic cytokines||August 20, 2023 23:13|
|Increase, Oxidative Stress leads to Abnormal expression of NO||August 20, 2023 23:13|
|Activation of MMP-2 MMP-9 leads to increased，Vascular endothelial dysfunction||August 20, 2023 23:14|
|Activation of angiopoietin like protein 4 leads to increased，Vascular endothelial dysfunction||August 20, 2023 23:14|
|Activation of Angiogenic cytokines leads to increased，Vascular endothelial dysfunction||August 20, 2023 23:15|
|Abnormal expression of NO leads to increased，Vascular endothelial dysfunction||August 20, 2023 23:15|
|increased，Vascular endothelial dysfunction leads to Angiogenesis dysfunction||August 28, 2023 05:01|
|Angiogenesis dysfunction leads to Increase, Vascular disrupting effects||August 28, 2023 05:03|
BACKGROUND: CVDs are the main cause of morbidity and mortality worldwide. Vascular network is an important channel of chemical’s ADME process and an important target of toxic effect. However, evidence inference information on the AOPs frameworks for the vascular toxic mechanisms remains limited. We collect toxicological information in literature from the following aspects: (1) In the screening of model organisms, aquatic organisms were mainly selected in vivo, supplemented by chicken embryos and mice, while cell lines were mainly selected in vitro. (2) The study focused on vascular toxicology, which are all closely related to human health hazards. (3) Molecular events and apical endpoint (MIEs, KEs, and AOs) contained changes in cellular function, pathways, transcription and expression, or organ status. In this hypothetical AOP network, the postulated molecular initiating event (MIE) may be invoked by effects on the inhibition of Nrf2. Downstream key events (KE) include Activation of PPAR, Oxidative stress, Abnormal expression of NO, Activation of MMP-2 MMP-9, Activation of angiopoietin like protein 4, Activation of Angiogenic cytokines, Vascular endothelial dysfunction. KE relationships (KERs) leading to Angiogenesis dysfunction. The severity of adverse outcomes (vascular disrupting effects) would ultimately vary by anatomical region, organ system, and physiological state when an MIE is invoked. In addition, it was considered that the results obtained in this investigation may potentially guide future vascular toxicological studies and enhance risk assessment.
AOP Development Strategy
This AOP focuses on the vascular disrupting effect. The demethylation of PPAR promotor plays an important role in the vasculogenesis and angiogenesis. The postulated AOP may be invoked by effects on the demethylation of PPAR promotor. Downstream key events (KE) include Activation of PPAR, Oxidative stress, Abnormal expression of NO, Activation of MMP-2 MMP-9, Activation of angiopoietin like protein 4, Activation of Angiogenic cytokines, Vascular endothelial dysfunction. KE relationships (KERs) lead to Angiogenesis dysfunction. The severity of adverse outcomes (vascular disrupting effects) would ultimately vary by anatomical region, organ system, and physiological state when an MIE is invoked. Furthermore, to better elucidate the AOP of vascular disrupting effect better, the established AOPs are included.

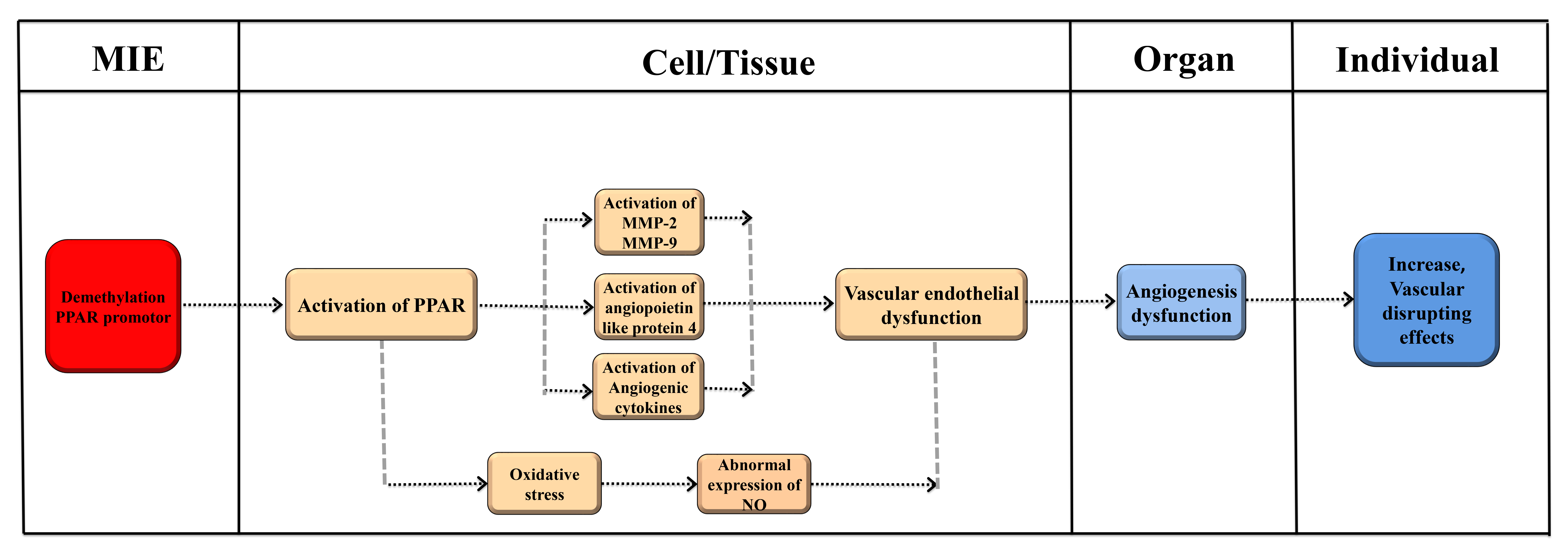

Summary of the AOP
Molecular Initiating Events (MIE)
Key Events (KE)
Adverse Outcomes (AO)
|Type||Event ID||Title||Short name|
|MIE||228||peroxisome proliferator activated receptor promoter demethylation||demethylation, PPARg promoter|
|KE||2165||Activation of PPAR||Activation of PPAR|
|KE||1969||Increase, Oxidative Stress||Increase, Oxidative Stress|
|KE||2166||Abnormal expression of NO||Abnormal expression of NO|
|KE||2167||Activation of MMP-2 MMP-9||Activation of MMP-2 MMP-9|
|KE||2168||Activation of angiopoietin like protein 4||Activation of angiopoietin like protein 4|
|KE||2169||Activation of Angiogenic cytokines||Activation of Angiogenic cytokines|
|KE||1928||increased，Vascular endothelial dysfunction||increased，Vascular endothelial dysfunction|
|KE||2181||Angiogenesis dysfunction||Angiogenesis dysfunction|
|AO||2161||Increase, Vascular disrupting effects||Increase, Vascular disrupting effects|
Relationships Between Two Key Events (Including MIEs and AOs)
Life Stage Applicability
|All life stages||High|
Overall Assessment of the AOP
The biological plausibility of KERs is strong due to the available mechanistic evidence present in studies from a wide variety of taxa. The postulated molecular initiating event (MIE) for this AOP may be invoked by effects on the inhibition of Nrf2, and the key events (KEs) including Activation of PPAR, Oxidative stress, Abnormal expression of NO, Activation of MMP-2 MMP-9, Activation of angiopoietin like protein 4, Activation of Angiogenic cytokines, Vascular endothelial dysfunction. KE relationships (KERs) lead to Angiogenesis dysfunction, which is consistent with established biological understanding. Support for the essentiality of the key events can be obtained from a wide diversity of taxonomic groups, with lab rats, mice, cell lines, and zebrafish. Some studies provided evidence such as antagonism, knock-outs, or knock-ins to probe the necessity of MIE and KE. Furthermore, the AOP can be anticipated based on broader chemical-specific knowledge. However, more studies are needed to explore dose concordance, incidence concordance, and temporal concordance.
Domain of Applicability
- Life Stage Applicability
The AOPs are not life stage specific
- Taxonomic Applicability
- Sex Applicability
Essentiality of the Key Events
The biological plausibility of KERs is strong due to the available mechanistic evidence present in studies from a wide variety of taxa. The demethylation of PPAR promotor causes oxidative stress and a variety of cellular responses. The essentiality of KERs is strong due to many evidence from different controlled experimental designs with controls. Exposure to a various of chemical stressors has induced oxidative stress from PPAR activation. Support for the essentiality of the key events can be obtained from a wide diversity of taxonomic groups, with lab rats, mice, cell lines, and zebrafish. The empirical support of KERs is largely found in toxicological studies derived from reference chemicals with dose-response and temporal concordance assessed. Furthermore, weight of evidence for the MIE and AO are strong, the intermediate KEs have in some cases strong evidence but in other cases, weaker evidence, due to the lack of quantitative information.
The QWOE approach is an analytical method that utilizes causality criteria to assess the evidence-supported postulated AOP. Firstly, the hypothesis of action was presented and the quantitative evaluation of evidence ranging from no evidence (0) to strong for each category (3, strong and −3, strong counter) utilizing the evolved MIEs, KEs, and KERs. Subsequently, a ranked importance-based numerical weight was assigned to Bradford Hill causal considerations, and the composite score and confidence score for MIEs, KEs, and entire AOP were evaluated.
|Assigned weight||Qualitative rating|
|Biological plausibility||Some in vivo and in vitro evidence suggest that the chemicals can cause the vascular toxicity|
|Essentiality empirical support||0.4||1||1||1||1||1||1||1||1|
|Dose and incidence concordance||0.2||3||3||3||3||2||2||2||3|
|Empirical support temporal concordance||0.2||3||3||3||3||2||2||2||3|
|Consistency across test systems||0.1||3||3||3||3||2||2||2||3|
|Analogy mutiple studies support KE and KER||0.1||3||3||3||3||3||3||3||3|
Known Modulating Factors
|Modulating Factor (MF)||Influence or Outcome||KER(s) involved|
Optional field to provide quantitative weight of evidence descriptors.
Considerations for Potential Applications of the AOP (optional)
 BALLATORI N, KRANCE S M, NOTENBOOM S, et al. Glutathione dysregulation and the etiology and progression of human diseases [J]. Biological chemistry, 2009, 390(3): 191-214.
 CHEN C A, WANG T Y, VARADHARAJ S, et al. S-glutathionylation uncouples eNOS and regulates its cellular and vascular function [J]. Nature, 2010, 468(7327): 1115-8.
 GIUSTARINI D, DALLE-DONNE I, MILZANI A, et al. Analysis of GSH and GSSG after derivatization with N-ethylmaleimide [J]. Nature protocols, 2013, 8(9): 1660-9.
 DUMITRESCU C, BIONDI R, XIA Y, et al. Myocardial ischemia results in tetrahydrobiopterin (BH4) oxidation with impaired endothelial function ameliorated by BH4 [J]. Proceedings of the National Academy of Sciences of the United States of America, 2007, 104(38): 15081-6.
 ZHANG J M, AN J. Cytokines, inflammation, and pain [J]. International anesthesiology clinics, 2007, 45(2): 27-37.
 BRAUNERSREUTHER V, VIVIANI G L, MACH F, et al. Role of cytokines and chemokines in non-alcoholic fatty liver disease [J]. World journal of gastroenterology, 2012, 18(8): 727-35.
 CULLEN S P, HENRY C M, KEARNEY C J, et al. Fas/CD95-induced chemokines can serve as "find-me" signals for apoptotic cells [J]. Molecular cell, 2013, 49(6): 1034-48.
 LI J, QUAN X, LEI S, et al. PFOS Inhibited Normal Functional Development of Placenta Cells via PPARγ Signaling [J]. Biomedicines, 2021, 9(6).
 WEI Y, GONG J, XU Z, et al. Nrf2 in ischemic neurons promotes retinal vascular regeneration through regulation of semaphorin 6A [J]. Proceedings of the National Academy of Sciences of the United States of America, 2015, 112(50): E6927-36.
 ZHONG X, YU Y, WANG C, et al. Hippocampal proteomic analysis reveals the disturbance of synaptogenesis and neurotransmission induced by developmental exposure to organophosphate flame retardant triphenyl phosphate [J]. J Hazard Mater, 2021, 404(Pt B): 124111.
 ZHONG X, WU J, KE W, et al. Neonatal exposure to organophosphorus flame retardant TDCPP elicits neurotoxicity in mouse hippocampus via microglia-mediated inflammation in vivo and in vitro [J]. Archives of toxicology, 2020, 94(2): 541-52.
 WANG Y, QIN Z H. Molecular and cellular mechanisms of excitotoxic neuronal death [J]. Apoptosis : an international journal on programmed cell death, 2010, 15(11): 1382-402.
 ZHANG Y, ZHAO H J, XIA X R, et al. Hypoxia-induced and HIF1α-VEGF-mediated tight junction dysfunction in choriocarcinoma cells: Implications for preeclampsia [J]. Clinica chimica acta; international journal of clinical chemistry, 2019, 489: 203-11.
 LI S J, SHANG T, LI S Y, et al. [Effects of peroxisome proliferator-activated receptor gamma and its ligands on cytotrophoblast invasion in first trimester of pregnancy and mechanism thereof] [J]. Zhonghua yi xue za zhi, 2007, 87(3): 174-8.
 SOLIMAN E, BEHAIRY S F, EL-MARAGHY N N, et al. PPAR-γ agonist, pioglitazone, reduced oxidative and endoplasmic reticulum stress associated with L-NAME-induced hypertension in rats [J]. Life sciences, 2019, 239: 117047.
 ZHANG B, HAO Z, ZHOU W, et al. Formononetin protects against ox-LDL-induced endothelial dysfunction by activating PPAR-γ signaling based on network pharmacology and experimental validation [J]. Bioengineered, 2021, 12(1): 4887-98.
 VAN DEN DUNGEN M W, MURK A J, KOK D E, et al. Persistent organic pollutants alter DNA methylation during human adipocyte differentiation [J]. Toxicology in vitro : an international journal published in association with BIBRA, 2017, 40: 79-87.
 LYU G, GUAN Y, ZHANG C, et al. TGF-β signaling alters H4K20me3 status via miR-29 and contributes to cellular senescence and cardiac aging [J]. Nature communications, 2018, 9(1): 2560.
 COSTANTINO S, PANENI F, MITCHELL K, et al. Hyperglycaemia-induced epigenetic changes drive persistent cardiac dysfunction via the adaptor p66(Shc) [J]. International journal of cardiology, 2018, 268: 179-86.
 VARSHAVSKY J R, ROBINSON J F, ZHOU Y, et al. Organophosphate Flame Retardants, Highly Fluorinated Chemicals, and Biomarkers of Placental Development and Disease During Mid-Gestation [J]. Toxicological sciences : an official journal of the Society of Toxicology, 2021, 181(2): 215-28.
 MEI Y, THOMPSON M D, COHEN R A, et al. Endoplasmic Reticulum Stress and Related Pathological Processes [J]. Journal of pharmacological & biomedical analysis, 2013, 1(2): 1000107.
 ZHAO Y, ZHAO H, XU H, et al. Perfluorooctane sulfonate exposure induces preeclampsia-like syndromes by damaging trophoblast mitochondria in pregnant mice [J]. Ecotoxicology and environmental safety, 2022, 247: 114256.
 DU Y, CAI Z, ZHOU G, et al. Perfluorooctanoic acid exposure increases both proliferation and apoptosis of human placental trophoblast cells mediated by ER stress-induced ROS or UPR pathways [J]. Ecotoxicology and environmental safety, 2022, 236: 113508.
 CUI J, WANG P, YAN S, et al. Perfluorooctane Sulfonate Induces Dysfunction of Human Umbilical Vein Endothelial Cells via Ferroptosis Pathway [J]. Toxics, 2022, 10(9).
 BLAKE B E, RICKARD B P, FENTON S E. A High-Throughput Toxicity Screen of 42 Per- and Polyfluoroalkyl Substances (PFAS) and Functional Assessment of Migration and Gene Expression in Human Placental Trophoblast Cells [J]. Frontiers in toxicology, 2022, 4: 881347.
 BONATO M, CORRà F, BELLIO M, et al. Pfas environmental pollution and antioxidant responses: An overview of the impact on human field [J]. International Journal of Environmental Research and Public Health, 2020, 17(21): 1-45.
 SONKAR R, KAY M K, CHOUDHURY M. PFOS Modulates Interactive Epigenetic Regulation in First-Trimester Human Trophoblast Cell Line HTR-8/SV(neo) [J]. Chemical research in toxicology, 2019, 32(10): 2016-27.
 JIANG J, CHEN D Y, LIU Z T, et al. Effect of N-Perfluorooctane on Hypoxia/Reoxygenation Injury in Human Umbilical Vein Endothelial Cells [J]. Acta Cardiologica Sinica, 2016, 32(6): 716-22.
 LIAO Y, WANG J, HUANG Q S, et al. Evaluation of cellular response to perfluorooctane sulfonate in human umbilical vein endothelial cells [J]. Toxicology in vitro : an international journal published in association with BIBRA, 2012, 26(3): 421-8.
 QIAN Y, DUCATMAN A, WARD R, et al. Perfluorooctane sulfonate (PFOS) induces reactive oxygen species (ROS) production in human microvascular endothelial cells: role in endothelial permeability [J]. Journal of toxicology and environmental health Part A, 2010, 73(12): 819-36.
 MARINELLO W P, MOHSENI Z S, CUNNINGHAM S J, et al. Perfluorobutane sulfonate exposure disrupted human placental cytotrophoblast cell proliferation and invasion involving in dysregulating preeclampsia related genes [J]. FASEB journal : official publication of the Federation of American Societies for Experimental Biology, 2020, 34(11): 14182-99.
 DANGUDUBIYYAM S V, MISHRA J S, ZHAO H, et al. Perfluorooctane sulfonic acid (PFOS) exposure during pregnancy increases blood pressure and impairs vascular relaxation mechanisms in the adult offspring [J]. Reproductive toxicology (Elmsford, NY), 2020, 98: 165-73.
 DU Y, CAI Z, ZHANG H, et al. Nitric oxide mediates disruption of human placental trophoblast invasion induced by perfluorobutane sulfonate [J]. Environmental pollution (Barking, Essex : 1987), 2021, 283: 117137.
 DANGUDUBIYYAM S V, MISHRA J S, SONG R, et al. Maternal perfluorooctane sulfonic acid exposure during rat pregnancy causes hypersensitivity to angiotensin II and attenuation of endothelium-dependent vasodilation in the uterine arteries † [J]. Biology of reproduction, 2022, 107(4): 1072-83.
 YANG H, LAI H, HUANG J, et al. Polystyrene microplastics decrease F-53B bioaccumulation but induce inflammatory stress in larval zebrafish [J]. Chemosphere, 2020, 255: 127040.
 HAN R, HU M, ZHONG Q, et al. Perfluorooctane sulphonate induces oxidative hepatic damage via mitochondria-dependent and NF-κB/TNF-α-mediated pathway [J]. Chemosphere, 2018, 191: 1056-64.
 WANG C, NIE X, ZHANG Y, et al. Reactive oxygen species mediate nitric oxide production through ERK/JNK MAPK signaling in HAPI microglia after PFOS exposure [J]. Toxicol Appl Pharmacol, 2015, 288(2): 143-51.
 JIAO X, LIU N, XU Y, et al. Perfluorononanoic acid impedes mouse oocyte maturation by inducing mitochondrial dysfunction and oxidative stress [J]. Reproductive toxicology (Elmsford, NY), 2021, 104: 58-67.
 WANG D, TAN Z, YANG J, et al. Perfluorooctane sulfonate promotes atherosclerosis by modulating M1 polarization of macrophages through the NF-κB pathway [J]. Ecotoxicology and environmental safety, 2023, 249: 114384.
 LIN C Y, CHEN P C, LO S C, et al. The association of carotid intima-media thickness with serum Level of perfluorinated chemicals and endothelium-platelet microparticles in adolescents and young adults [J]. Environ Int, 2016, 94: 292-9.
 ZHU T R, CAO J, HONG J W, et al. [Effects of PFOS on inflammatory factors in human placental trophoblast cells] [J]. Zhonghua lao dong wei sheng zhi ye bing za zhi = Zhonghua laodong weisheng zhiyebing zazhi = Chinese journal of industrial hygiene and occupational diseases, 2020, 38(7): 481-4.
 YU Y, WANG C, ZHANG X, et al. Perfluorooctane sulfonate disrupts the blood brain barrier through the crosstalk between endothelial cells and astrocytes in mice [J]. Environmental pollution (Barking, Essex : 1987), 2020, 256: 113429.
 SZILAGYI J T, FREEDMAN A N, KEPPER S L, et al. Per- and Polyfluoroalkyl Substances Differentially Inhibit Placental Trophoblast Migration and Invasion In Vitro [J]. Toxicological Sciences, 2020, 175(2): 210-9.
 TIEN P T, LIN H J, TSAI Y Y, et al. Perfluorooctanoic acid in indoor particulate matter triggers oxidative stress and inflammation in corneal and retinal cells [J]. Scientific reports, 2020, 10(1): 15702.
 MIDIC U, GOHEEN B, VINCENT K A, et al. Changes in gene expression following long-term in vitro exposure of Macaca mulatta trophoblast stem cells to biologically relevant levels of endocrine disruptors [J]. Reproductive toxicology (Elmsford, NY), 2018, 77: 154-65.
 OJO A F, PENG C, NG J C. Genotoxicity assessment of per- and polyfluoroalkyl substances mixtures in human liver cells (HepG2) [J]. Toxicology, 2022, 482: 153359.
 HAUFE D, DAHMEN K G, TIEBEL O, et al. Effect of perfluorohexane on the expression of cellular adhesion molecules and surfactant protein A in human mesothelial cells in vitro [J]. Artificial cells, blood substitutes, and immobilization biotechnology, 2011, 39(4): 239-46.
 SIRANGELO I, IANNUZZI C, VILASI S, et al. W7FW14F apomyoglobin amyloid aggregates-mediated apoptosis is due to oxidative stress and AKT inactivation caused by Ras and Rac [J]. Journal of cellular physiology, 2009, 221(2): 412-23.
 HYöTYLäINEN T, BODIN J, DUBERG D, et al. Lipidomic Analyses Reveal Modulation of Lipid Metabolism by the PFAS Perfluoroundecanoic Acid (PFUnDA) in Non-Obese Diabetic Mice [J]. Frontiers in genetics, 2021, 12: 721507.
 LIU H, SUN W, ZHOU Y, et al. iTRAQ-based quantitative proteomics analysis of Sprague-Dawley rats liver reveals perfluorooctanoic acid-induced lipid metabolism and urea cycle dysfunction [J]. Toxicology letters, 2022, 357: 20-32.
