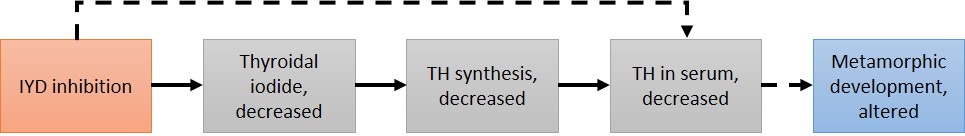

This putative adverse outcome pathway describes the linkage between inhibition of iodotyrosine deiodinase (dehalogenase, IYD) and altered amphibian metamorphosis. Initial development of this AOP is based largely on IYD literature of clinical evidence in humans, rat model experiments, and biochemical and genetic analyses. The enzyme IYD catalyzes the recycling of iodide from the byproducts of thyroid hormone (TH) synthesis [monoiodotyrosine (MIT) and diiodotyrosine (DIT)] within the thyroid gland as well as other organs, including liver and kidney. IYD protects against excretion of critical iodide and promotes accumulation of iodide in thyroid follicular cells for TH synthesis, which is especially critical for low iodine diets and low iodine environments (including most freshwater ecosystems). Therefore, failure or chemical inhibition of IYD could reduce TH synthesis, resulting in TH insufficiency in tissues and subsequent altered development. Failure of this enzyme in humans, due to mutations in the IYD gene (DEHAL1), has been shown to have negative developmental consequences, including hypothyroidism, goiter, and mental retardation. In rat exposures with suspected IYD inhibitors, serum T4 and T3 were reduced, thyroid gland size and TSH increased, and weight gain was reduced. Additionally, IYD has been shown to be a potential chemical target for thyroid axis disruption through in vitro inhibition assays with polychlorinated biphenyls, polybrominated diphenyl ethers, agrichemicals, antiparasitics, pharmaceuticals, and food colorants. This molecular initiating event, inhibition of IYD, may have broad taxonomic applicability; IYD genes are highly conserved across a wide range of multicellular organisms with evidence that iodide salvage is important for many species.
