Antagonism of Smoothened receptor leading to orofacial clefting

Short name
A name that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
Antagonism SMO leads to OFC

Graphical Representation

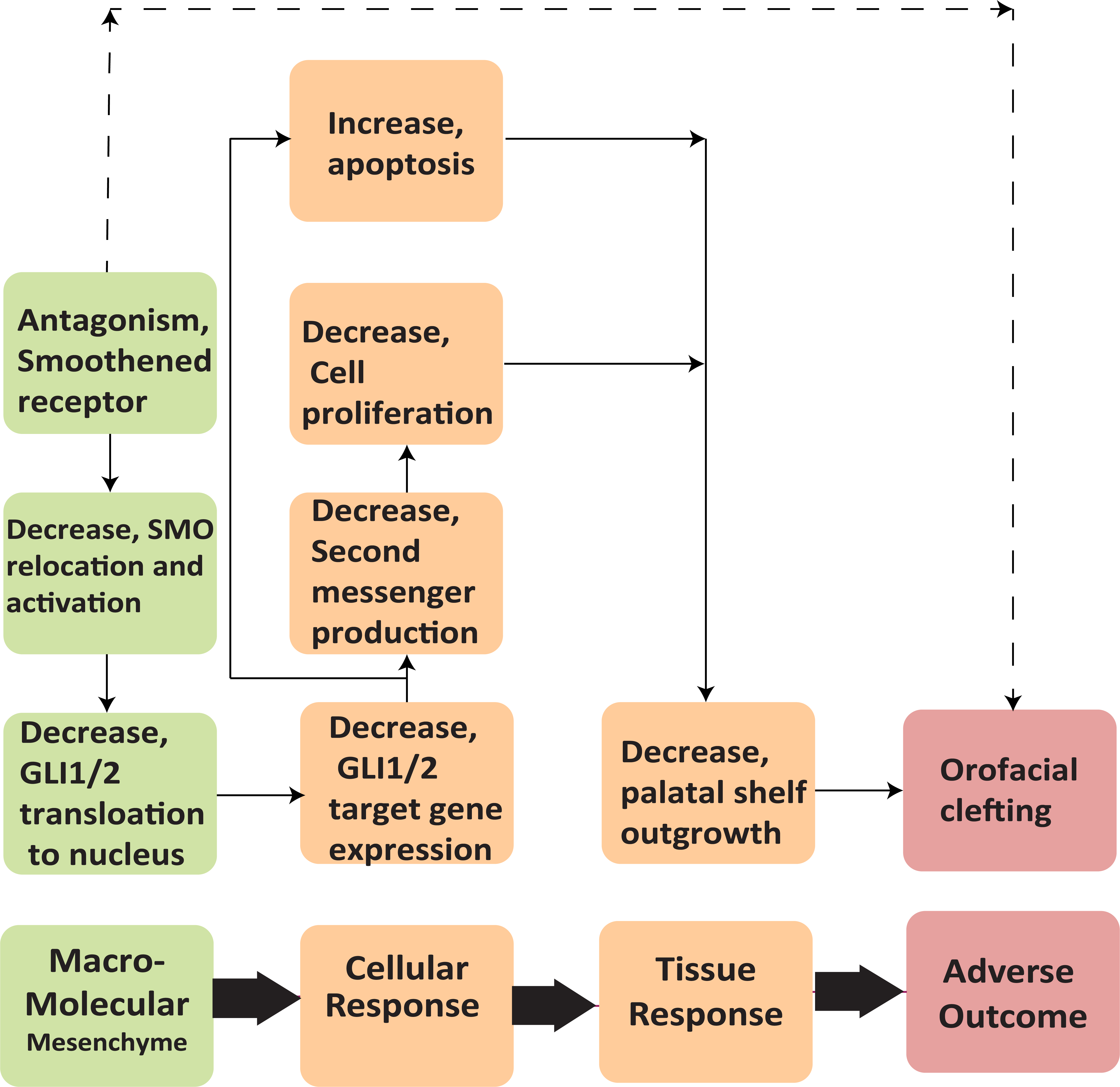

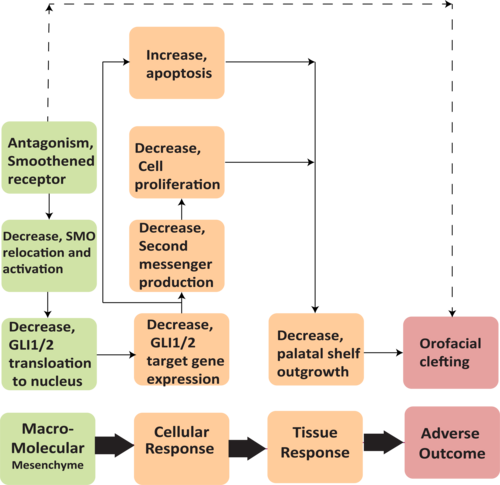

A graphical representation of the AOP.This graphic should list all KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs. More help
