The authors have designated this AOP as all rights reserved. Re-use in any form requires advanced permission from the authors.

AOP: 475

Title

A descriptive phrase which references both the Molecular Initiating Event and Adverse Outcome.It should take the form “MIE leading to AO”. For example, “Aromatase inhibition leading to reproductive dysfunction” where Aromatase inhibition is the MIE and reproductive dysfunction the AO. In cases where the MIE is unknown or undefined, the earliest known KE in the chain (i.e., furthest upstream) should be used in lieu of the MIE and it should be made clear that the stated event is a KE and not the MIE.  More help

Binding of chemicals to ionotropic glutamate receptors leads to impairment of learning and memory via loss of drebrin from dendritic spines of neurons

Short name
A name that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
IGR binding leads to impairment of learning and memory (via loss of drebrin)
The current version of the Developer's Handbook will be automatically populated into the Handbook Version field when a new AOP page is created.Authors have the option to switch to a newer (but not older) Handbook version any time thereafter. More help
Handbook Version v2.5

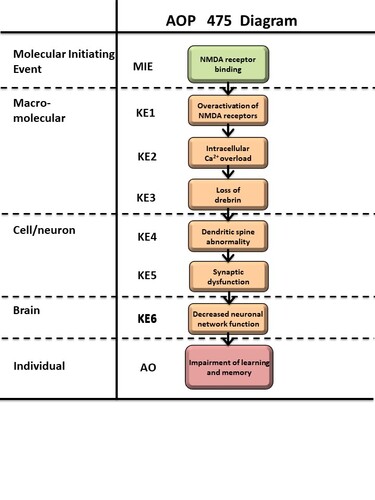

Graphical Representation

A graphical representation of the AOP.This graphic should list all KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs. More help
Click to download graphical representation template Explore AOP in a Third Party Tool

Authors

The names and affiliations of the individual(s)/organisation(s) that created/developed the AOP. More help

Yuko Sekino1, Shihori Tanabe2, Noriko Koganezawa3, Tomoaki Shirao3

1 the University of Tokyo, Japan

2 National Institute of Health Sciences, Japan

3 AlzMed, Inc,, Japan

Point of Contact

The user responsible for managing the AOP entry in the AOP-KB and controlling write access to the page by defining the contributors as described in the next section.   More help
Shihori Tanabe   (email point of contact)

Contributors

Users with write access to the AOP page.  Entries in this field are controlled by the Point of Contact. More help
  • Shihori Tanabe
  • Yuko Sekino
  • Tomoaki Shirao
  • Noriko Koganezawa

Coaches

This field is used to identify coaches who supported the development of the AOP.Each coach selected must be a registered author. More help
  • Rex FitzGerald

OECD Information Table

Provides users with information concerning how actively the AOP page is being developed and whether it is part of the OECD Workplan and has been reviewed and/or endorsed. OECD Project: Assigned upon acceptance onto OECD workplan. This project ID is managed and updated (if needed) by the OECD. OECD Status: For AOPs included on the OECD workplan, ‘OECD status’ tracks the level of review/endorsement of the AOP . This designation is managed and updated by the OECD. Journal-format Article: The OECD is developing co-operation with Scientific Journals for the review and publication of AOPs, via the signature of a Memorandum of Understanding. When the scientific review of an AOP is conducted by these Journals, the journal review panel will review the content of the Wiki. In addition, the Journal may ask the AOP authors to develop a separate manuscript (i.e. Journal Format Article) using a format determined by the Journal for Journal publication. In that case, the journal review panel will be required to review both the Wiki content and the Journal Format Article. The Journal will publish the AOP reviewed through the Journal Format Article. OECD iLibrary published version: OECD iLibrary is the online library of the OECD. The version of the AOP that is published there has been endorsed by the OECD. The purpose of publication on iLibrary is to provide a stable version over time, i.e. the version which has been reviewed and revised based on the outcome of the review. AOPs are viewed as living documents and may continue to evolve on the AOP-Wiki after their OECD endorsement and publication.   More help
OECD Project # OECD Status Reviewer's Reports Journal-format Article OECD iLibrary Published Version
1.107 Under Development
This AOP was last modified on October 25, 2024 08:30

Revision dates for related pages

Page Revision Date/Time
Binding of agonist, Ionotropic glutamate receptors September 16, 2017 10:15
Overactivation, NMDARs July 14, 2024 11:45
Loss of drebrin July 16, 2024 17:55
Synaptic dysfunction January 04, 2023 18:47
Impairment, Learning and memory July 26, 2024 09:54
Increased, Intracellular Calcium overload June 26, 2020 04:45
Decrease of neuronal network function May 28, 2018 11:36
Abnormality, dendritic spine morphology July 14, 2024 10:55
Binding of agonist, Ionotropic glutamate receptors leads to Overactivation, NMDARs November 29, 2016 20:44
Overactivation, NMDARs leads to Loss of drebrin July 17, 2024 06:53
Overactivation, NMDARs leads to Increased, Intracellular Calcium overload September 10, 2023 20:11
Increased, Intracellular Calcium overload leads to Loss of drebrin October 18, 2023 01:22
Dendritic spine abnormality leads to Impairment, Learning and memory July 14, 2024 20:58
Loss of drebrin leads to Dendritic spine abnormality July 14, 2024 11:10
Dendritic spine abnormality leads to Dysfunctional synapses July 17, 2024 04:21
Loss of drebrin leads to Impairment, Learning and memory July 14, 2024 20:59
Dysfunctional synapses leads to Neuronal network function, Decreased October 26, 2021 07:06
Dysfunctional synapses leads to Impairment, Learning and memory December 11, 2022 21:08
Neuronal network function, Decreased leads to Impairment, Learning and memory July 15, 2022 08:41
Sodium L-glutamate July 14, 2024 00:36
amyloid beta July 14, 2024 21:02
lotenone July 14, 2024 21:03

Abstract

A concise and informative summation of the AOP under development that can stand-alone from the AOP page. The aim is to capture the highlights of the AOP and its potential scientific and regulatory relevance. More help

Neurotoxicity risk assessment is an important issue for regulatory agencies. Currently, chemicals with potential risks are determined by time-consuming and costly animal testing. Therefore, in vitro testing methods are needed to rapidly evaluate thousands of chemicals for which no safety data on neurotoxicity exist. In recent years, chemicals that induce learning and memory impairment are thought to increase the risk of neurodegenerative diseases such as Parkinson's disease and Alzheimer's disease. Therefore, such risk assessment is necessary for human safety. The existing AOP No. 6 in OECD Series on AOPs (AOP48 in the AOP-Wiki) defines a molecular initiating event (MIE) as “Binding of agonists to ionotropic glutamate receptors”, causing neuronal cell death linked to impairment of learning and memory through receptor hyperactivation(1).

Recent studies have shown that synaptic dysfunction precedes neuronal death in the early stages of dementia accompanied with the neurodegenerative diseases. Synaptic dysfunction is presumed as a decrease in the number of dendritic spines in neurons of the cerebral cortex and hippocampus, which are essential for learning and memory(2). Therefore, the risk for impairment of learning and memory can be assessed by the synaptic dysfunction, namely decreased number of dendritic spines(3).

Dendritic spines are small actin-rich projections protruding from the dendrites of neurons that form excitatory synapses in the cortex and hippocampus(4). Drebrin is an actin-binding protein that localizes to dendritic spines and is said to play a specific role in their formation(5). Drebrin is known to decrease in Alzheimer's disease with a high correlation to symptom stage(6,7). In low-density cultures of hippocampal neurons, the number of dendritic spines can be counted as the number of drebrin clusters with immunostaining.

We have developed an experimental protocol for low-density neuronal culture in 96-well plates and an algorithm that automatically counts the number of drebrin clusters by high-content imaging analysis(8). These protocols have been shown to be useful for screening chemicals that bind to the NMDA receptor. In fact, we have examined the toxicity of phencyclidine (PCP) and PCP-analogues and published results in a paper(9). We have developed not only the immunocytochemical protocol for in vitro assay using neuronal culture but also enzyme-linked immunosorbent assay (ELISA) kits to evaluate drebrin protein levels. Thus, decreased number of dendritic spines induced by chemicals can be assessed quantitatively as a loss of drebrin immunocytochemically and biochemically.

Here, we propose a new AOP with the same MIE as AOP No. 6, in which loss of drebrin as KE leads to impairment of learning and memory. Studies of genetically engineered mice have shown that drebrin deficiency is directly related to synaptic dysfunction and leads to the impairment of learning and memory, even in the absence of neuronal cell death(10,11,12). This is the most important distinction between the proposed AOP and the existing AOP. Measurement of drebrin expression levels in neurons with immunocytochemistry and/or ELISA is easy and high-reproducible. The new KE, loss of drebrin, will promote accumulation of data of chemicals for neurotoxicity. The proposed AOP is expected to contribute to the development of many in vitro test for neurotoxicity and to establish in silico prediction to evaluate safety of many substances for human and environments.

AOP Development Strategy

Context

Used to provide background information for AOP reviewers and users that is considered helpful in understanding the biology underlying the AOP and the motivation for its development.The background should NOT provide an overview of the AOP, its KEs or KERs, which are captured in more detail below. More help

We discovered drebrin in 1985 and have studied it extensively over many years. In 2017, we published a book as the culmination of our research, Drebrin: From Structure and Function to Physiological and Pathological Roles, as part of the Advances in Experimental Medicine and Biology series by Springer. We originally started to develope this AOP with a three-years research funfing from the Japan Chemical Industry Association (JCIA) Long-range Research Initiative (LRI) to YS from 2020 to 2022 for the research entitled "Proposal of a new AOP for the neurotoxicity and developmental neurotoxicity assessment of glutamate receptor binding agonists that cause learning and memory impairment".  The new adverse outcome (AO),  the learning and memory impairment, has new key events including loss of drebrin from the dendritic spines and the concsequent thin and slender shape of dendritic spines that causes synaptic dysfunction. Drebrin is an actin-binding protein that governs dendritic spine formation of CNS neurons and is responsible for the morphological plasticity of dendritic spines associated with learning and memory. The subcellular localization of drebrin is determined by glutamate receptor activity.  We have improved Banker's method for low density neuronal culture system and established  an immunocytochemical evaluation system of drebrin clusters cultured hippocampal neurons in 96 well plate using frozen hippocampal neurons prepared from rat embryo. We have developed an image processing algorithm for quantitative analysis of neuron count, dendrite length, and drebrin clusters from high-content image data using a confocal image cytometer. In particular, the brightness distribution analysis of drebrin clusters is highly sensitive. We have started to develop a machine learning platform for AI. From the images of immunocytochemical staining, we will clarify the indices for quantitatively evaluating the structural changes of neurons, and provide SOPs for culture techniques and analysis methods. In the future, we are planning to build an experimental system using neurons derived from human iPS cells.

Strategy

Provides a description of the approaches to the identification, screening and quality assessment of the data relevant to identification of the key events and key event relationships included in the AOP or AOP network.This information is important as a basis to support the objective/envisaged application of the AOP by the regulatory community and to facilitate the reuse of its components.  Suggested content includes a rationale for and description of the scope and focus of the data search and identification strategy/ies including the nature of preliminary scoping and/or expert input, the overall literature screening strategy and more focused literature surveys to identify additional information (including e.g., key search terms, databases and time period searched, any tools used). More help

We have studied drebrin in the brain for mayn years.

Drebrin A is brain specific and drebrin E is mpre broadly expressed.

Key event "loss of drebrin" contribute to existing AOPs.

Summary of the AOP

This section is for information that describes the overall AOP.The information described in section 1 is entered on the upper portion of an AOP page within the AOP-Wiki. This is where some background information may be provided, the structure of the AOP is described, and the KEs and KERs are listed. More help

Events:

Molecular Initiating Events (MIE)
An MIE is a specialised KE that represents the beginning (point of interaction between a prototypical stressor and the biological system) of an AOP. More help
Key Events (KE)
A measurable event within a specific biological level of organisation. More help
Adverse Outcomes (AO)
An AO is a specialized KE that represents the end (an adverse outcome of regulatory significance) of an AOP. More help
Type Event ID Title Short name
MIE 875 Binding of agonist, Ionotropic glutamate receptors Binding of agonist, Ionotropic glutamate receptors
KE 388 Overactivation, NMDARs Overactivation, NMDARs
KE 389 Increased, Intracellular Calcium overload Increased, Intracellular Calcium overload
KE 2078 Loss of drebrin Loss of drebrin
KE 2242 Abnormality, dendritic spine morphology Dendritic spine abnormality
KE 1944 Synaptic dysfunction Dysfunctional synapses
KE 386 Decrease of neuronal network function Neuronal network function, Decreased
AO 341 Impairment, Learning and memory Impairment, Learning and memory

Relationships Between Two Key Events (Including MIEs and AOs)

This table summarizes all of the KERs of the AOP and is populated in the AOP-Wiki as KERs are added to the AOP.Each table entry acts as a link to the individual KER description page. More help

Network View

This network graphic is automatically generated based on the information provided in the MIE(s), KEs, AO(s), KERs and Weight of Evidence (WoE) summary tables. The width of the edges representing the KERs is determined by its WoE confidence level, with thicker lines representing higher degrees of confidence. This network view also shows which KEs are shared with other AOPs. More help

Prototypical Stressors

A structured data field that can be used to identify one or more “prototypical” stressors that act through this AOP. Prototypical stressors are stressors for which responses at multiple key events have been well documented. More help

Life Stage Applicability

The life stage for which the AOP is known to be applicable. More help
Life stage Evidence
All life stages Moderate

Taxonomic Applicability

Latin or common names of a species or broader taxonomic grouping (e.g., class, order, family) can be selected.In many cases, individual species identified in these structured fields will be those for which the strongest evidence used in constructing the AOP was available. More help
Term Scientific Term Evidence Link
human Homo sapiens Moderate NCBI

Sex Applicability

The sex for which the AOP is known to be applicable. More help
Sex Evidence
Unspecific High

Overall Assessment of the AOP

Addressess the relevant biological domain of applicability (i.e., in terms of taxa, sex, life stage, etc.) and Weight of Evidence (WoE) for the overall AOP as a basis to consider appropriate regulatory application (e.g., priority setting, testing strategies or risk assessment). More help

Domain of Applicability

Addressess the relevant biological domain(s) of applicability in terms of sex, life-stage, taxa, and other aspects of biological context. More help

Essentiality of the Key Events

The essentiality of KEs can only be assessed relative to the impact of manipulation of a given KE (e.g., experimentally blocking or exacerbating the event) on the downstream sequence of KEs defined for the AOP. Consequently, evidence supporting essentiality is assembled on the AOP page, rather than on the independent KE pages that are meant to stand-alone as modular units without reference to other KEs in the sequence. The nature of experimental evidence that is relevant to assessing essentiality relates to the impact on downstream KEs and the AO if upstream KEs are prevented or modified. This includes: Direct evidence: directly measured experimental support that blocking or preventing a KE prevents or impacts downstream KEs in the pathway in the expected fashion. Indirect evidence: evidence that modulation or attenuation in the magnitude of impact on a specific KE (increased effect or decreased effect) is associated with corresponding changes (increases or decreases) in the magnitude or frequency of one or more downstream KEs. More help

Evidence Assessment

Addressess the biological plausibility, empirical support, and quantitative understanding from each KER in an AOP. More help

Known Modulating Factors

Modulating factors (MFs) may alter the shape of the response-response function that describes the quantitative relationship between two KES, thus having an impact on the progression of the pathway or the severity of the AO.The evidence supporting the influence of various modulating factors is assembled within the individual KERs. More help
Modulating Factor (MF) Influence or Outcome KER(s) involved


Quantitative Understanding

Optional field to provide quantitative weight of evidence descriptors.  More help

Considerations for Potential Applications of the AOP (optional)

Addressess potential applications of an AOP to support regulatory decision-making.This may include, for example, possible utility for test guideline development or refinement, development of integrated testing and assessment approaches, development of (Q)SARs / or chemical profilers to facilitate the grouping of chemicals for subsequent read-across, screening level hazard assessments or even risk assessment. More help

References

List of the literature that was cited for this AOP. More help
  1. Shirao T., Sekino Y. (Eds.) (2017) Drebrin. (Advances in Experimental Medicine and Biology, vol 1006) Tokyo, Springer
  2. Adverse Outcome Pathway on binding of agonists to ionotropic glutamate receptors in adult brain leading to excitotoxicity that mediates neuronal cell death, contributing to learning and memory impairment, Sachana M, et al. OECD Series on Adverse Outcome Pathways (2016) No. 6, OECD Publishing, Paris, doi: 10.1787/5jlr8vqgm630-en.
  3. Synapse pathology in Alzheimer’s disease, Griffiths J, Grant GN. Seminars in Cell and Developmental Biology (2022) doi: 10.1016/j.semcdb.2022.05.028. (review)
  4. Dopamine Restores Limbic Memory Loss, Dendritic Spine Structure, and NMDAR-Dependent LTD in the Nucleus Accumbens of Alcohol-Withdrawn Rats Cannizzaro C, et al. J Neurosci. (2019) Jan 30;39(5):929-943. doi: 10.1523/JNEUROSCI.1377-18.2018.
  5. Actin in dendritic spines: connecting dynamics to function, Hotulainen P, Hoogenraad C. J Cell Biol (2010) 17;189(4):619-29. doi: 10.1083/jcb. 201003008. (review)
  6. Role of actin cytoskeleton in dendritic spine morphogenesis. Sekino Y, et al. Neurochem Int. (2007) 51(2-4):92-104. doi: 10.1016/j.neuint.2007.04.029. (review)
  7. Drebrin, a dendritic spine protein, is manifold decreased in brains of patients with Alzheimer’s disease and Down syndrome Shim KS, Lubec G. Neurosci Lett. 2002 May 24;324(3):209-12. doi: 10.1016/s0304-3940(02)00210-0.
  8. Differential expression of synaptic proteins in the frontal and temporal cortex of elderly subjects with mild cognitive impairment, Counts SE, et al.  J Neuropathol Exp Neurol. 2006 Jun;65(6):592-601. doi: 10.1097/00005072-200606000-00007.
  9. High-content imaging analysis for detecting the loss of drebrin clusters along dendrites in cultured hippocampal neurons Hanamura K, et al. J Pharmacol Toxicol Methods. (2019) 99:106607. doi: 10.1016/j.vascn.2019.106607.
  10. Assessment of NMDA receptor inhibition of phencyclidine analogues using a high-throughput drebrin immunocytochemical assay Mitsuoka T, et al. J Pharmacol Toxicol Methods. (2019) 99:106583. doi: 10.1016/j.vascn.2019
  11. Genetic disruption of the alternative splicing of drebrin gene impairs context-dependent fear learning in adulthood, Kojima N, et al. Neuroscience. (2010) 165(1):138-50. Doi: 10.1016/j.neuroscience.2009.10.016.
  12. Drebrin A regulates hippocampal LTP and hippocampus-dependent fear learning in adult mice, Kojima N, et al. Neuroscience. (2016) Jun 2;324:218-26. doi: 10.1016/j.neuroscience.2016.03.015.
  13. Effective expression of Drebrin in hippocampus improves cognitive function and alleviates lesions of Alzheimer’s disease in APP (swe)/PS1 (ΔE9) mice, Liu Y, et al. CNS Neurosci Ther. (2017) Jul;23(7):590-604. doi: 10.1111/cns.12706.
