AOP: 218

Title

A descriptive phrase which references both the Molecular Initiating Event and Adverse Outcome.It should take the form “MIE leading to AO”. For example, “Aromatase inhibition leading to reproductive dysfunction” where Aromatase inhibition is the MIE and reproductive dysfunction the AO. In cases where the MIE is unknown or undefined, the earliest known KE in the chain (i.e., furthest upstream) should be used in lieu of the MIE and it should be made clear that the stated event is a KE and not the MIE.  More help

Inhibition of CYP7B activity leads to decreased reproductive success via decreased locomotor activity

Short name
A name that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
Inhibition of CYP7B leads to decreased locomotor activity

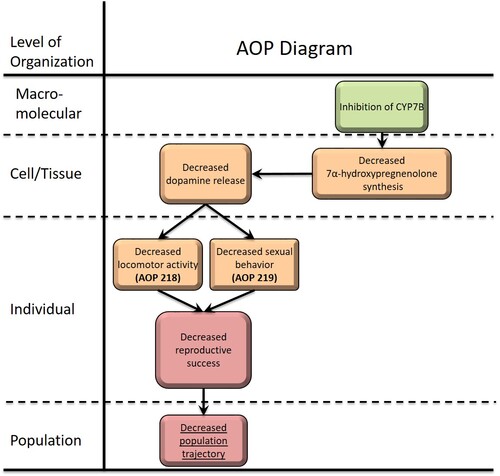

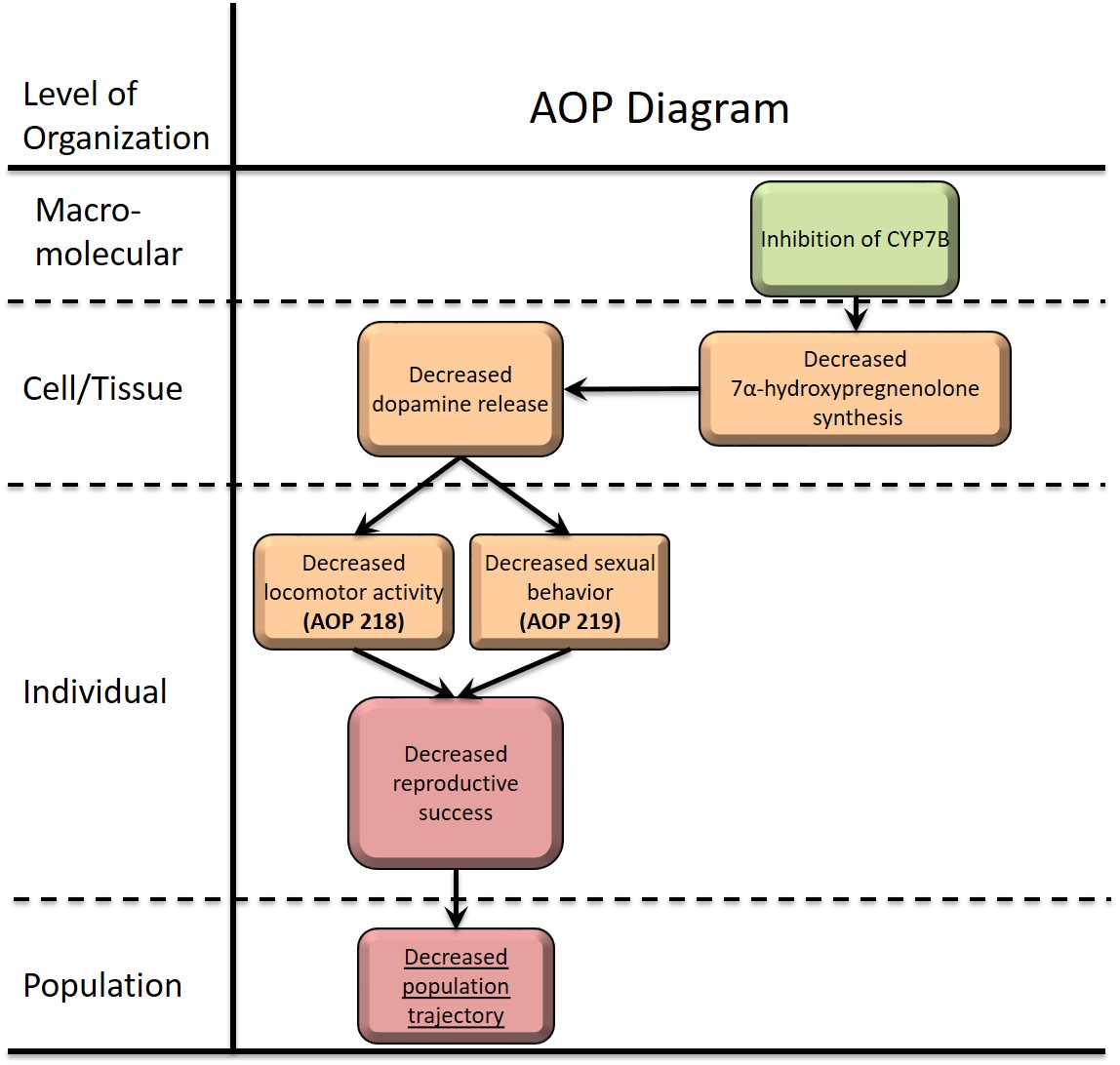

Graphical Representation

A graphical representation of the AOP.This graphic should list all KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs. More help
Click to download graphical representation template Explore AOP in a Third Party Tool

Authors

The names and affiliations of the individual(s)/organisation(s) that created/developed the AOP. More help

Florence Pagé-Larivière

Laval University, Québec, Qc, Canada

florence.page-lariviere.1@ulaval.ca

Point of Contact

The user responsible for managing the AOP entry in the AOP-KB and controlling write access to the page by defining the contributors as described in the next section.   More help
Florence Pagé-Larivière   (email point of contact)

Contributors

Users with write access to the AOP page.  Entries in this field are controlled by the Point of Contact. More help
  • Florence Pagé-Larivière

Coaches

This field is used to identify coaches who supported the development of the AOP.Each coach selected must be a registered author. More help

Status

Provides users with information concerning how actively the AOP page is being developed, what type of use or input the authors feel comfortable with given the current level of development, and whether it is part of the OECD AOP Development Workplan and has been reviewed and/or endorsed. OECD Status - Tracks the level of review/endorsement the AOP has been subjected to. OECD Project Number - Project number is designated and updated by the OECD. SAAOP Status - Status managed and updated by SAAOP curators. More help
Handbook Version OECD status OECD project
v1.0
This AOP was last modified on April 29, 2023 16:03

Revision dates for related pages

Page Revision Date/Time
CYP7B activity, inhibition May 17, 2017 12:21
7α-hydroxypregnenolone synthesis in the brain, decreased May 17, 2017 13:08
Dopamine release in the brain, decreased May 17, 2017 13:05
Locomotor activity, decreased May 18, 2017 10:54
Decreased, Reproductive Success December 03, 2016 16:37
Decrease, Population growth rate January 03, 2023 09:09
CYP7B activity, inhibition leads to 7α-hydroxypregnenolone synthesis in the brain, decreased May 17, 2017 21:09
CYP7B activity, inhibition leads to Locomotor activity, decreased May 17, 2017 21:13
7α-hydroxypregnenolone synthesis in the brain, decreased leads to Locomotor activity, decreased May 17, 2017 21:14
7α-hydroxypregnenolone synthesis in the brain, decreased leads to Dopamine release in the brain, decreased May 25, 2017 14:22
Dopamine release in the brain, decreased leads to Locomotor activity, decreased May 02, 2017 22:01
Locomotor activity, decreased leads to Decreased, Reproductive Success June 26, 2017 15:06
Decreased, Reproductive Success leads to Decrease, Population growth rate April 06, 2022 13:50
Ketoconazole May 02, 2017 11:08

Abstract

A concise and informative summation of the AOP under development that can stand-alone from the AOP page. The aim is to capture the highlights of the AOP and its potential scientific and regulatory relevance. More help

This AOP details the downstream events of CYP7B inhibition leading to a decreased locomotor activity that adversely impacts reproductive success. CYP7B is expressed in the brain and catalyzes the conversion of pregnenolone to 7α-hydroxypregnenolone, a neurosteroid that stimulates the release of dopamine in the telencephalon. When released through this pathway, dopamine binds D2 receptor which is involved in locomotor activity induction. Ketoconazole and other azole fungicides are potent inhibitor of cytochrome P450s, including CYP7B. They bind to the heme site of the enzyme preventing its catalytic activity. Exposure to one of these molecules induces a decrease in 7α-hydroxypregnenolone synthesis which, in turn, reduces dopamine release in the telencephalon and limits locomotor activity. Since locomotor activity is closely associated to reproductive success through courtship enhancement (newt), expansion of territory (bird) and homing migration (salmon), its inhibition negatively affects the fitness of animals.

7α-hydroxypregnenolone was recently discovered and its function and regulation remain unclear. The few studies that focused on this neurosteroid and that were used for this AOP are based on in vitro and in vivo experiments in salmon, quail and newt. At present, it is believed that the function of this neurosteroid differs in mammals, which suggest that this AOP is only applicable to non-mammalian vertebrates. Also, the sex applicability of the AOP varies according to species.

AOP Development Strategy

Context

Used to provide background information for AOP reviewers and users that is considered helpful in understanding the biology underlying the AOP and the motivation for its development.The background should NOT provide an overview of the AOP, its KEs or KERs, which are captured in more detail below. More help

The stressor identified for this AOP is used as fungicide both in the field for crop protection and in animal against fungus infection. Because it can inhibit various cytochrome P450 enzymes activity, a family of enzymes involved in a plethora of pathways including steroidogenesis, it has the potential to induce many different side effects for animal exposed indirectly through the environment or directly through medical treatment. This AOP targets one of these side effects.

Strategy

Provides a description of the approaches to the identification, screening and quality assessment of the data relevant to identification of the key events and key event relationships included in the AOP or AOP network.This information is important as a basis to support the objective/envisaged application of the AOP by the regulatory community and to facilitate the reuse of its components.  Suggested content includes a rationale for and description of the scope and focus of the data search and identification strategy/ies including the nature of preliminary scoping and/or expert input, the overall literature screening strategy and more focused literature surveys to identify additional information (including e.g., key search terms, databases and time period searched, any tools used). More help

Summary of the AOP

This section is for information that describes the overall AOP.The information described in section 1 is entered on the upper portion of an AOP page within the AOP-Wiki. This is where some background information may be provided, the structure of the AOP is described, and the KEs and KERs are listed. More help

Events:

Molecular Initiating Events (MIE)
An MIE is a specialised KE that represents the beginning (point of interaction between a prototypical stressor and the biological system) of an AOP. More help
Key Events (KE)
A measurable event within a specific biological level of organisation. More help
Adverse Outcomes (AO)
An AO is a specialized KE that represents the end (an adverse outcome of regulatory significance) of an AOP. More help
Type Event ID Title Short name
MIE 1386 CYP7B activity, inhibition CYP7B activity, inhibition
KE 1387 7α-hydroxypregnenolone synthesis in the brain, decreased 7α-hydroxypregnenolone synthesis in the brain, decreased
KE 1388 Dopamine release in the brain, decreased Dopamine release in the brain, decreased
KE 1389 Locomotor activity, decreased Locomotor activity, decreased
KE 1141 Decreased, Reproductive Success Decreased, Reproductive Success
AO 360 Decrease, Population growth rate Decrease, Population growth rate

Relationships Between Two Key Events (Including MIEs and AOs)

This table summarizes all of the KERs of the AOP and is populated in the AOP-Wiki as KERs are added to the AOP.Each table entry acts as a link to the individual KER description page. More help

Network View

This network graphic is automatically generated based on the information provided in the MIE(s), KEs, AO(s), KERs and Weight of Evidence (WoE) summary tables. The width of the edges representing the KERs is determined by its WoE confidence level, with thicker lines representing higher degrees of confidence. This network view also shows which KEs are shared with other AOPs. More help

Prototypical Stressors

A structured data field that can be used to identify one or more “prototypical” stressors that act through this AOP. Prototypical stressors are stressors for which responses at multiple key events have been well documented. More help

Life Stage Applicability

The life stage for which the AOP is known to be applicable. More help
Life stage Evidence
Adult, reproductively mature High

Taxonomic Applicability

Latin or common names of a species or broader taxonomic grouping (e.g., class, order, family) can be selected.In many cases, individual species identified in these structured fields will be those for which the strongest evidence used in constructing the AOP was available. More help
Term Scientific Term Evidence Link
Japanese quail Coturnix japonica NCBI
Cynops pyrrhogaster Cynops pyrrhogaster NCBI

Sex Applicability

The sex for which the AOP is known to be applicable. More help
Sex Evidence
Male High

Overall Assessment of the AOP

Addressess the relevant biological domain of applicability (i.e., in terms of taxa, sex, life stage, etc.) and Weight of Evidence (WoE) for the overall AOP as a basis to consider appropriate regulatory application (e.g., priority setting, testing strategies or risk assessment). More help

Domain of Applicability

Addressess the relevant biological domain(s) of applicability in terms of sex, life-stage, taxa, and other aspects of biological context. More help

Taxons: This AOP is supported with evidence from studies conducted with newt, quail, and salmon. Based on anticipated conservation of the biology associated with the KEs and KERs described, it is presumed to be applicable to all amphibian, bird and migratory teleost fish.

Previous evidence suggest that this AOP is not applicable to mammal. All the key events of this AOP are described or are biologically plausible in mammal, but the relationship between them might differ, as suggested by Yau et al. (2006).

Sex: The sex applicability of this AOP is species-specific. Female quail and newt are insensitive to this MIE in regard to locomotor activity whereas male are highly sensitive. In salmon, both male and female exhibit a decreased locomotor activity with induction of the MIE.

Life Stage: This AOP applies to sexually mature animals since the endpoint is related to reproduction. However, all the key events except “reproductive success, decreased” (event 1141) and and the adverse outcome (event 442) are known to occur in juveniles which suggest that an AOP connecting CYP7B inhibition and decreased locomotor activity in juvenile to an endpoint not sexually-oriented could be built.

Essentiality of the Key Events

The essentiality of KEs can only be assessed relative to the impact of manipulation of a given KE (e.g., experimentally blocking or exacerbating the event) on the downstream sequence of KEs defined for the AOP. Consequently, evidence supporting essentiality is assembled on the AOP page, rather than on the independent KE pages that are meant to stand-alone as modular units without reference to other KEs in the sequence. The nature of experimental evidence that is relevant to assessing essentiality relates to the impact on downstream KEs and the AO if upstream KEs are prevented or modified. This includes: Direct evidence: directly measured experimental support that blocking or preventing a KE prevents or impacts downstream KEs in the pathway in the expected fashion. Indirect evidence: evidence that modulation or attenuation in the magnitude of impact on a specific KE (increased effect or decreased effect) is associated with corresponding changes (increases or decreases) in the magnitude or frequency of one or more downstream KEs. More help

Few studies measured multiple key events of this AOP.  For this reason, the evidence for essentiality of the key events is mainly indirect and provided by a series of antagonist/exogenous supplementation experiments. The animal models used for these investigations were newt, quail, and salmon.

Key event

Essentiality

Rational

MIE

Inhibition of CYP7B

Moderate

At present, no CYP7B knock-out experiments were conducted in species of interest. However, several indirect evidences linking CYP7B inhibition to a decreased locomotor activity suggest an important correlation between the two events.

  • Inhibition of CYP7B with intracranial injection of ketoconazole decreased 7α-hydroxypregnenolone synthesis and prevented locomotor activity in newt and quail (Tsutsui et al., 2008, Toyoda et al., 2012). Ketoconazole is a non-specific inhibitor of cytochromes P450 activity known to bind to and inhibit CYP7B both in vitro and in vivo.
  • In salmon, decreased locomotor activity was observed following a depletion of CYP7B substrate (pregnenolone) with intracranial injection of aminoglutethimide, an inhibitor of cytochrome P450 ssc (Haraguchi et al., 2015).
  • Penguins exposed orally to voriconazole, an azole molecule with the same effects as ketoconazole on CYPs activity were lethargic and weak. The side effects dissipated or resolved with discontinuation or dose reduction of voriconazole (Hyatt et al., 2015).



KE1

7α-hydroxypregnenolone, decreased

Strong

Numerous direct evidences connecting this neurosteroid to locomotor activity were described.

  • Intracerebroventricular injection of 7α-hydroxypregnenolone in male chick, salmon, quail, and newt induced spontaneous locomotor activity in a dose-dependent manner. The same treatment had no effect on female. The experiments were conducted during the season (salmon, newt) or the time of the day (chick, quail) with the lowest endogenous locomotor activity (Matsunaga et al., 2004; Tsutsui et al., 2008; Hatori et al., 2011; Toyoda et al., 2012; Haraguchi et al., 2015).
  • Salmon treated with aminoglutethimide to deplete pregnenolone concentration in the brain exhibited increased locomotor activity following intracerebroventricular injection of 7α-hydroxypregnenolone (Haraguchi et al., 2015).

KE2

Dopamine release, decreased

Moderate

There is strong evidence demonstrating the involvement of dopamine in locomotor activity among all vertebrates. However, only indirect evidence relates CYP7B inhibition to a decreased dopamine release. The rational is stronger for 7α-hydroxypregnenolone in relation to dopamine release, although this neurosteroid receptor remains to be identified.

  • Locomotor activity was stimulated in male newt with intracerebroventricular injection of 7α-hydroxypregnenolone. Newt treated with a dopamine D2-like receptor antagonist (haloperidol or sulpiride) prior to receiving 7α-hydroxypregnenolone exhibited no increase in locomotor activity.
  • Inhibition of 7α-hydroxypregnenolone synthesis with aminoglutethimide (pregnenolone depletion) decreases dopamine concentration in the salmon brain. Supplementation with physiological concentration of 7α-hydroxypregnenolone restored dopamine concentration to normal (Haraguchi et al., 2015).

KE3

Locomotor activity, decreased

Strong

All the previous key events can decrease locomotor activity in salmon and male quail, chicken, and newt.

Evidence Assessment

Addressess the biological plausibility, empirical support, and quantitative understanding from each KER in an AOP. More help

Biological plausibility

This AOP connects the cyp7b catalyzed synthesis on an important neurosteroid to a well characterized sequence of events. For instance, the involvement of dopamine in locomotor activity that in turn impacts on reproductive success is well described and undisputed (Bardo M.T. et al., 1999; Levens et al., 2000). What is less characterized is the relation between 7α-hydroxypregnenolone and dopamine release. Since the neurosteroid receptor has yet to be identified, no direct interaction between 7α-hydroxypregnenolone and dopaminergic neuron has been demonstrated. It is thus possible that an intermediate event takes place in between to indirectly connect the neurosteroid to dopamine release.

In terms of structural plausibility, the brain expresses the steroidogenic enzymes required for pregnenolone synthesis, the main substrate of CYP7B. It also expresses CYP7B which synthesizes high concentration of 7α-hydroxypregnenolone in the diencephalon. This region of the brain is populated by neurons projecting into the striatum which is known to express a high quantity of D1- and D2-like dopamine receptor and control motor activity (Orgen S. et al., 1986; Mezey S. et al., 2002; Callier S. et al., 2003).

Uncertainties or inconsistencies

At present, there are no inconsistencies reported in the literature, but some gaps remain to be filled.

The most important ones are 7α-hydroxypregnenolone receptor localization and the connection between 7α-hydroxypregnenolone and dopamine release discussed in the previous section.

In addition, mammalian CYP7B not only catalyzes the 7α-hydroxylation of pregnenolone but also that of dehydroepiandrosterone (DHEA). Although no clear information reported this enzymatic reaction in the bird, it is plausible that CYP7B catalyzes the hydroxylation of DHEA. Thus, the phenotypic effect of CYP7B inhibition in the brain cannot be uniquely attributed to a depletion in 7α-hydroxypregnenolone. Additionally, ketoconazole is known to inhibit a variety of CYPs, which suggest that animal exposed to it are likely to have several other enzymes inhibited. It is plausible that the impacts of ketoconazole are the result of multiple CYPs inhibition that all converge towards the same phenotype. These off target effects greatly limit the investigations on 7α-hydroxypregnenolone since its concentration cannot be specifically decreased.

If a CYP7B knock-out in the brain was to be performed in an animal species, 7α-hydroxyDHEA supplementation would be required to properly study 7α-hydroxypregnenolone function.

Known Modulating Factors

Modulating factors (MFs) may alter the shape of the response-response function that describes the quantitative relationship between two KES, thus having an impact on the progression of the pathway or the severity of the AO.The evidence supporting the influence of various modulating factors is assembled within the individual KERs. More help

Quantitative Understanding

Optional field to provide quantitative weight of evidence descriptors.  More help

This information is not available for the moment.

Considerations for Potential Applications of the AOP (optional)

Addressess potential applications of an AOP to support regulatory decision-making.This may include, for example, possible utility for test guideline development or refinement, development of integrated testing and assessment approaches, development of (Q)SARs / or chemical profilers to facilitate the grouping of chemicals for subsequent read-across, screening level hazard assessments or even risk assessment. More help

References

List of the literature that was cited for this AOP. More help
