The authors have designated this AOP as all rights reserved. Re-use in any form requires advanced permission from the authors.

AOP: 494

Title

A descriptive phrase which references both the Molecular Initiating Event and Adverse Outcome.It should take the form “MIE leading to AO”. For example, “Aromatase inhibition leading to reproductive dysfunction” where Aromatase inhibition is the MIE and reproductive dysfunction the AO. In cases where the MIE is unknown or undefined, the earliest known KE in the chain (i.e., furthest upstream) should be used in lieu of the MIE and it should be made clear that the stated event is a KE and not the MIE.  More help

AhR activation leading to liver fibrosis

Short name
A name that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
AhR and chronic liver diseases
The current version of the Developer's Handbook will be automatically populated into the Handbook Version field when a new AOP page is created.Authors have the option to switch to a newer (but not older) Handbook version any time thereafter. More help
Handbook Version v2.5

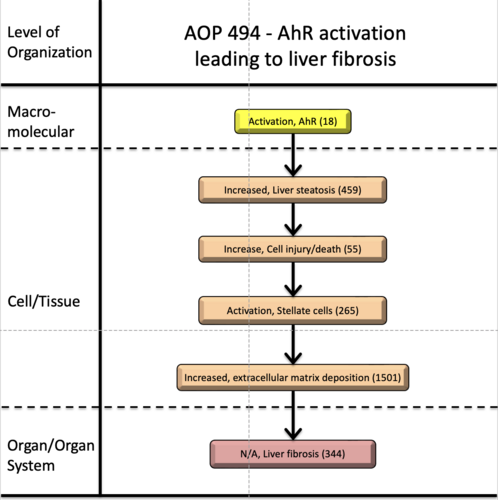

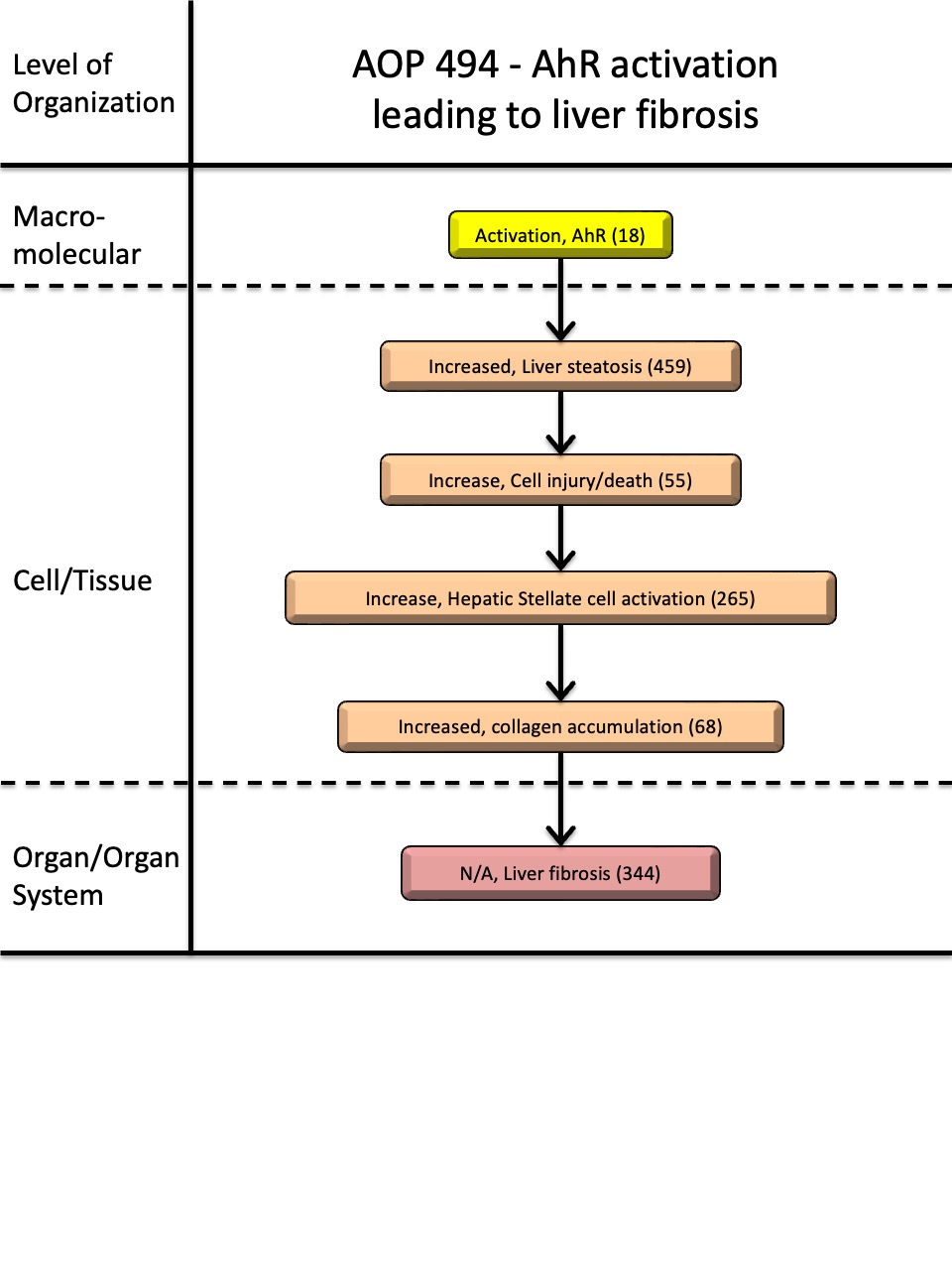

Graphical Representation

A graphical representation of the AOP.This graphic should list all KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs. More help
Click to download graphical representation template Explore AOP in a Third Party Tool

Authors

The names and affiliations of the individual(s)/organisation(s) that created/developed the AOP. More help

Xavier Coumoul*, Min Ji Kim$, Karine Audouze*, Etienne Blanc*, Jean-Pascal de Bandt*

Institutions : Université Paris Cité*, Université Sorbonne Nord$ / Inserm T3S Umr-S 1124

Point of Contact

The user responsible for managing the AOP entry in the AOP-KB and controlling write access to the page by defining the contributors as described in the next section.   More help
Xavier COUMOUL   (email point of contact)

Contributors

Users with write access to the AOP page.  Entries in this field are controlled by the Point of Contact. More help
  • Xavier COUMOUL
  • Min Ji Kim
  • Karine Audouze
  • Etienne Blanc

Coaches

This field is used to identify coaches who supported the development of the AOP.Each coach selected must be a registered author. More help
  • Tanja Burgdorf

OECD Information Table

Provides users with information concerning how actively the AOP page is being developed and whether it is part of the OECD Workplan and has been reviewed and/or endorsed. OECD Project: Assigned upon acceptance onto OECD workplan. This project ID is managed and updated (if needed) by the OECD. OECD Status: For AOPs included on the OECD workplan, ‘OECD status’ tracks the level of review/endorsement of the AOP . This designation is managed and updated by the OECD. Journal-format Article: The OECD is developing co-operation with Scientific Journals for the review and publication of AOPs, via the signature of a Memorandum of Understanding. When the scientific review of an AOP is conducted by these Journals, the journal review panel will review the content of the Wiki. In addition, the Journal may ask the AOP authors to develop a separate manuscript (i.e. Journal Format Article) using a format determined by the Journal for Journal publication. In that case, the journal review panel will be required to review both the Wiki content and the Journal Format Article. The Journal will publish the AOP reviewed through the Journal Format Article. OECD iLibrary published version: OECD iLibrary is the online library of the OECD. The version of the AOP that is published there has been endorsed by the OECD. The purpose of publication on iLibrary is to provide a stable version over time, i.e. the version which has been reviewed and revised based on the outcome of the review. AOPs are viewed as living documents and may continue to evolve on the AOP-Wiki after their OECD endorsement and publication.   More help
OECD Project # OECD Status Reviewer's Reports Journal-format Article OECD iLibrary Published Version
This AOP was last modified on June 13, 2024 09:45

Revision dates for related pages

Page Revision Date/Time
Activation, AhR February 28, 2024 05:12
Up Regulation, CYP1A1 September 16, 2017 10:15
Increase, Reactive oxygen species March 19, 2019 09:41
Increase, Cell injury/death May 27, 2024 07:23
Activation, Stellate cells November 10, 2019 05:25
Leukocyte recruitment/activation December 01, 2017 09:33
Increased, extracellular matrix deposition January 25, 2022 16:26
N/A, Liver fibrosis December 05, 2018 08:29
Increased, Liver Steatosis May 21, 2024 10:00
Activation, AhR leads to Up Regulation, CYP1A1 December 03, 2016 16:37
Up Regulation, CYP1A1 leads to Increase, ROS April 13, 2023 08:40
Activation, AhR leads to Increased, Liver Steatosis May 14, 2024 13:55
Increased, Liver Steatosis leads to Cell injury/death May 14, 2024 13:53
Cell injury/death leads to Activation, Stellate cells November 29, 2016 19:54
Cell injury/death leads to Leukocyte recruitment/activation April 13, 2023 08:44
Leukocyte recruitment/activation leads to Increased extracellular matrix deposition April 13, 2023 08:44
Activation, Stellate cells leads to Increased extracellular matrix deposition April 13, 2023 08:47
Increased extracellular matrix deposition leads to N/A, Liver fibrosis April 10, 2021 11:49
2,3,7,8-tetrachlorodibenzo-p-dioxin (TCDD) February 09, 2017 14:32

Abstract

A concise and informative summation of the AOP under development that can stand-alone from the AOP page. The aim is to capture the highlights of the AOP and its potential scientific and regulatory relevance. More help

Liver fibrosis, characterized by excessive accumulation of extracellular matrix proteins, represents a significant health burden worldwide. The Ah receptor (AhR), a ligand-activated transcription factor primarily known for its involvement in xenobiotic metabolism, has emerged as a key player in various physiological processes, including liver homeostasis and inflammation. Recent studies have implicated the AhR signaling pathway in the development and progression of liver fibrosis. This AOP provides a comprehensive overview of the molecular mechanisms underlying the association between AhR activation and liver fibrogenesis. AhR activation by endogenous ligands, such as tryptophan metabolites and environmental toxins, triggers a cascade of events leading to hepatic stellate cell activation, inflammation, and fibrogenesis. Understanding the intricate interplay between AhR and liver fibrosis offers novel insights into the pathogenesis of chronic liver diseases and highlights AhR as a potential therapeutic target for the management of liver fibrosis.

AOP Development Strategy

Context

Used to provide background information for AOP reviewers and users that is considered helpful in understanding the biology underlying the AOP and the motivation for its development.The background should NOT provide an overview of the AOP, its KEs or KERs, which are captured in more detail below. More help

Understanding the biological link between Ah receptor (AhR) activation and liver fibrosis holds significant relevance due to its implications in the pathogenesis of various liver diseases. Liver fibrosis represents a common pathological process underlying the progression of chronic liver disorders, including hepatitis, alcoholic liver disease, and non-alcoholic fatty liver disease (NAFLD). Notably, NAFLD, characterized by hepatic steatosis, inflammation, and fibrosis, has become a global health concern, closely associated with obesity, metabolic syndrome, and insulin resistance. Given that AhR activation has been implicated in the regulation of lipid metabolism and inflammation, elucidating its role in liver fibrosis provides valuable insights into the molecular mechanisms driving NAFLD progression. Moreover, the interconnected nature of liver diseases underscores the importance of investigating AhR-mediated pathways as potential therapeutic targets for the management of liver fibrosis and its comorbidities, including hepatic steatosis. Therefore, establishing a biological link between AhR activation and liver fibrosis not only enhances our understanding of disease pathogenesis but also offers promising avenues for the development of targeted therapies for liver-related disorders.

Strategy

Provides a description of the approaches to the identification, screening and quality assessment of the data relevant to identification of the key events and key event relationships included in the AOP or AOP network.This information is important as a basis to support the objective/envisaged application of the AOP by the regulatory community and to facilitate the reuse of its components.  Suggested content includes a rationale for and description of the scope and focus of the data search and identification strategy/ies including the nature of preliminary scoping and/or expert input, the overall literature screening strategy and more focused literature surveys to identify additional information (including e.g., key search terms, databases and time period searched, any tools used). More help

We have been working for many years on chronic liver diseases and AhR. We had written a review on the subject and, following on from experimental work showing the links between AhR and fibrosis (two publications), we decided as part of the PARC project to take advantage of this expertise to publish this AOP.

Summary of the AOP

This section is for information that describes the overall AOP.The information described in section 1 is entered on the upper portion of an AOP page within the AOP-Wiki. This is where some background information may be provided, the structure of the AOP is described, and the KEs and KERs are listed. More help

Events:

Molecular Initiating Events (MIE)
An MIE is a specialised KE that represents the beginning (point of interaction between a prototypical stressor and the biological system) of an AOP. More help
Key Events (KE)
A measurable event within a specific biological level of organisation. More help
Adverse Outcomes (AO)
An AO is a specialized KE that represents the end (an adverse outcome of regulatory significance) of an AOP. More help
Type Event ID Title Short name
MIE 18 Activation, AhR Activation, AhR
KE 80 Up Regulation, CYP1A1 Up Regulation, CYP1A1
KE 1364 Increase, Reactive oxygen species Increase, ROS
KE 55 Increase, Cell injury/death Cell injury/death
KE 459 Increased, Liver Steatosis Increased, Liver Steatosis
KE 265 Activation, Stellate cells Activation, Stellate cells
KE 1494 Leukocyte recruitment/activation Leukocyte recruitment/activation
KE 1501 Increased, extracellular matrix deposition Increased extracellular matrix deposition
AO 344 N/A, Liver fibrosis N/A, Liver fibrosis

Relationships Between Two Key Events (Including MIEs and AOs)

This table summarizes all of the KERs of the AOP and is populated in the AOP-Wiki as KERs are added to the AOP.Each table entry acts as a link to the individual KER description page. More help

Network View

This network graphic is automatically generated based on the information provided in the MIE(s), KEs, AO(s), KERs and Weight of Evidence (WoE) summary tables. The width of the edges representing the KERs is determined by its WoE confidence level, with thicker lines representing higher degrees of confidence. This network view also shows which KEs are shared with other AOPs. More help

Prototypical Stressors

A structured data field that can be used to identify one or more “prototypical” stressors that act through this AOP. Prototypical stressors are stressors for which responses at multiple key events have been well documented. More help

Life Stage Applicability

The life stage for which the AOP is known to be applicable. More help
Life stage Evidence
Adults Moderate

Taxonomic Applicability

Latin or common names of a species or broader taxonomic grouping (e.g., class, order, family) can be selected.In many cases, individual species identified in these structured fields will be those for which the strongest evidence used in constructing the AOP was available. More help
Term Scientific Term Evidence Link
Homo sapiens Homo sapiens Moderate NCBI
Mus musculus Mus musculus High NCBI

Sex Applicability

The sex for which the AOP is known to be applicable. More help
Sex Evidence
Mixed Moderate

Overall Assessment of the AOP

Addressess the relevant biological domain of applicability (i.e., in terms of taxa, sex, life stage, etc.) and Weight of Evidence (WoE) for the overall AOP as a basis to consider appropriate regulatory application (e.g., priority setting, testing strategies or risk assessment). More help

The biological plausibility of KERs is defined by the OECD as the « understanding of the fundamental biological processes involved and whether they are consistent with the causal relationship being proposed in the AOP ». The biological plausibility is strong due to the presence of overwhelming evidence present in different studies. A minor setback would be the difficulty to dismiss alternative mechanisms caused by the ligands used for AhR activation.

The essentiality of KEs refers to « experimental data for whether or not downstream KEs or the AO are prevented or modified if an upstream event is blocked ». The essentiality of KEs is strong: most works converge to imply the AhR in fibrotic processes. One setback would be that AhR knockout mice also develop a specific liver fibrosis. We propose that exogenous ligands alter the activity of endogenous ligands and therefore contribute just like the knockout to the occurence of liver fibrosis. The AhR activation needs to be considered then as the binding of exogenous ligands (xenobiotics) counteracting on the physiological processes which regulate the physiological functions.

Finally, the empirical support of KERs, is often « based on toxicological data derived by one or more reference chemicals where dose–response and temporal concordance for the KE pair can be assessed ». The overall assessment of the empirical support of our KERs is also strong. There is evidence in human cell lines and mice showing a dose–response and temporal concordance for severity of our KEs and the adverse outcomes (for example, a dose-dependant effect of TCDD on the development of liver fibrosis in mice).

Domain of Applicability

Addressess the relevant biological domain(s) of applicability in terms of sex, life-stage, taxa, and other aspects of biological context. More help

Essentiality of the Key Events

The essentiality of KEs can only be assessed relative to the impact of manipulation of a given KE (e.g., experimentally blocking or exacerbating the event) on the downstream sequence of KEs defined for the AOP. Consequently, evidence supporting essentiality is assembled on the AOP page, rather than on the independent KE pages that are meant to stand-alone as modular units without reference to other KEs in the sequence. The nature of experimental evidence that is relevant to assessing essentiality relates to the impact on downstream KEs and the AO if upstream KEs are prevented or modified. This includes: Direct evidence: directly measured experimental support that blocking or preventing a KE prevents or impacts downstream KEs in the pathway in the expected fashion. Indirect evidence: evidence that modulation or attenuation in the magnitude of impact on a specific KE (increased effect or decreased effect) is associated with corresponding changes (increases or decreases) in the magnitude or frequency of one or more downstream KEs. More help

Evidence Assessment

Addressess the biological plausibility, empirical support, and quantitative understanding from each KER in an AOP. More help

Known Modulating Factors

Modulating factors (MFs) may alter the shape of the response-response function that describes the quantitative relationship between two KES, thus having an impact on the progression of the pathway or the severity of the AO.The evidence supporting the influence of various modulating factors is assembled within the individual KERs. More help
Modulating Factor (MF) Influence or Outcome KER(s) involved


Quantitative Understanding

Optional field to provide quantitative weight of evidence descriptors.  More help

Considerations for Potential Applications of the AOP (optional)

Addressess potential applications of an AOP to support regulatory decision-making.This may include, for example, possible utility for test guideline development or refinement, development of integrated testing and assessment approaches, development of (Q)SARs / or chemical profilers to facilitate the grouping of chemicals for subsequent read-across, screening level hazard assessments or even risk assessment. More help

References

List of the literature that was cited for this AOP. More help
