Decreased Sodium/Potassium ATPase activity leads to Heart failure

Short name
A name that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
Decreased Na/K ATPase activity leads to Heart failure
The current version of the Developer's Handbook will be automatically populated into the Handbook Version field when a new AOP page is created.Authors have the option to switch to a newer (but not older) Handbook version any time thereafter. More help
Handbook Version v2.7

Graphical Representation

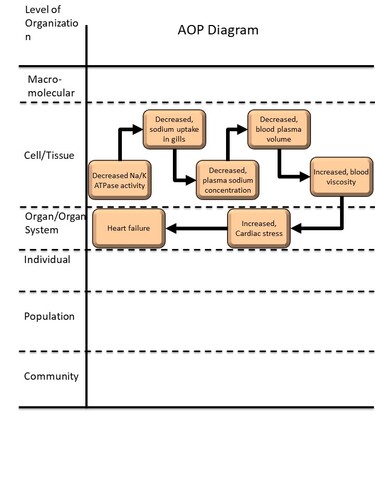

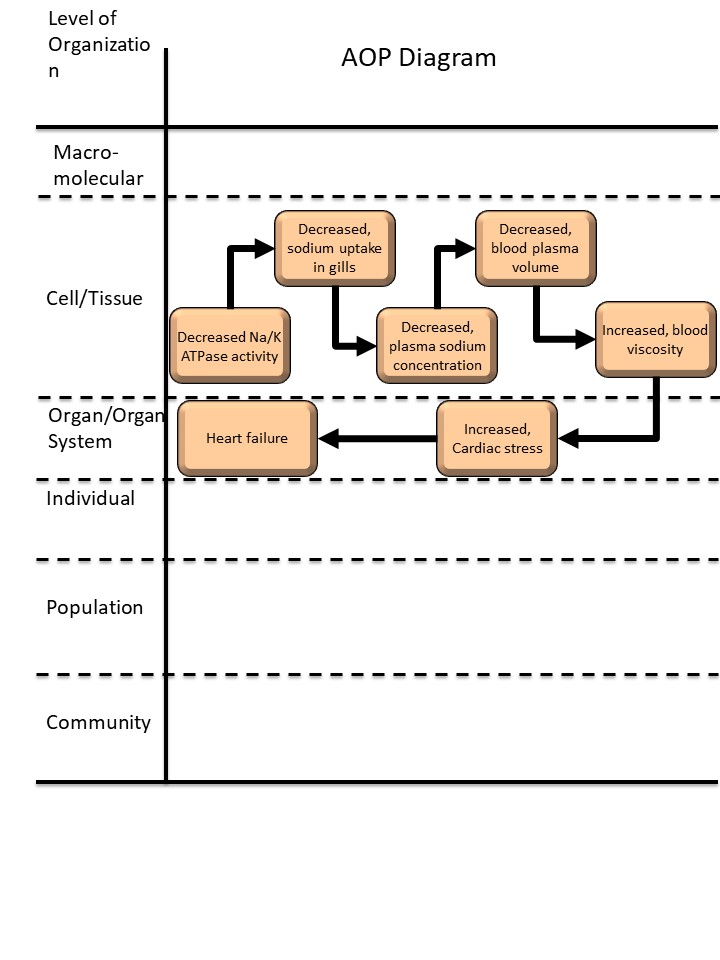

A graphical representation of the AOP.This graphic should list all KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs. More help
