Aop: 42

Title

Each AOP should be given a descriptive title that takes the form “MIE leading to AO”. For example, “Aromatase inhibition [MIE] leading to reproductive dysfunction [AO]” or “Thyroperoxidase inhibition [MIE] leading to decreased cognitive function [AO]”. In cases where the MIE is unknown or undefined, the earliest known KE in the chain (i.e., furthest upstream) should be used in lieu of the MIE and it should be made clear that the stated event is a KE and not the MIE. More help

Inhibition of Thyroperoxidase and Subsequent Adverse Neurodevelopmental Outcomes in Mammals

Short name
A short name should also be provided that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
TPO Inhibition and Altered Neurodevelopment

Graphical Representation

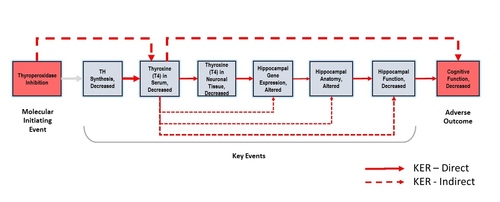

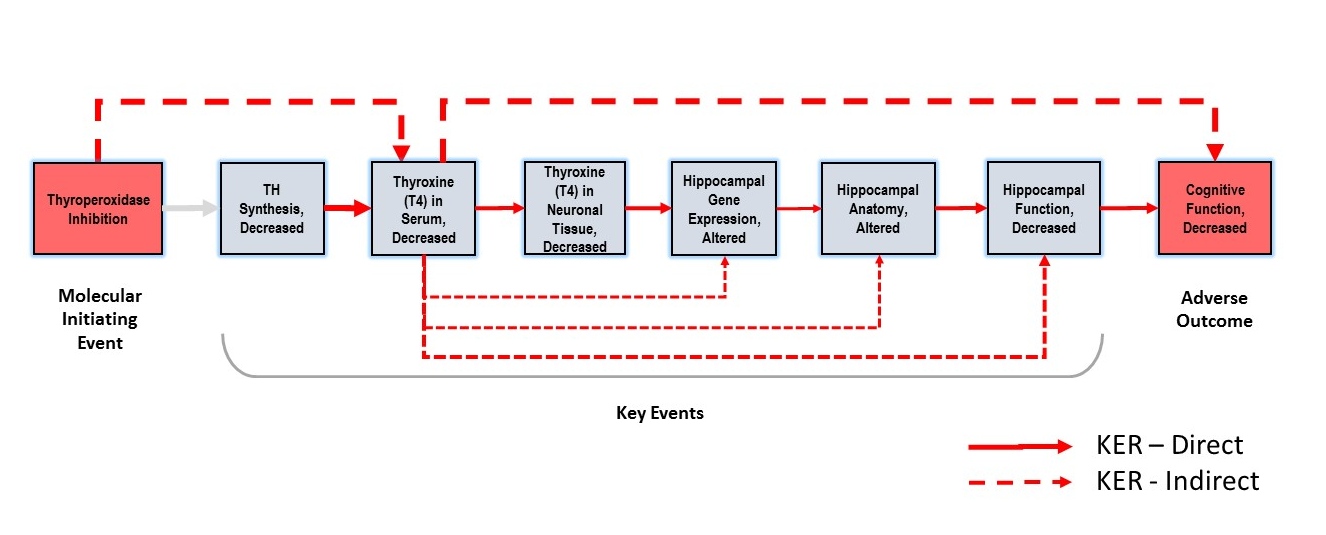

A graphical summary of the AOP listing all the KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs should be provided. This is easily achieved using the standard box and arrow AOP diagram (see this page for example). The graphical summary is prepared and uploaded by the user (templates are available) and is often included as part of the proposal when AOP development projects are submitted to the OECD AOP Development Workplan. The graphical representation or AOP diagram provides a useful and concise overview of the KEs that are included in the AOP, and the sequence in which they are linked together. This can aid both the process of development, as well as review and use of the AOP (for more information please see page 19 of the Users' Handbook).If you already have a graphical representation of your AOP in electronic format, simple save it in a standard image format (e.g. jpeg, png) then click ‘Choose File’ under the “Graphical Representation” heading, which is part of the Summary of the AOP section, to select the file that you have just edited. Files must be in jpeg, jpg, gif, png, or bmp format. Click ‘Upload’ to upload the file. You should see the AOP page with the image displayed under the “Graphical Representation” heading. To remove a graphical representation file, click 'Remove' and then click 'OK.'  Your graphic should no longer be displayed on the AOP page. If you do not have a graphical representation of your AOP in electronic format, a template is available to assist you.  Under “Summary of the AOP”, under the “Graphical Representation” heading click on the link “Click to download template for graphical representation.” A Powerpoint template file should download via the default download mechanism for your browser. Click to open this file; it contains a Powerpoint template for an AOP diagram and instructions for editing and saving the diagram. Be sure to save the diagram as jpeg, jpg, gif, png, or bmp format. Once the diagram is edited to its final state, upload the image file as described above. More help

Authors

List the name and affiliation information of the individual(s)/organisation(s) that created/developed the AOP. In the context of the OECD AOP Development Workplan, this would typically be the individuals and organisation that submitted an AOP development proposal to the EAGMST. Significant contributors to the AOP should also be listed. A corresponding author with contact information may be provided here. This author does not need an account on the AOP-KB and can be distinct from the point of contact below. The list of authors will be included in any snapshot made from an AOP. More help

Kevin M. Crofton, R3Fellows LLC, Durham, NC USA <croftonwork@outlook.com> <orcid.org/0000-0003-1749-9971>

Mary Gilbert, National Health and Environmental Effects Research Laboratory, US EPA, RTP, NC USA <gilbert.mary@epa.gov>

Katie Paul Friedman, National Center for Computational Toxicology, US EPA, RTP, NC USA <paul-friedman.katie@epa.gov>

Barbara Demeneix, UMR MNHN/CNRS 7221 Evolution of Endocrine Regulations, National History Museum, Paris, France <bdem@mnhn.fr>

Mary Sue Marty, Toxicol. Environ. Res. Consult, Dow Chemical Company, Midland, Michigan; <mmarty@dow.com>

R. Thomas Zoeller, Biology Department, University of Massachusetts, Amherst, MA <tzoeller@bio.umass.edu>

Point of Contact

Indicate the point of contact for the AOP-KB entry itself. This person is responsible for managing the AOP entry in the AOP-KB and controls write access to the page by defining the contributors as described below. Clicking on the name will allow any wiki user to correspond with the point of contact via the email address associated with their user profile in the AOP-KB. This person can be the same as the corresponding author listed in the authors section but isn’t required to be. In cases where the individuals are different, the corresponding author would be the appropriate person to contact for scientific issues whereas the point of contact would be the appropriate person to contact about technical issues with the AOP-KB entry itself. Corresponding authors and the point of contact are encouraged to monitor comments on their AOPs and develop or coordinate responses as appropriate.  More help
Kevin Crofton   (email point of contact)

Contributors

List user names of all  authors contributing to or revising pages in the AOP-KB that are linked to the AOP description. This information is mainly used to control write access to the AOP page and is controlled by the Point of Contact.  More help
  • Kevin Crofton
  • Mary Gilbert
  • R. Thomas Zoeller
  • Katie Paul Friedman
  • Barbara Demeneix

Status

The status section is used to provide AOP-KB users with information concerning how actively the AOP page is being developed, what type of use or input the authors feel comfortable with given the current level of development, and whether it is part of the OECD AOP Development Workplan and has been reviewed and/or endorsed. “Author Status” is an author defined field that is designated by selecting one of several options from a drop-down menu (Table 3). The “Author Status” field should be changed by the point of contact, as appropriate, as AOP development proceeds. See page 22 of the User Handbook for definitions of selection options. More help
Author status OECD status OECD project SAAOP status
Open for citation & comment WPHA/WNT Endorsed 1.10 Included in OECD Work Plan
This AOP was last modified on June 04, 2021 11:03
The date the AOP was last modified is automatically tracked by the AOP-KB. The date modified field can be used to evaluate how actively the page is under development and how recently the version within the AOP-Wiki has been updated compared to any snapshots that were generated. More help

Revision dates for related pages

Page Revision Date/Time
Thyroperoxidase, Inhibition September 08, 2021 09:28
Thyroid hormone synthesis, Decreased September 08, 2021 09:36
Thyroxine (T4) in serum, Decreased September 08, 2021 09:34
Thyroxine (T4) in neuronal tissue, Decreased April 04, 2019 09:13
Cognitive Function, Decreased August 09, 2018 11:55
Hippocampal gene expression, Altered August 11, 2018 09:26
Hippocampal anatomy, Altered August 11, 2018 09:36
Hippocampal Physiology, Altered August 11, 2018 09:41
Thyroperoxidase, Inhibition leads to TH synthesis, Decreased September 08, 2021 09:27
TH synthesis, Decreased leads to T4 in serum, Decreased October 14, 2021 08:38
Thyroperoxidase, Inhibition leads to T4 in serum, Decreased September 08, 2021 09:52
T4 in serum, Decreased leads to T4 in neuronal tissue, Decreased April 04, 2019 10:50
T4 in neuronal tissue, Decreased leads to Hippocampal gene expression, Altered August 11, 2018 19:18
Hippocampal gene expression, Altered leads to Hippocampal anatomy, Altered August 11, 2018 19:05
Hippocampal anatomy, Altered leads to Hippocampal Physiology, Altered August 11, 2018 19:21
Hippocampal Physiology, Altered leads to Cognitive Function, Decreased August 11, 2018 19:24
T4 in serum, Decreased leads to Hippocampal gene expression, Altered August 11, 2018 19:40
T4 in serum, Decreased leads to Hippocampal anatomy, Altered August 11, 2018 19:34
T4 in serum, Decreased leads to Hippocampal Physiology, Altered August 11, 2018 19:44
T4 in serum, Decreased leads to Cognitive Function, Decreased August 11, 2018 19:44
Methimazole November 29, 2016 18:42
Propylthiouracil November 29, 2016 18:42

Abstract

In the abstract section, authors should provide a concise and informative summation of the AOP under development that can stand-alone from the AOP page. Abstracts should typically be 200-400 words in length (similar to an abstract for a journal article). Suggested content for the abstract includes the following: The background/purpose for initiation of the AOP’s development (if there was a specific intent) A brief description of the MIE, AO, and/or major KEs that define the pathway A short summation of the overall WoE supporting the AOP and identification of major knowledge gaps (if any) If a brief statement about how the AOP may be applied (optional). The aim is to capture the highlights of the AOP and its potential scientific and regulatory relevance More help

This AOP describes one adverse outcome that may result from the inhibition of thyroperoxidase (TPO) during mammalian development. Chemical inhibition of TPO, the molecular-initiating event (MIE), results in decreased thyroid hormone (TH) synthesis, and subsequent reduction in circulating concentrations of THs. THs are essential for normal human brain development, both prenatally and postnatally, modulating genes critical for a normal neuroanatomical development, with subsequent effects on neurophysiology, and finally neurological function. Therefore, chemicals that interfere with TH synthesis have the potential to cause TH insufficiency that may result in adverse neurodevelopmental effects in offspring. Herein, we discuss the implications of developmental TPO inhibition for hippocampal anatomy, function, and ultimately neural function controlled by the hippocampus. The biochemistry of TPO and its essentiality for TH synthesis is well known across species. The hippocampus is known to be critically involved in cognitive, emotional, and memory function. The adverse consequences of TH insufficiency depend both on severity and developmental timing, indicating that exposure to TPO inhibitors may produce different effects at different developmental windows of exposure. It is important to note that thyroid stimulating hormone (TSH) is not a KE in this AOP. While TSH may play a role in feedback-driven compensatory processes, it is not directly involved in brain development. The overall weight of evidence for this AOP is strong. Gaps in our understanding include the relationship of TH-dependent gene expression and complexities of brain development. Although quantitative information at all levels of KERs is limited a number of applications of this AOP have been identified.

Background (optional)

This optional subsection should be used to provide background information for AOP reviewers and users that is considered helpful in understanding the biology underlying the AOP and the motivation for its development. The background should NOT provide an overview of the AOP, its KEs or KERs, which are captured in more detail below. Examples of potential uses of the optional background section are listed on pages 24-25 of the User Handbook. More help

This AOP was originally started on the Chemical Mode of Action WIKI sponsored by WHO/IPCS. The MOA was originally described and published by Zoeller and Crofton (Crit Rev Toxicol 2005). Thanks to the following contributors whose work on the MOA-WIKI fostered further development on the AOP wiki: Michelle Embry, Richard Judson, Vicki Dellarco, Chihae Yang, Kevin Crofton.

Zoeller RT, Crofton KM.   Mode of action: developmental thyroid hormone insufficiency--neurological abnormalities resulting from exposure to propylthiouracil. Crit Rev Toxicol. 2005 Oct-Nov;35(8-9):771-81

Summary of the AOP

This section is for information that describes the overall AOP. The information described in section 1 is entered on the upper portion of an AOP page within the AOP-Wiki. This is where some background information may be provided, the structure of the AOP is described, and the KEs and KERs are listed. More help

Events:

Molecular Initiating Events (MIE)
An MIE is a specialised KE that represents the beginning (point of interaction between a stressor and the biological system) of an AOP. More help
Key Events (KE)
This table summarises all of the KEs of the AOP. This table is populated in the AOP-Wiki as KEs are added to the AOP. Each table entry acts as a link to the individual KE description page.  More help
Adverse Outcomes (AO)
An AO is a specialised KE that represents the end (an adverse outcome of regulatory significance) of an AOP.  More help
Sequence Type Event ID Title Short name
1 MIE 279 Thyroperoxidase, Inhibition Thyroperoxidase, Inhibition
2 KE 277 Thyroid hormone synthesis, Decreased TH synthesis, Decreased
3 KE 281 Thyroxine (T4) in serum, Decreased T4 in serum, Decreased
4 KE 280 Thyroxine (T4) in neuronal tissue, Decreased T4 in neuronal tissue, Decreased
5 KE 756 Hippocampal gene expression, Altered Hippocampal gene expression, Altered
6 KE 757 Hippocampal anatomy, Altered Hippocampal anatomy, Altered
7 KE 758 Hippocampal Physiology, Altered Hippocampal Physiology, Altered
8 AO 402 Cognitive Function, Decreased Cognitive Function, Decreased

Relationships Between Two Key Events (Including MIEs and AOs)

This table summarises all of the KERs of the AOP and is populated in the AOP-Wiki as KERs are added to the AOP. Each table entry acts as a link to the individual KER description page.To add a key event relationship click on either Add relationship: events adjacent in sequence or Add relationship: events non-adjacent in sequence.For example, if the intended sequence of KEs for the AOP is [KE1 &gt; KE2 &gt; KE3 &gt; KE4]; relationships between KE1 and KE2; KE2 and KE3; and KE3 and KE4 would be defined using the add relationship: events adjacent in sequence button.  Relationships between KE1 and KE3; KE2 and KE4; or KE1 and KE4, for example, should be created using the add relationship: events non-adjacent button. This helps to both organize the table with regard to which KERs define the main sequence of KEs and those that provide additional supporting evidence and aids computational analysis of AOP networks, where non-adjacent KERs can result in artifacts (see Villeneuve et al. 2018; DOI: 10.1002/etc.4124).After clicking either option, the user will be brought to a new page entitled ‘Add Relationship to AOP.’ To create a new relationship, select an upstream event and a downstream event from the drop down menus. The KER will automatically be designated as either adjacent or non-adjacent depending on the button selected. The fields “Evidence” and “Quantitative understanding” can be selected from the drop-down options at the time of creation of the relationship, or can be added later. See the Users Handbook, page 52 (Assess Evidence Supporting All KERs for guiding questions, etc.).  Click ‘Create [adjacent/non-adjacent] relationship.’  The new relationship should be listed on the AOP page under the heading “Relationships Between Two Key Events (Including MIEs and AOs)”. To edit a key event relationship, click ‘Edit’ next to the name of the relationship you wish to edit. The user will be directed to an Editing Relationship page where they can edit the Evidence, and Quantitative Understanding fields using the drop down menus. Once finished editing, click ‘Update [adjacent/non-adjacent] relationship’ to update these fields and return to the AOP page.To remove a key event relationship to an AOP page, under Summary of the AOP, next to “Relationships Between Two Key Events (Including MIEs and AOs)” click ‘Remove’ The relationship should no longer be listed on the AOP page under the heading “Relationships Between Two Key Events (Including MIEs and AOs)”. More help

Network View

The AOP-Wiki automatically generates a network view of the AOP. This network graphic is based on the information provided in the MIE, KEs, AO, KERs and WoE summary tables. The width of the edges representing the KERs is determined by its WoE confidence level, with thicker lines representing higher degrees of confidence. This network view also shows which KEs are shared with other AOPs. More help

Stressors

The stressor field is a structured data field that can be used to annotate an AOP with standardised terms identifying stressors known to trigger the MIE/AOP. Most often these are chemical names selected from established chemical ontologies. However, depending on the information available, this could also refer to chemical categories (i.e., groups of chemicals with defined structural features known to trigger the MIE). It can also include non-chemical stressors such as genetic or environmental factors. Although AOPs themselves are not chemical or stressor-specific, linking to stressor terms known to be relevant to different AOPs can aid users in searching for AOPs that may be relevant to a given stressor. More help
Name Evidence Term
Methimazole High
Propylthiouracil High

Life Stage Applicability

Identify the life stage for which the KE is known to be applicable. More help
Life stage Evidence
During brain development High
Development High

Taxonomic Applicability

Latin or common names of a species or broader taxonomic grouping (e.g., class, order, family) can be selected. In many cases, individual species identified in these structured fields will be those for which the strongest evidence used in constructing the AOP was available in relation to this KE. More help
Term Scientific Term Evidence Link
human Homo sapiens High NCBI
rat Rattus norvegicus High NCBI
mouse Mus musculus Moderate NCBI

Sex Applicability

The authors must select from one of the following: Male, female, mixed, asexual, third gender, hermaphrodite, or unspecific. More help
Sex Evidence
Male High
Female High

Overall Assessment of the AOP

This section addresses the relevant biological domain of applicability (i.e., in terms of taxa, sex, life stage, etc.) and WoE for the overall AOP as a basis to consider appropriate regulatory application (e.g., priority setting, testing strategies or risk assessment). The goal of the overall assessment is to provide a high level synthesis and overview of the relative confidence in the AOP and where the significant gaps or weaknesses are (if they exist). Users or readers can drill down into the finer details captured in the KE and KER descriptions, and/or associated summary tables, as appropriate to their needs.Assessment of the AOP is organised into a number of steps. Guidance on pages 59-62 of the User Handbook is available to facilitate assignment of categories of high, moderate, or low confidence for each consideration. While it is not necessary to repeat lengthy text that appears elsewhere in the AOP description (or related KE and KER descriptions), a brief explanation or rationale for the selection of high, moderate, or low confidence should be made. More help
Attached file: Tpo aop summary tables 20180602

The following summary tables for:

1.Support for Biological Plausibility of KERS

2. Support for Essentiality of KEs

3. Empirical Support for KERs

Can be downloaded at:  https://aopwiki.org/system/dragonfly/production/2018/08/10/46w2o2kkl4_TPO_AOP_Summary_Tables_20180602.pdf

Domain of Applicability

The relevant biological domain(s) of applicability in terms of sex, life-stage, taxa, and other aspects of biological context are defined in this section. Biological domain of applicability is informed by the “Description” and “Biological Domain of Applicability” sections of each KE and KER description (see sections 2G and 3E for details). In essence the taxa/life-stage/sex applicability is defined based on the groups of organisms for which the measurements represented by the KEs can feasibly be measured and the functional and regulatory relationships represented by the KERs are operative.The relevant biological domain of applicability of the AOP as a whole will nearly always be defined based on the most narrowly restricted of its KEs and KERs. For example, if most of the KEs apply to either sex, but one is relevant to females only, the biological domain of applicability of the AOP as a whole would be limited to females. While much of the detail defining the domain of applicability may be found in the individual KE and KER descriptions, the rationale for defining the relevant biological domain of applicability of the overall AOP should be briefly summarised on the AOP page. More help
  • Chemicals: This AOP applies to a wide range of chemicals structures that inhibit TPO either in vivo or in vitro.  Well recognized positive controls include propylthiouracil (PTU) and methimazole (MMI).  There are 100s of other chemicals known to inhibit TPO in vitro (e.g., Paul-Friedman et al., 2016).
  • Sex: This AOP applies to males and females. Disruption of thyroid hormone regulation during fetal and early postnatal develop, as well as the subsequent adverse impacts on nervous system development are similar in both sexes. There are no compelling data to suggest sex differences in susceptibility to TH disruption mediated by inhibition of TPO during development.
  • Life stages: The relevant life stages for this AOP are fetal and early postnatal ages during critical windows of nervous system development where thyroid hormones guide normal development of the brain. There are clear windows of developmental susceptibility and different brain regions show distinct ontogenetic profiles for TH requirements. Distinct phenotypes have been described in both humans and animal models for different periods of TH insufficiency. The influence of maternal thyroid status prior to onset of fetal thyroid function is an important consideration. This AOP does not apply to adult life states.
  • Taxonomic: Based on the majority of the available evidence the taxonomic applicability domains of this AOP is mammals. Most evidence for this AOP has been gathered primarily from laboratory rodents and humans. However, there are supporting data from amphibians and birds for TPO inhibition leading to altered TH profiles. Due to the conserved nature of TH synthesis, transport, metabolism and transcriptional activity, this AOP is likely to be applicable to other classes of vertebrates where thyroid hormones drive development of the nervous system (e.g., birds, fish, reptiles). However, species-specific differences in development, ADME (adsorption, distribution, metabolism, and elimination), compensatory endocrine responses may influence the outcomes, particularly from a quantitative standpoint.

Essentiality of the Key Events

An important aspect of assessing an AOP is evaluating the essentiality of its KEs. The essentiality of KEs can only be assessed relative to the impact of manipulation of a given KE (e.g., experimentally blocking or exacerbating the event) on the downstream sequence of KEs defined for the AOP. Consequently evidence supporting essentiality is assembled on the AOP page, rather than on the independent KE pages that are meant to stand-alone as modular units without reference to other KEs in the sequence.The nature of experimental evidence that is relevant to assessing essentiality relates to the impact on downstream KEs and the AO if upstream KEs are prevented or modified. This includes: Direct evidence: directly measured experimental support that blocking or preventing a KE prevents or impacts downstream KEs in the pathway in the expected fashion. Indirect evidence: evidence that modulation or attenuation in the magnitude of impact on a specific KE (increased effect or decreased effect) is associated with corresponding changes (increases or decreases) in the magnitude or frequency of one or more downstream KEs.When assembling the support for essentiality of the KEs, authors should organise relevant data in a tabular format. The objective is to summarise briefly the nature and numbers of investigations in which the essentiality of KEs has been experimentally explored either directly or indirectly. See pages 50-51 in the User Handbook for further definitions and clarifications.  More help

It is widely accepted that each of the key events is essential.

  • Molecular Initiating Event: The molecular initiating event, i.e. inhibition of TPO, is the essential event to initiate this AOP, as supported by in vitro and in vivo evidence. TPO is the only enzyme capable of de novo TH synthesis (Taurog, 2005). TPO is classically defined as a complex enzyme with multiple catalytic cycles capable of iodinating multiple species (Divi et al., 1997).  However, in the context of this AOP we are using TPO inhibiton not in the classical sense, but instead to refer to the results derived from the assays commonly used assays to investigate environmental chemicals (e.g., guiacol oxidation). A number of studies have demonstrated that cessation of exposure is known to result in a return to normal levels of TH synthesis and circulatory hormone levels (Cooper et al., 1983). Many in vivo and in vitro studies consistently demonstrate enzyme inhibition with similar chemicals for multiple species (Taurog, 1999; Paul et al., 2013; Vickers et al., 2012).
  • Thyroid hormone synthesis, Decreased.  A number of studies have demonstrated a correlation between TPO activity and decreased TH synthesis (e.g., Vickers et al., 2012). Thyroid gland T4 concentrations, as well as serum TH, are decreased in response to thyroidectomy and recover when in-vitro derived follicles are grafted in athyroid mice (Antonica et al., 2012).
  • Thyroxine (T4) in serum, Decreased. Inhibition of TPO is widely accepted as resulting in decreased TH synthesis in the thyroid gland, which results in decreased serum T4 concentration (Taurog, 2005). Stop/recovery experiments demonstrate recovery of serum thyroxine concentrations due to cessation of developmental exposure to chemical stressors (e.g., Crofton et al., 2000), with similar findings in adult rats (Cooper et al.,1984). Studies in adult animals show a similar recovery after cessation of dosing (e.g., Hill et al., 1998).
  • Thyroxine (T4) in neuronal tissue, decreased:  Mulitple studies have demonstrated that fetal brain TH levels, previously decreased by maternal exposure to TPO inhibitors or thyroidectomy, recovered following maternal dosing with T4 (e.g., Calvo et al., 1990).  In addition, upregulation of deiodinase has been shown compensate for some loss of neuronal T3 (Escobar-Morreale et al., 1997). Indirect evidence shows that T4 replacement that bring circulating T4 concentration back to normal, leads to recovery of brain TH and prevents downstream effects including alterations in gene expression in the developing brain.
  • Hippocampal Gene Expression, Altered: It is well established specific genomic pathways underlie the progression of a number of neurodevelopmental processes in the hippocampus. There is some evidence from ex vivo studies that administration of growth factors will reverse the hippocampal dysplasia seen in Jacob/Nsfm knockout mice (Spilker et al., 2016). Less is known about the impact of hormone replacement on TH-responsive gene expression and the qualitative and quantitative relationships between altered TH-dependent gene expression in this brain region and altered hippocampal cytoarchitectural anatomy.
  • Hippocampal anatomy, altered: It is well accepted that normal hippocampal anatomy is critical for hippocampal physiological function, and that alterations in anatomy lead to altered neuronal activity in the hippocampus (Lee et al., 2015; Grant et al., 1992; Spilker et al., 2016).
  • Hippocampal physiology, altered: It is a well-accepted assertion that hippocampal synaptic integrity and neuronal plasticity are essential for spatial information processing in animals and spatial and episodic memory in humans. However, other brain regions also can influence these complex behaviors. Limited data from studies in BDNF knockout animals demonstrate that deficits in hippocampal synaptic transmission and plasticity, and downstream behaviors can be rescued with recombinant BDNF (Aarse et al., 2016; Andero et al., 2014).
  • Cognitive function, decreased: It is a well-known fact that TH are critical for normal nervous system development (Williams et al., 2008). And this includes development of the hippocampus which plays a major role in spatial, temporal, and contextual memory. Indeed, most developed countries check for childhood hypothyroidism at birth to immediately begin replacement therapy. This has been shown to alleviate most adverse impacts of hypothyroidism in congenitally hypothyroid children (Derksen-Lubsen and Verkerk 1996; Zoeller and Rovet, 2004). The essentiality of the relationship between decreased TH levels and this adverse outcome is well accepted. Decreased cognitive function specific to the hippocampal region are particularly associated with decrements in memory and learning domains of cognition.

Evidence Assessment

The biological plausibility, empirical support, and quantitative understanding from each KER in an AOP are assessed together.  Biological plausibility of each of the KERs in the AOP is the most influential consideration in assessing WoE or degree of confidence in an overall hypothesised AOP for potential regulatory application (Meek et al., 2014; 2014a). Empirical support entails consideration of experimental data in terms of the associations between KEs – namely dose-response concordance and temporal relationships between and across multiple KEs. It is examined most often in studies of dose-response/incidence and temporal relationships for stressors that impact the pathway. While less influential than biological plausibility of the KERs and essentiality of the KEs, empirical support can increase confidence in the relationships included in an AOP. For clarification on how to rate the given empirical support for a KER, as well as examples, see pages 53- 55 of the User Handbook.  More help

Biological plausibility: Biological plausibility refers to the structural or functional relationship between the key events based on our fundamental understanding of "normal biology". In general, the biological plausibility and coherence linking TPO inhibition through decreases in circulating concentrations of THs, to adverse impacts in the developing hippocampus and subsequent cognitive behaviors is very solid. That thyroidal TPO is the sole enzyme capable of de novo TH synthesis and the only source of circulating T4, is beyond doubt.  It is also widely accepted that circulating T4 is the only source of nervous system T4 that is converted to the biological active T3.  The direct link between reduced brain TH concentrations and reduced expression of TR regulated genes is supported by a plethora of literature. However, the direct connection between exactly which genes are regulated and at which developmental periods is not as clear.  Similarly, the precise relationships between gene expression and hippocampal anatomy is not completely known. A lot of the work in this area has been done for a limited number of genes and specific hippocampal anatomical anomalies that are known to alter both the physiological and function of the hippocampus, and subsequent cognitive function.  That said, it is widely acknowledged that abnormal TH levels during fetal and early development lead to adverse hippocampally-driven cognitive function in humans and laboratory animals.

  1. The biochemistry of TPO and its essentiality for TH synthesis is well known across species, with the evidence across vertebrate species, including amphibians, birds, rodents, pigs, and humans.
  2. The relationship between TH synthesis and serum TH concentrations is well accepted scientific dogma.  There are no other pathways in mammals that will maintain homeostatic serum TH concentrations.
  3. Serum is the only source of thyroxine for the brain.  In the brain, deiodinases convert T4 to T3, the more biologically active moiety. Some serum T3 may also contribute to total brain T3.  These are well accepted scientific facts.
  4. It is well established that T3 binding to thyroid receptors controls critical transcriptional and translational processes in the developing brain, including the hippocampus. Lack of TH results in abnormal development of the structure and physiological function in the hippocampus.  What is not well known is exactly which genes, at what fetal and postnatal ages, are responsible for the development of the complexity of hippocampal anatomy and function.
  5. Lastly, the biological plausibility that changes in brain structure and physiology, and specifically aberrations in the hippocampus, lead to abnormal cognitive function is well accepted.

Concordance of dose-response relationships:

There are a large number of studies that include correlative evidence between exposure to TPO inhibitors and downstream KEs, as well as the AO.  In addition, there are also studies with dose-response relationships that indirectly link KEs, especially from serum TH concentrations to downstream KEs and the AO.  There is a more limited set of studies in which two directly linked key events were considered in the same study following exposure to TPO inhibitors or other stressors (e.g., thyroidectomy, gene knockouts).  These later studies, while providing critical data for causatively linking the key events, provide less information on the concordance of the dose-response relationship, especially for the latter KEs.  For earlier KEs, Zoeller and Crofton (2005) provide good dose response concordance for data derived from the TPO inhibitor PTU. While limited in number, in general these studies provide moderate confidence that downstream key events occurred at concentrations equal to or greater than those directly upstream. In addition, there are several quantitiative models that, based on empirical data, can predict dose relationships between many of the early KEs up to and including serum hormone concentrations (e.g., Degon et al., 2008; Fisher et al 2013; Ekerot et al., 2012; Leonard et al., 2016). A more recent model predicts neuroanatomical anomalies based on serum and brain T4 concentrations (Hassan et al., 2017).

All this information taken together, provide strong concordance of the dose-relationships for all KEs.

Temporal concordance among the key events and adverse effect: There are two aspects of the temporal concordance of the key events in a developmental AOP.  The first is the temporal concordance refers to the degree to which the data support the hypothesized sequence of the key events; i.e., the effect on KE1 is observed before the effect on KE2, which is observed before the effect on KE3, and so on. This translates to the temporal concordance of the AOP from TPO inhibition to decreased TH synthesis, reduced circulating TH concentrations, decreased nervous system TH, altered gene expression and anatomy in the hippocampus, and subsequent alterations in hippocampal physiology that result in decrements in cognition. The strength of the temporal concordance between these KEs varies from weak to strong (see Appendix Tables and individual KEs for detailed information). There is strong evidence for the early direct KEs from both empirical and modeling studies, and for many of the later KEs via the indirect KERs. The temporal concordance between TPO inhibition and TH synthesis is clearly evidenced by data from ex vivo and in vitro studies, as well as computational models (Leonard et al., 2016; Degon et al., 2008; Zoeller and Crofton, 2005; Cooper et al., 1983; Goldey et al. 1985; Christenson et al 1995). Data supporting the temporal concordance for the later KEs, i.e., from serum TH to changes in hippocampal physiology are limited or lacking.

The second aspect of temporal concordance for developmental AOPs is evidenced by demonstrations for critical windows of development where key events are perturbed, for which the effects are permanent and found during early development and throughout adulthood (Seed et al., 2005).  It is a well-recognized fact that there are critical developmental windows for disruption of serum THs that result in subsequent alterations in all downstream KEs including the AO cognitive function later in development and adulthood. Indeed, the literature is replete with studies that demonstrate critical windows of susceptibity to thyroid disruption and adverse impacts on the developing brain. For reviews see: Morreale de Escobar (2001); Howdshell (2002). There are also many studies in which downstream direct and indirect consequences of TPO inhibition and other stressors (e.g., iodine deficiency, thyroidectomy, gene knockouts) have been ameliorated by administration of thyroxine. For example, based on the indirect link between serum TH hormone concentrations and decrements in hippocampally-mediated spatial behaviors, it commonly accepted dogma that there are critical windows of development in which exposure and hormone reduction lead to permanent effect on cognitive functions. Indeed, most developed countries have mandatory screening for congenital hypothyroidism, so that hormone replacement therapy can begin immediately, and thus prevent declines in IQ in childhood. (e.g., the temporal concordance between the MIE, KEs and AO.  Overall, all available data are consistent with the temporal concordance of this AOP.

Consistency:  There is no data that we are aware of that does not support the pattern of key events described in this AOP.  A limited number of studies with measurements of directly linked KEs within the same study, the fact that the majority of the data was generated with single-stressor studies (e.g., one chemical dose, knockout, or thyroidectomy), coupled with likely differences in sensitivity of many of the measured endpoints (e.g., gene expression), make it difficult to determine quantitative consistency between studies. Nonetheless, the occurrence of the final AO, when upstream key events are observed is extremely consistent. It is also very important to note that the AO, alterations in cognitive function, is not likely to be specific solely to this AOP. Many of the key events included in this AOP overlap with AOPs linking other molecular initiating events to alterations in hippocampally-driven cognitive behaviors such as spatial learning in rats and IQ in humans.

Uncertainties, inconsistencies, and data gaps:

There are several areas of uncertainty and data gaps in the current AOP:

  • There is a lack of quantitative information for several the KERs. These gaps hamper development of quantitative models that will allow linkages between the MIE and AO. Quantitative models are needed to facilitate efficient use of data on ~1000 chemicals from in vitro TPO assays (e.g., Paul-Friedman et al., 2016) to predict potential adverse outcomes. Computational models are needed to describe relationships between serum and brain TH as a critical KER. With an additional metric of TH action in brain, this may be sufficient for application to computational prediction in the regulatory arena.  These gaps include:
    • Insufficient information exists to quantitatively link the degree of in vivo TPO inhibition required to elicit specific decrements in circulating T4 concentrations; Genistein is an example of where a very large degree of inhibition may be required to have an impact on serum TH;
    • There is a lack of data to quantitatively associate serum TH concentrations with TH concentrations in specific brain regions;
    • Presently TH-responsive gene expression in hippocampus has not been quantitatively linked to changes in hippocampal anatomy, hippocampal function, and subsequent adverse cognitive effects. Neither has this AOP considered the nongenomic actions of TH on cell signaling in brain.
  • There is limited available data that inform a quantitative relationship between in vitro and in vivo inhibition of TPO (but see Vickers et al., 2012).
  • Compensatory feedback systems are not included in this AOP. For example, it is well known that with chemicals that inhibit TPO (e.g., PTU) decrease circulating TH concentrations which activates the hypothalamic-pituitary feedback system (Capen, 1997). This leads to increased secretion of TSH, which upregulates TH synthesis in the thyroid gland (e.g., McCain, 1995; Capen, 1997; Hill et al., 1998). There is also compensation within the developing nervous system where low tissue T4 concentrations upregulates deiodinases in an attempt to maintain proper levels of T3 (e.g., Morse et al., 1996; Sharlin et al 2010). These and other compensatory systems are likely to be differentially active across different developmental ages and in different brain regions
  • Lastly, there is some uncertainty in the literature about the role of thyroid stimulating hormone (TSH) in thyroid hormone based adverse outcome pathways and the relevance of rodent data for humans.  It is clear that TSH is a key event in the AOP for rat thyroid follicular tumors (McCain, 1995; Hill et al., 1998) and this pathway is not deemed relevant to humans (Axelrad et al., 2005). However, it is critically important to note that the current AOP does not contain TSH as a KE.  This is because, while TSH may play a role in feedback-driven compensatory processes to maintain peripheral hormone concentrations, it is not directly involved in brain development. In this AOP, TSH may be used as a supporting biomarker for alterations in circulating THs, however, it is not a perfect surrogate.  There are also numerous examples of pharmaceutical and industrial chemicals that alter circulating THs in rats without any measurable change in TSH (NTP, 1990; O’Connor et al., 1998 2000; Liu et al., 1994; Zoeller et al., 2005; Morse et al., 1996; Goldey et al., 1995; Lau et al 2003; Schneider et al., 2011). In the absence of TSH changes, exposure to some of these chemicals do result in adverse neurological outcomes (e.g., Goldey and Crofton, 1998; Crofton, 2004; Zoeller et al., 2005; Cope et al., 2015). Therefore, stressor-induced changes in TH, not in TSH, are responsible for adverse neurological outcomes.

Quantitative Understanding

Some proof of concept examples to address the WoE considerations for AOPs quantitatively have recently been developed, based on the rank ordering of the relevant Bradford Hill considerations (i.e., biological plausibility, essentiality and empirical support) (Becker et al., 2017; Becker et al, 2015; Collier et al., 2016). Suggested quantitation of the various elements is expert derived, without collective consideration currently of appropriate reporting templates or formal expert engagement. Though not essential, developers may wish to assign comparative quantitative values to the extent of the supporting data based on the three critical Bradford Hill considerations for AOPs, as a basis to contribute to collective experience.Specific attention is also given to how precisely and accurately one can potentially predict an impact on KEdownstream based on some measurement of KEupstream. This is captured in the form of quantitative understanding calls for each KER. See pages 55-56 of the User Handbook for a review of quantitative understanding for KER's. More help

Assessment of quantitative understanding of the AOP:  Currently, there are quantitative models for the early KERs from TPO inhibiton to serum hormone concentrations, but none for later KERs.  And only one of these models the KERs during early development (Fisher et al., 2013). A recent study by Hassan et al. (2017) quantitatively linked PTU-induced TH synthesis declines in the dam and the fetus to decrements in serum and brain TH concentrations to a structural malformation in the postnatal brain. In this study, estimates of TPO inhibition were derived from glandular and serum PTU and TH concentrations. For the rest of the KERs in this AOP, there is a varying amount of data from dose-response studies that demonstrate increasing impact with increasing chemical dose for all the KEs, and the direct and indirect KERs. At present, the overall quantitative understanding of the AOP is insufficient to directly link a measure of chemical potency as a TPO inhibitor to a quantitative prediction of effect on cognitive function (e.g., IQ in humans, learning deficits in rodents). Empirical information on dose-response relationships for the intermediate KEs, currently unavailable, would inform a computational, predictive model for thyroid disruption via TPO inhibition.

Considerations for Potential Applications of the AOP (optional)

At their discretion, the developer may include in this section discussion of the potential applications of an AOP to support regulatory decision-making. This may include, for example, possible utility for test guideline development or refinement, development of integrated testing and assessment approaches, development of (Q)SARs / or chemical profilers to facilitate the grouping of chemicals for subsequent read-across, screening level hazard assessments or even risk assessment. While it is challenging to foresee all potential regulatory application of AOPs and any application will ultimately lie within the purview of regulatory agencies, potential applications may be apparent as the AOP is being developed, particularly if it was initiated with a particular application in mind. This optional section is intended to provide the developer with an opportunity to suggest potential regulatory applications and describe his or her rationale.To edit the “Considerations for Potential Applications of the AOP” section, on an AOP page, in the upper right hand menu, click ‘Edit.’ This brings you to a page entitled, “Editing AOP.” Scroll down to the “Considerations for Potential Applications of the AOP” section, where a text entry box allows you to submit text. In the upper right hand menu, click ‘Update AOP’ to save your changes and return to the AOP page or 'Update and continue' to continue editing AOP text sections.  The new text should appear under the “Considerations for Potential Applications of the AOP” section on the AOP page. More help
